Product Description

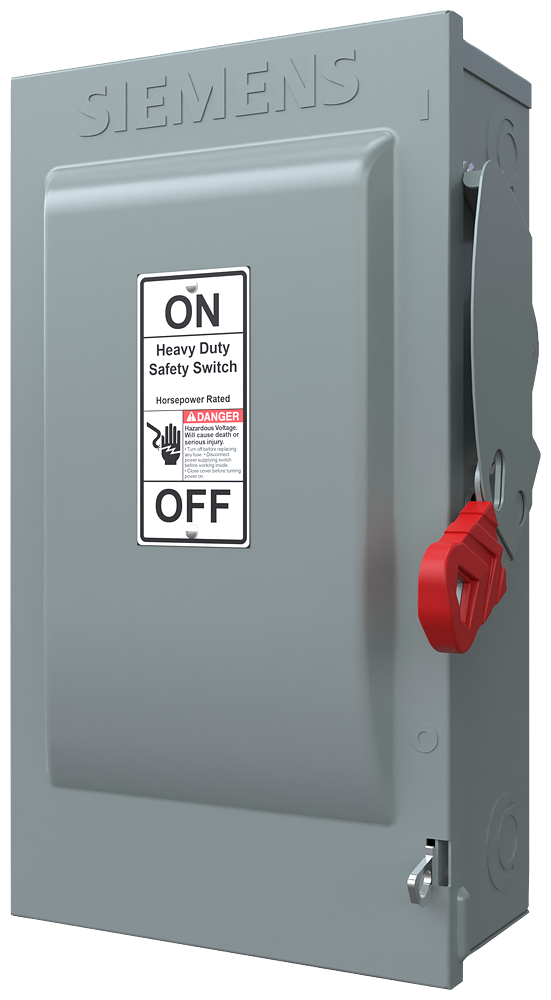

Siemens HF362N is a heavy duty fusible safety switch designed for low voltage circuit protection. This switch is capable of handling up to sixty amps and operates efficiently at voltages up to six hundred AC volts and two hundred fifty DC volts. The HF362N includes a three-pole configuration within a NEMA 1 enclosure suitable for indoor applications. The solid neutral feature enhances safety and reliability.
- Rated for 480 to 600 VAC and 250 to 600 VDC
- 60 Amp capacity with a three-pole fused connection
- Constructed for indoor environments with a surface mounting type
Product Highlights
The Siemens HF362N safety switch provides reliable operation for disconnecting service entrance loads. Its strong steel construction and NEMA 1 rating make it a durable choice for professionals.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: HF362N
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 60 A
-
Number of Poles: 3
-
Enclosure Type: NEMA 1
-
Dimensions: 16.62 inches (L) x 10.37 inches (W) x 8.67 inches (H)
-
Weight: 18 lbs
-
Material: Steel
-
Mounting Type: Surface
-
Operating Temperature: -29 degrees C
-
Operating Cycles: 10,000
