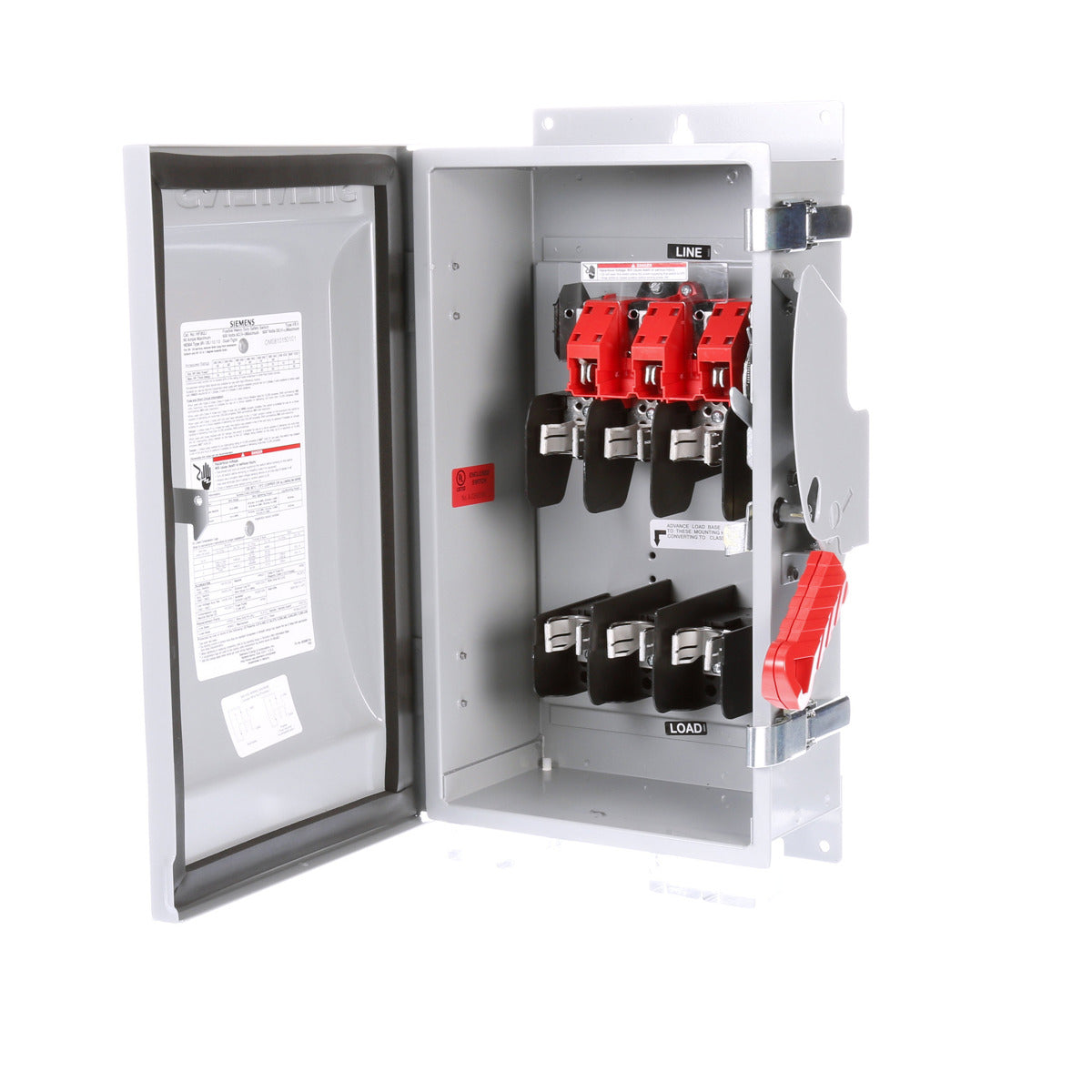

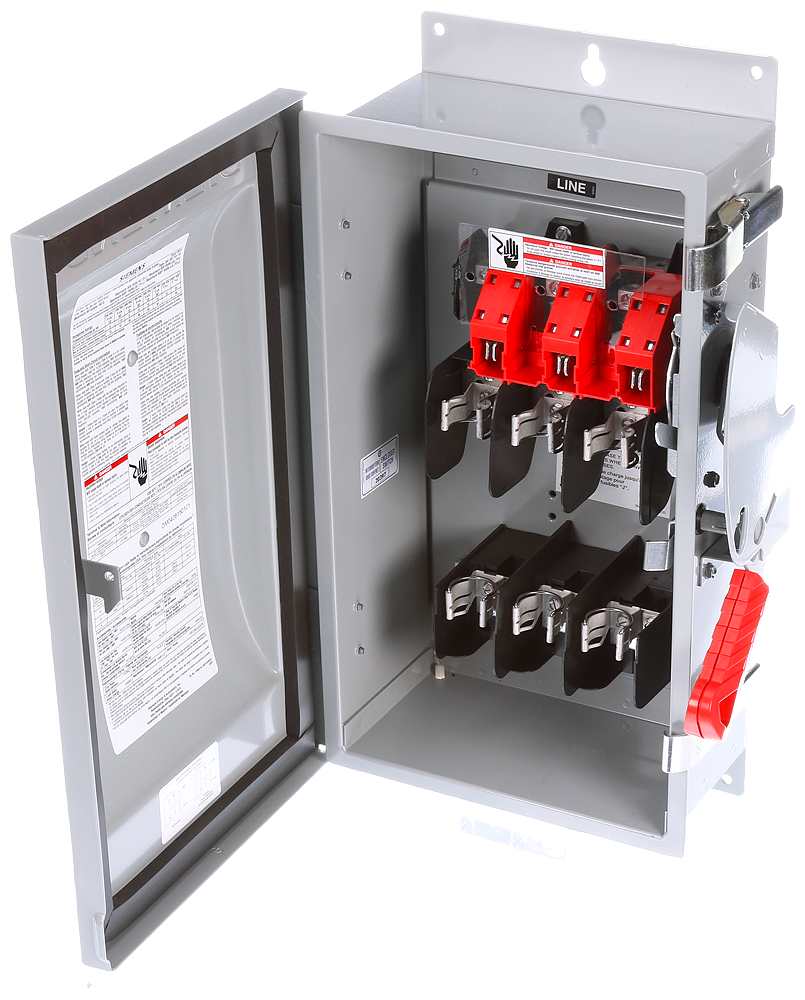

Siemens HF362J 480/600 VAC 250/600 VDC 60 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch

Product Description

The Siemens HF362J is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding industrial applications. This unit operates at a voltage rating of 600 VAC and supports an amperage of sixty. Its robust construction features a three-pole, three-wire configuration, making it a reliable choice for disconnecting loads and service entrances.

• Type 12 industrial enclosure for durability.
• Supports up to sixty amps for significant load handling.
• Rated for both AC and DC applications with flexible usage scenarios.

Product Highlights

This safety switch offers a single throw action, making it easy to operate. Its mechanical lugs facilitate secure wiring connections, ensuring safe electrical distribution.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF362J

Technical Specifications

• Catalog Number: HF362J
• Manufacturer: Siemens
• Width: 14.3 inches
• Height: 8.1 inches
• Length: 22.3 inches
• Weight: 22.3 lbs
• Voltage: 600 Volt
• Amperage: 60 Amp
• Material: Steel
• Enclosure: NEMA 12
• Frequency: 60 Hz
• Operating Cycles: 10,000
• Country of Origin: Mexico
• Ambient Temperature: -29 C
• Operating Temperature: -29 degrees C
