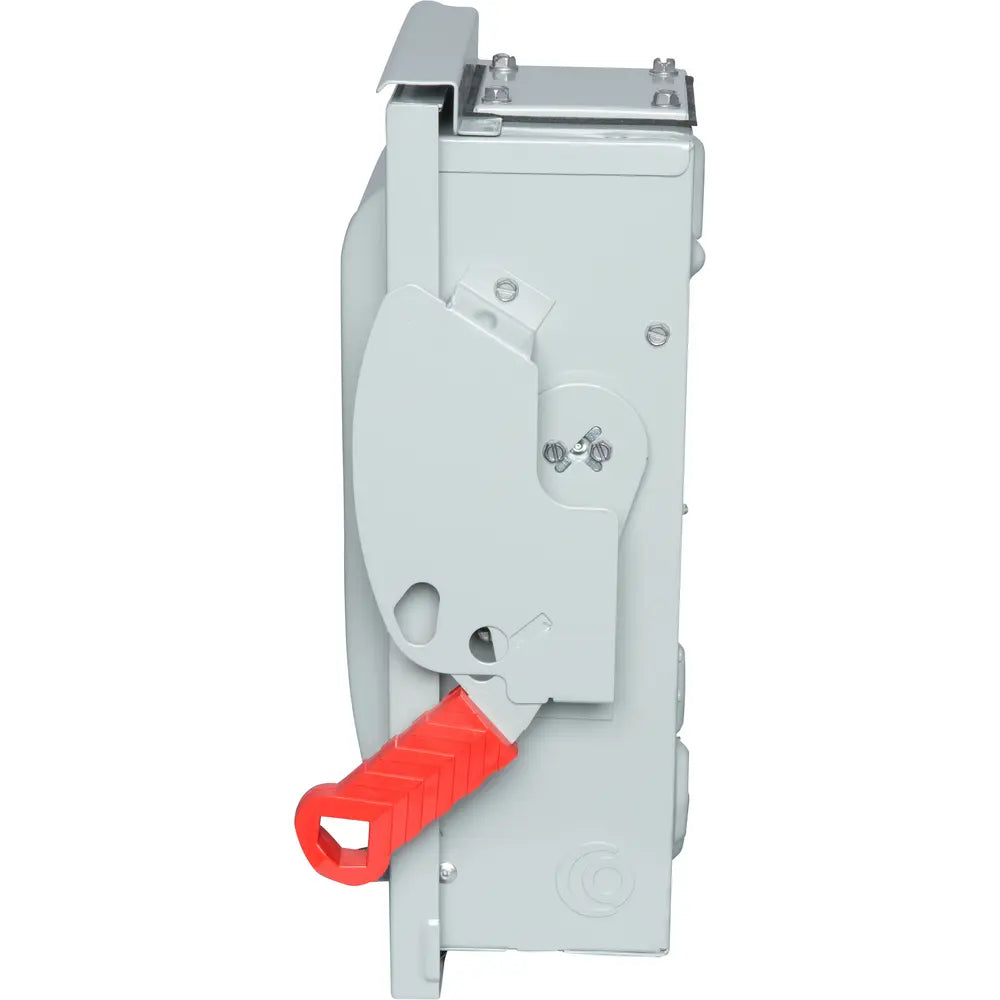

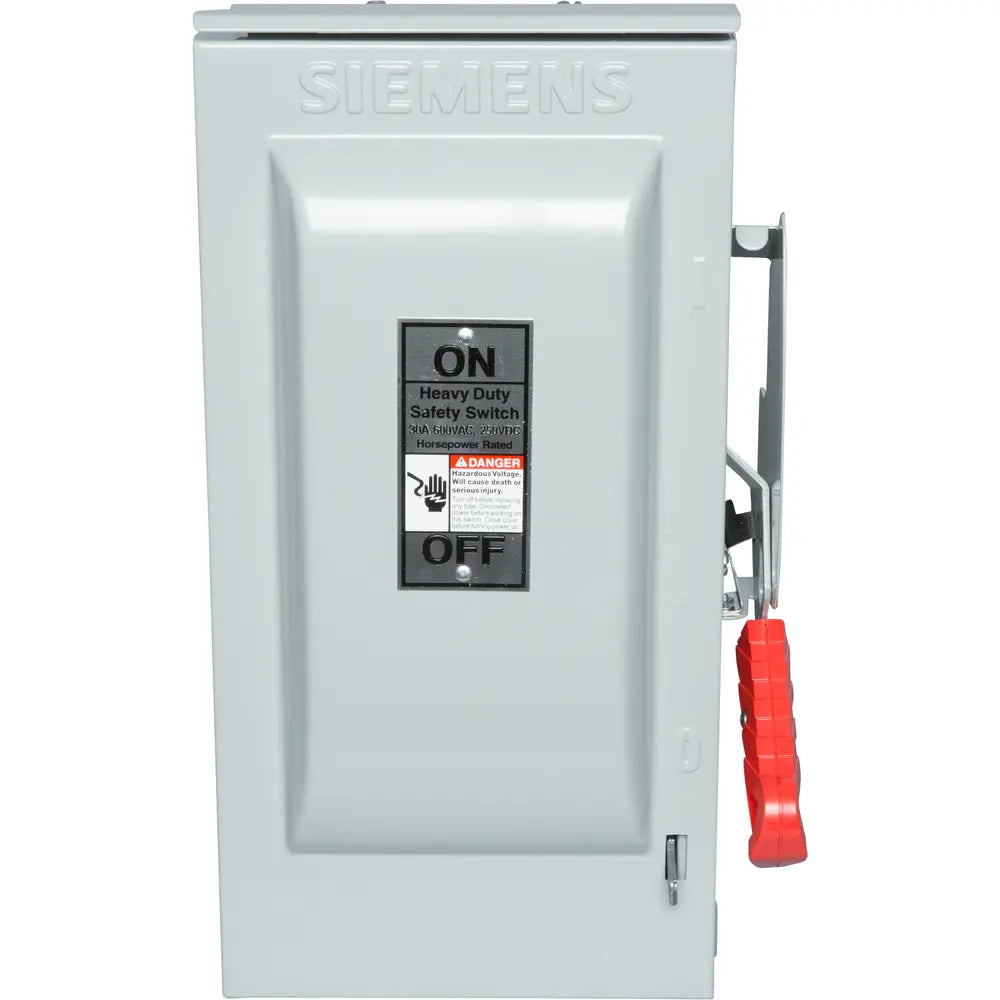

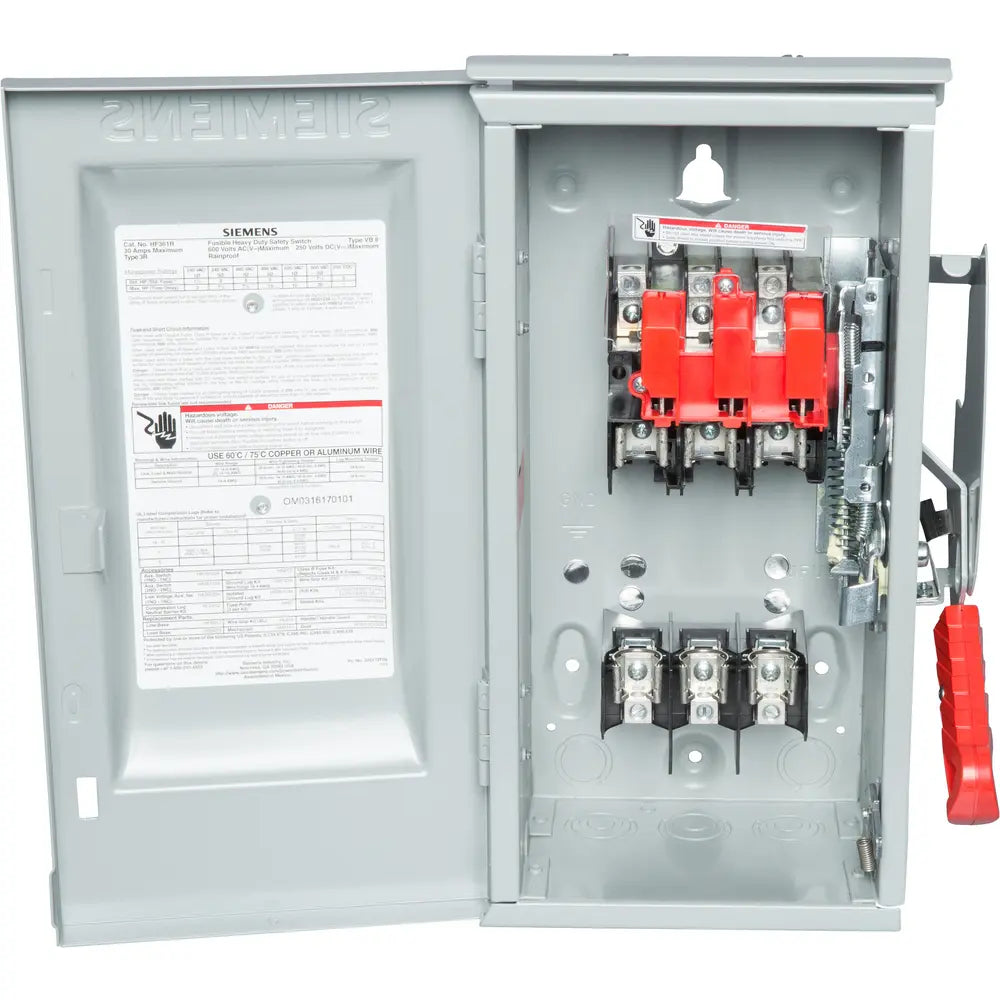

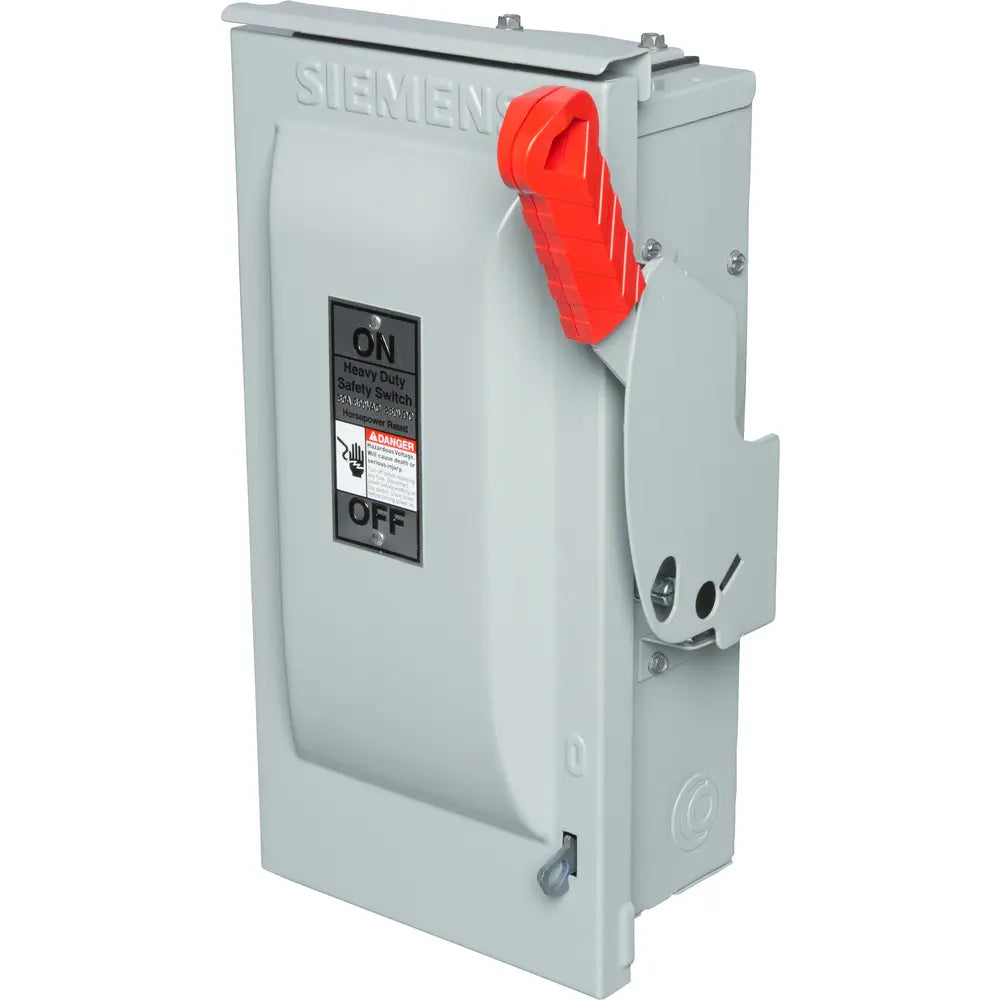

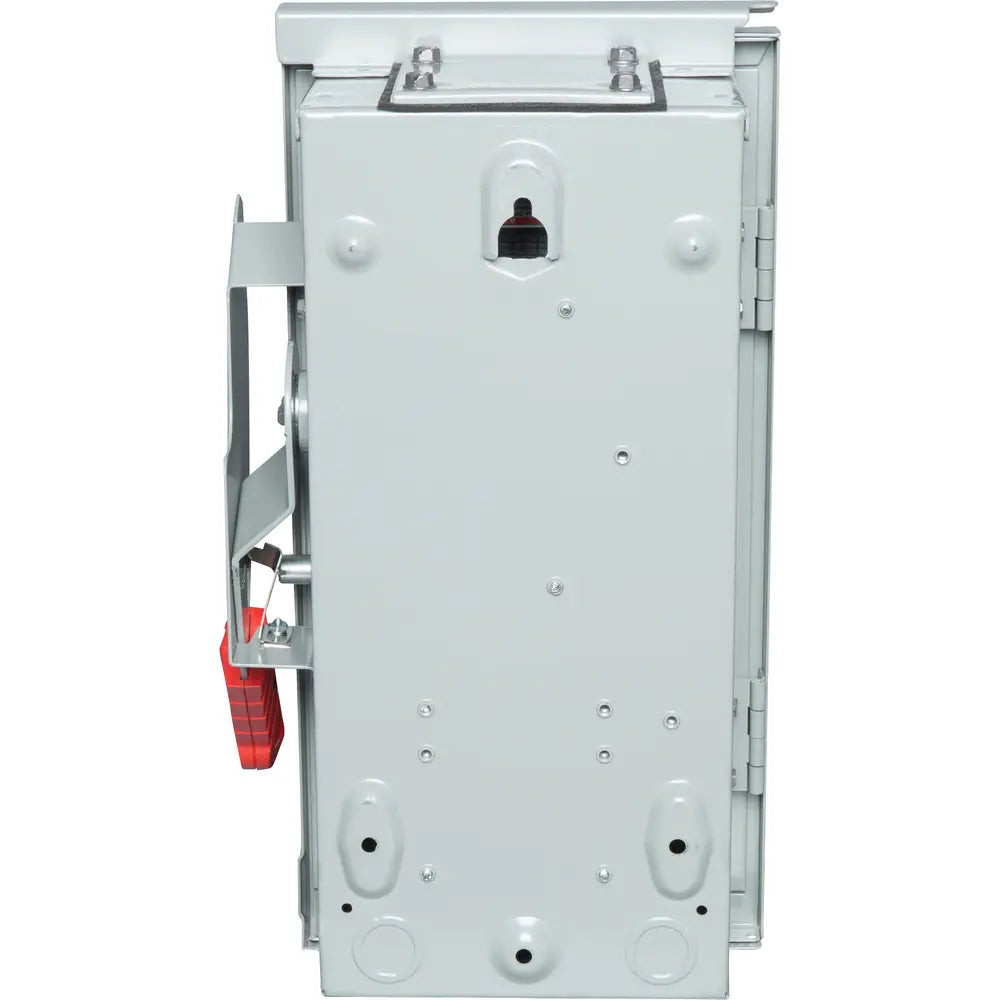

Siemens HF361R Low Voltage Circuit Protection Heavy Duty Safety Switch 30A, Fused, 3-Pole, 3-Wire, 600V

Product Description

The Siemens HF361R is a low voltage circuit protection safety switch designed for heavy-duty applications. This switch has a rating of thirty amperes and is suitable for three-phase, three-pole configurations. The voltage rating is six hundred volts, making it ideal for various power distribution systems.

• Type: Fusible safety switch
• NEMA rating: NEMA 3R
• Mounting type: Surface mount

Product Highlights

This heavy-duty safety switch effectively protects circuits against overload and short-circuits. It is built with a steel enclosure for durability and has a lever actuation mechanism for ease of use.

Product Information

Standard Information

• Brand: Siemens Industry
• MPN: HF361R

Technical Specifications

• UPC: 783643151277
• Weight: 13.99 pounds
• Height: 14.91 inches
• Width: 9.18 inches
• Depth: 7.88 inches
• Material: Steel
• Connection: Ferrule end
• Insulation: Non-insulated
• Environmental Conditions: Dry location
• Actuator: Lever
• Frequency Rating: 50/60 Hertz
• Number of Poles: 3-Pole
• Number of Phases: 3-Phase
• Voltage Rating: 600 VAC
• Amperage Rating: 30 Amperes
• Standard: UL
• Contact Configuration: TPST
• Country of Origin: MX
