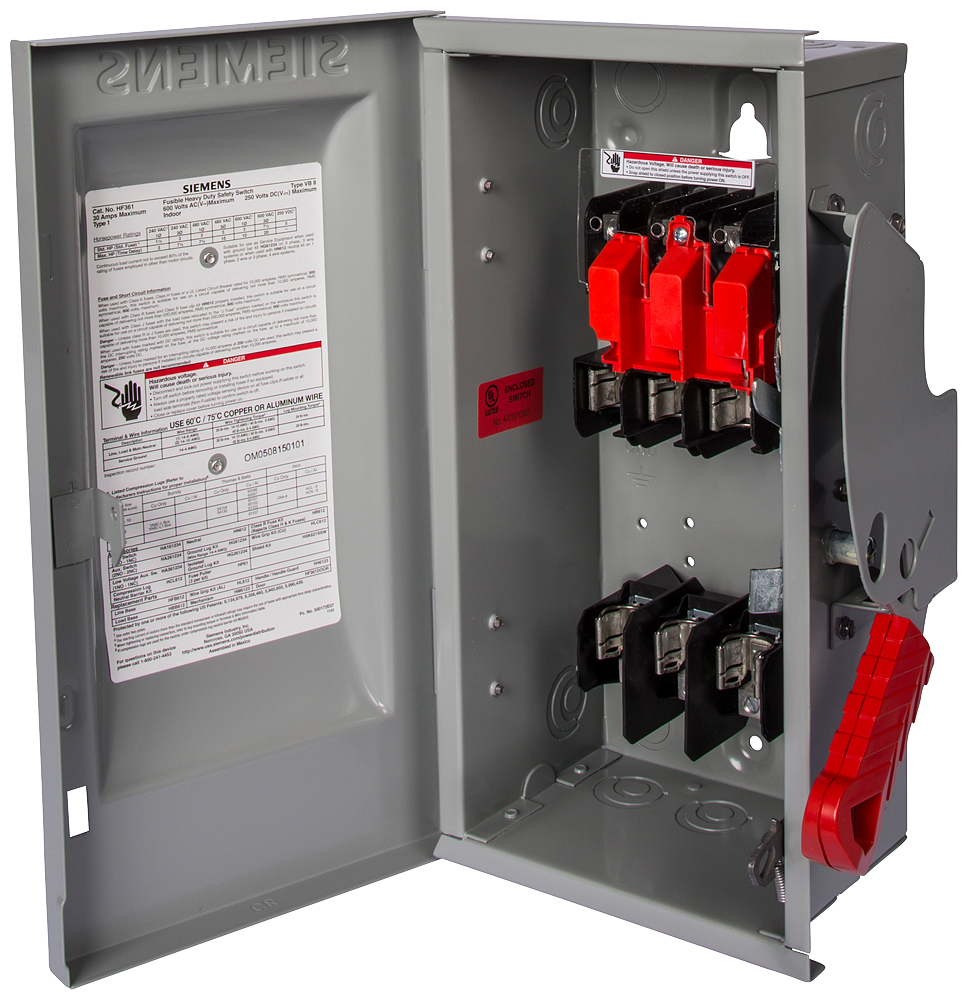

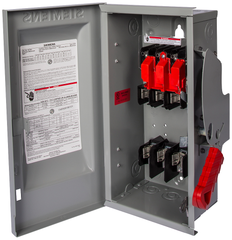

Siemens HF361N 480/600 VAC/250 VDC 30 Amp 3-Pole 4-Wire NEMA 1 Heavy Duty Fusible Safety Switch

Product Description

Siemens is known for its reliable electrical solutions. The HF361N is a heavy-duty safety switch suitable for use in industrial settings. This three-pole switch is rated for up to thirty amps and designed for 480 or 600 volts AC and 250 volts DC applications. The NEMA 1 enclosure provides protection for indoor environments. This switch is commonly used for disconnecting means for service entrance loads.

• Rated Voltage: 480/600 VAC and 250 VDC
• 30 Amp capacity with three-pole configuration
• NEMA 1 indoor rated enclosure

Product Highlights

This safety switch features quick-make, quick-break operation with clear blade visibility for added safety.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF361N

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Enclosure Type: NEMA 1
• Number of Poles: 3
• Fuse Provision: Fusible
• Material: Steel
• Operating Temperature: -29 to 85 degrees C
• Weight: 13 lb
