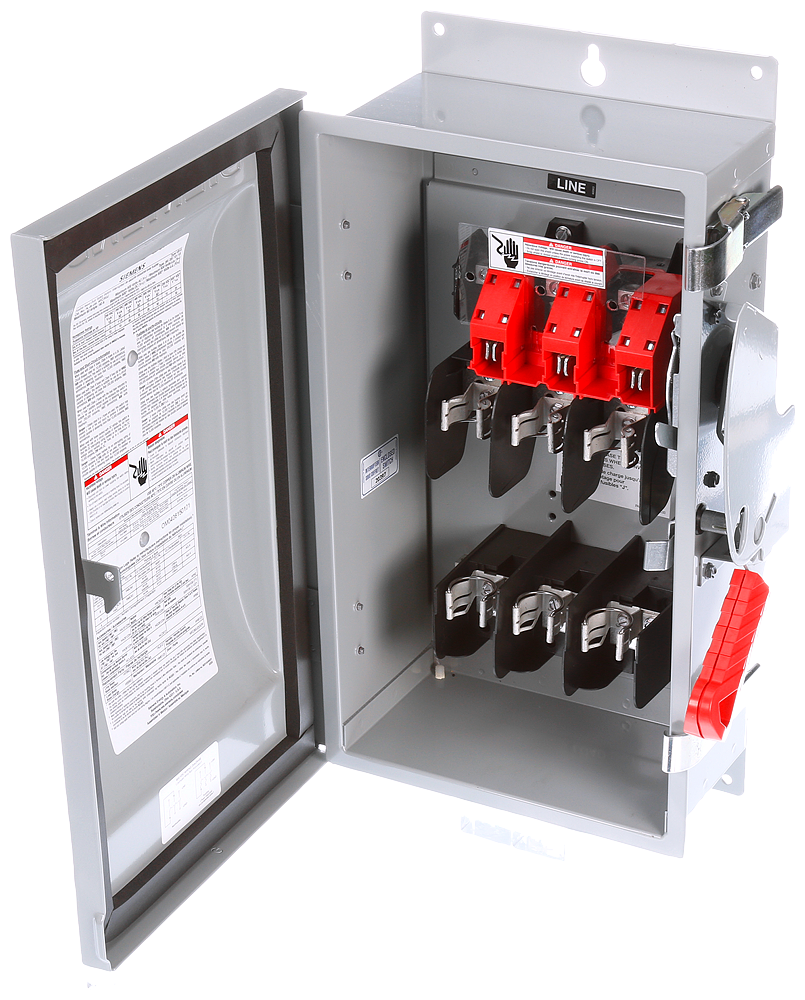

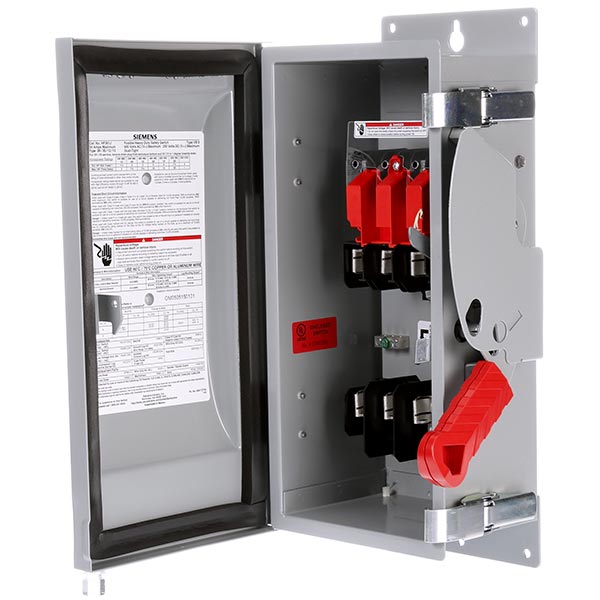

Siemens HF361J 480/600 VAC 250 VDC 30 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch

Product Description

Siemens HF361J is a heavy-duty fusible safety switch that operates at 480 to 600 VAC and 250 VDC. It is rated for thirty amps and comes with three poles. This safety switch is designed for industrial applications and is housed in a NEMA 12 enclosure, which protects against dust and non-corrosive liquids. The switch features a single throw mechanism for reliable operation.

• Rated 600 VAC and 250 VDC with a thirty amp capacity.
• Suitable for surface mounting and designed for a variety of industrial applications.
• Constructed with steel for increased durability.

Product Highlights

This switch is ideal for disconnecting electrical loads and servicing entrances, ensuring safe operations under various conditions.

Product Information

Standard Information

• Catalog Number: HF361J
• Brand: Siemens

Technical Specifications

• Rated Voltage: 600 V AC / 250 V DC
• Amperage Rating: 30 A
• Number of Poles: 3
• Enclosure Type: NEMA 12
• Material: Steel
• Weight: 16.35 lb
• Dimensions: 20.2 in (Length) x 11.4 in (Width) x 8.6 in (Height)
• Operating Temperature: -29 °C
• Connection Type: Mechanical Lugs
• Mounting Type: Surface
