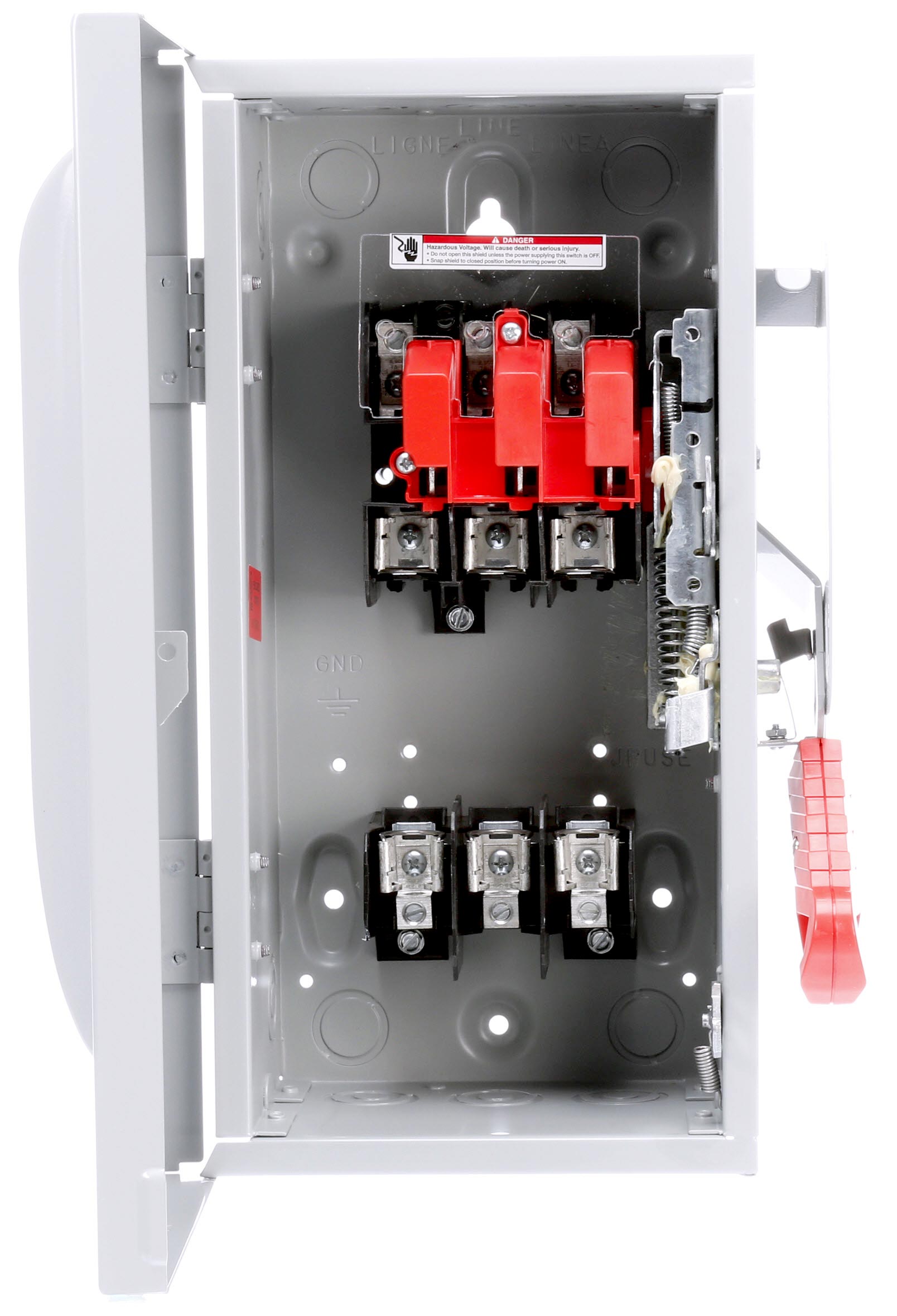

Siemens HF361 SWITCH SAF 600VAC 30A 7-1/2HP TPST 3 3 3

Product Description

The Siemens HF361 is an enclosed fusible heavy-duty low voltage single throw safety switch with a rating of six hundred volts at thirty amps and seven and a half horsepower. This three-pole, three-wire safety switch is designed for both industrial and commercial applications. The switch provides reliable performance and is suitable for indoor use.

• Power distribution up to 600 VAC
• Accommodates 30 amperage
• Spring reinforced for reliable operation

Product Highlights

This switch features a quick-make, quick-break mechanism for positive operation. The unique enclosure design enhances rigidity and prevents injuries by protecting conductors.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF361

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower: 7-1/2 hp
• Number of Poles: 3
• Contact Form: TPST
• Mounting Type: 2/3 Point Hole
• Enclosure Type: NEMA 1
• Frequency Rating: 60 Hz
• Short Circuit Current Rating: 200 kA
• Material: Steel
• Temperature Rating: -20 to 120 deg C
