Siemens HF324N 240 VAC/250 VDC 200 Amp 3-Pole 4-Wire NEMA 1 Heavy Duty Fusible Safety Switch

Product Description

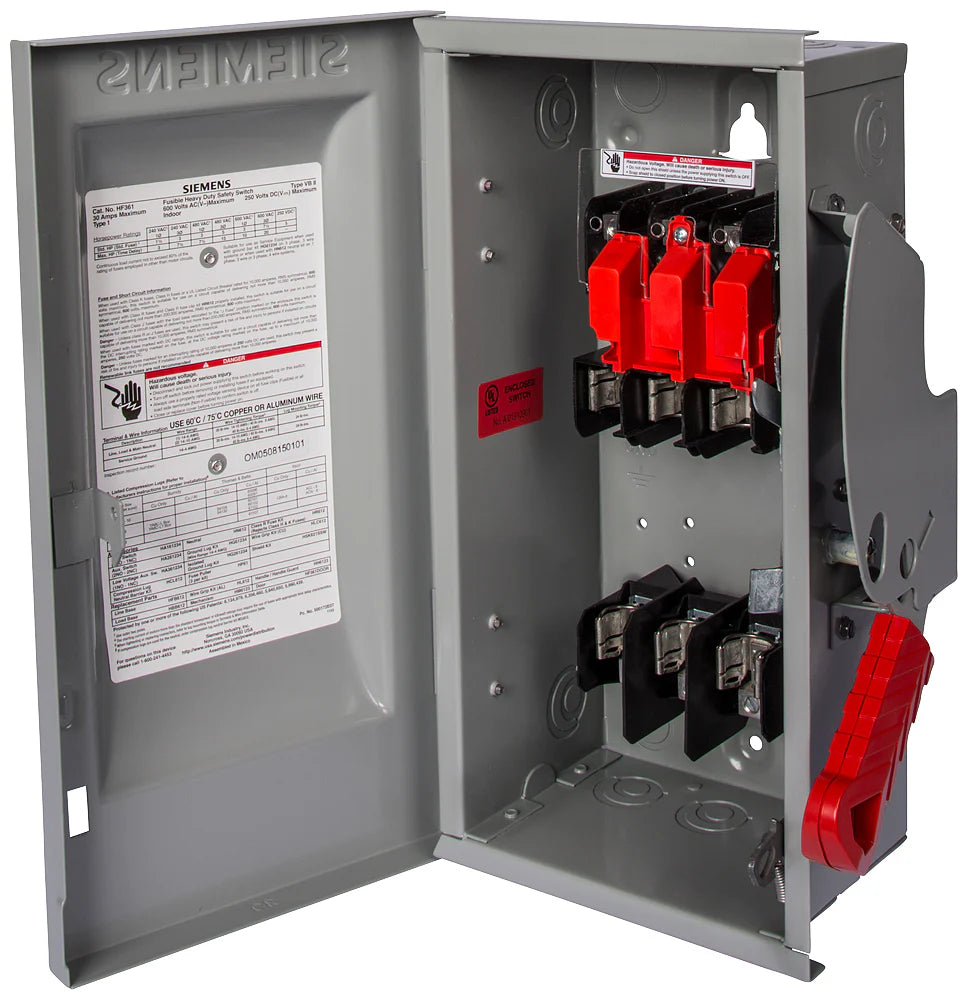

Siemens HF324N is a heavy-duty fusible safety switch rated for 240 volts AC and 250 volts DC. This switch has a 200 Amp capacity and features a three-pole, four-wire configuration. The device is housed in a NEMA type one enclosure intended for indoor use. It is designed for reliable circuit protection and disconnecting means, suitable for service entrance and load applications.

• Voltage rating: 240 VAC / 250 VDC
• Fuses included: 3-pole / solid neutral
• Rated at 200 Amps

Product Highlights

The Siemens HF324N provides crucial safety and performance features in a compact design. Ideal for both commercial and residential applications, it ensures the integrity of electrical installations.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF324N

Technical Specifications

• Amperage Rating: 200 A
• Voltage: 240 V
• DC Voltage Rating: 250 V
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Frequency Rating: 60 Hz
• Mounting Type: Surface
• Country of Origin: Mexico
• Operating Temperature: -29 degrees C
• Weight: 42 lb
