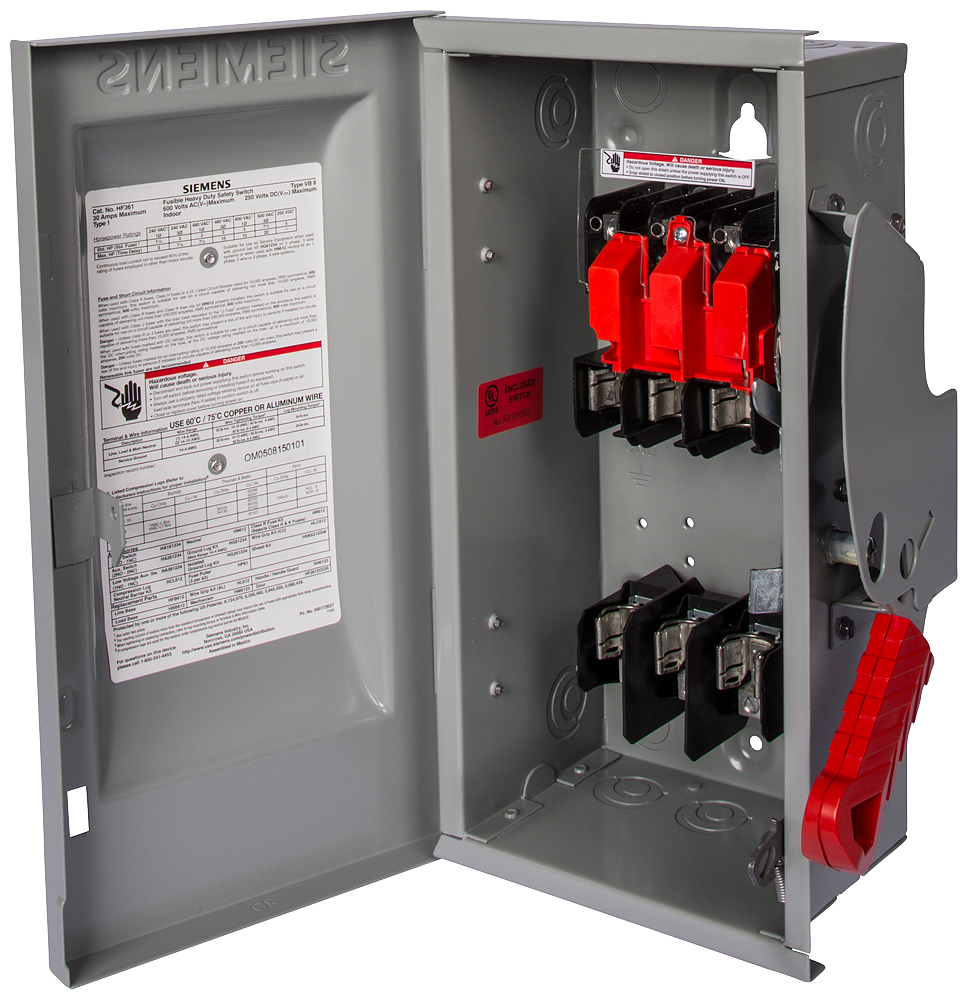

Siemens HF322NR 240 VAC/250 VDC 60 Amp 3-Pole 4-Wire NEMA 3R Heavy Duty Fusible Safety Switch

Product Description

The Siemens HF322NR is a heavy-duty fusible safety switch designed for outdoor applications. This switch is suitable for use in low voltage circuit protection, featuring a robust type NEMA 3R enclosure. It accommodates 240 volts and 60 amps, making it vital for service entrances and loads. The switch includes three poles with solid neutral fused functionality.

• Fusible heavy-duty safety switch.
• Rated at 240 VAC and 250 VDC.
• Built for outdoor applications with a NEMA 3R rating.

Product Highlights

The Siemens HF322NR safety switch ensures reliable operation with a quick-make, quick-break mechanism and visible blade design, providing safety and convenience for electrical installations.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF322NR

Technical Specifications

• Voltage Rating: 240 VAC
• DC Voltage Rating: 250 VDC
• Amperage Rating: 60 A
• Number of Poles: 3
• Enclosure Type: NEMA 3R
• Material: Steel
• Operating Temperature: -29 to 85 deg C
• Size Dimensions: 16.93 in x 10.41 in x 9.21 in
