Product Description

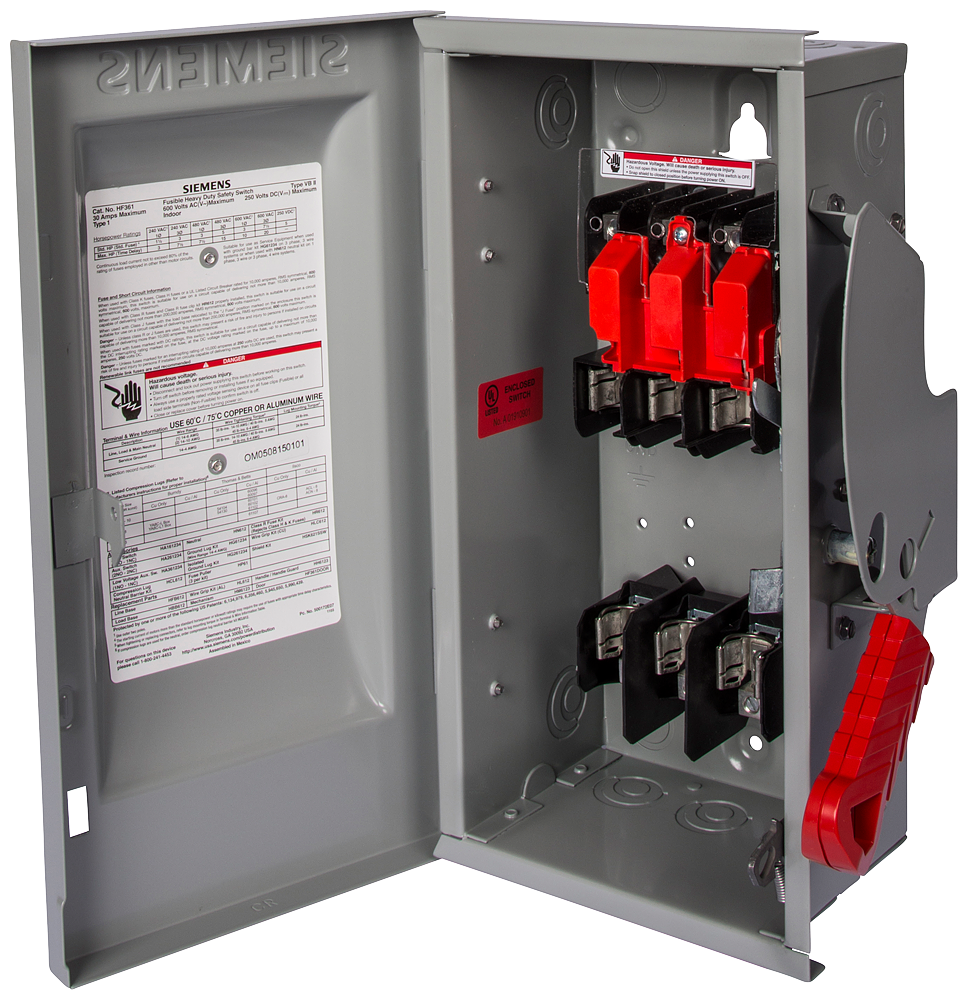

The Siemens HF223NR is a heavy-duty safety switch designed for reliable circuit protection. This device operates at 240VAC with a 100 amp capacity and is suitable for two poles with a double-pole, single-throw (DPST) contact configuration. The HF223NR is crafted for outdoor use and meets NEMA 3R standards.
- Heavy-duty fusible safety switch
- 240VAC, 100A rating
- 2 poles, compliant with NEMA 3R standards
Product Highlights
The HF223NR switch features a robust construction for enhanced durability and reliable operation in demanding environments.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: HF223NR
Technical Specifications
-
Voltage Rating: 240 VAC
-
Amperage Rating: 100 A
-
Horsepower: 7-1/2 hp
-
Enclosure Type: NEMA 3R
-
Number of Poles: 2
-
Frequency Rating: 60 Hz
-
Temperature Rating: -29 to 85 deg C
-
Dimensions: 21.95 in H x 10.92 in W x 10.17 in D
