Siemens HF223N Fusible Safety Switch 100A

Product Description

The SIEMENS HF223N is a heavy-duty fusible safety switch with neutral, designed for use with Class H or K fuses. This switch features a quick-make, quick-break operating mechanism that ensures positive operation. It is suitable for circuits rated through 200K when protected by Class R or J fuses.

• Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation
• Visible Blade, Double-Break Switching Action
• Arc Chutes Dissipate Heat and Prolong Switch Life

Product Highlights

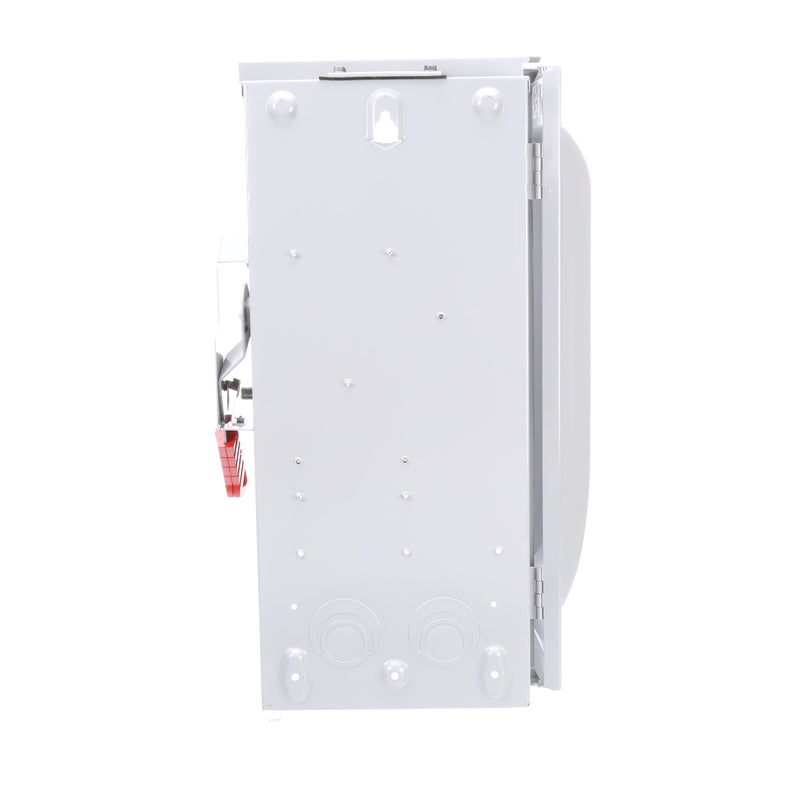

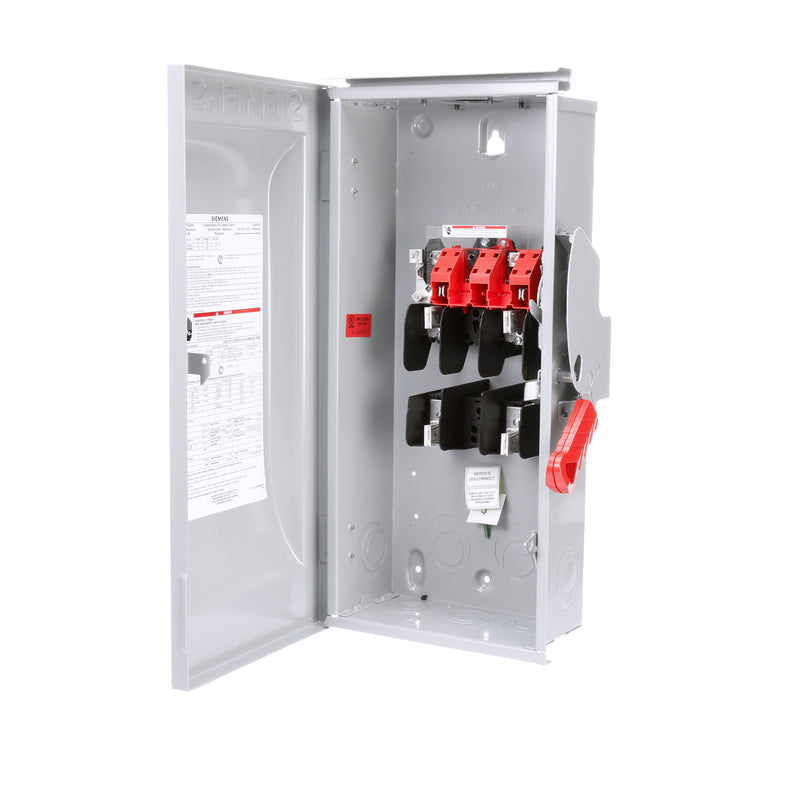

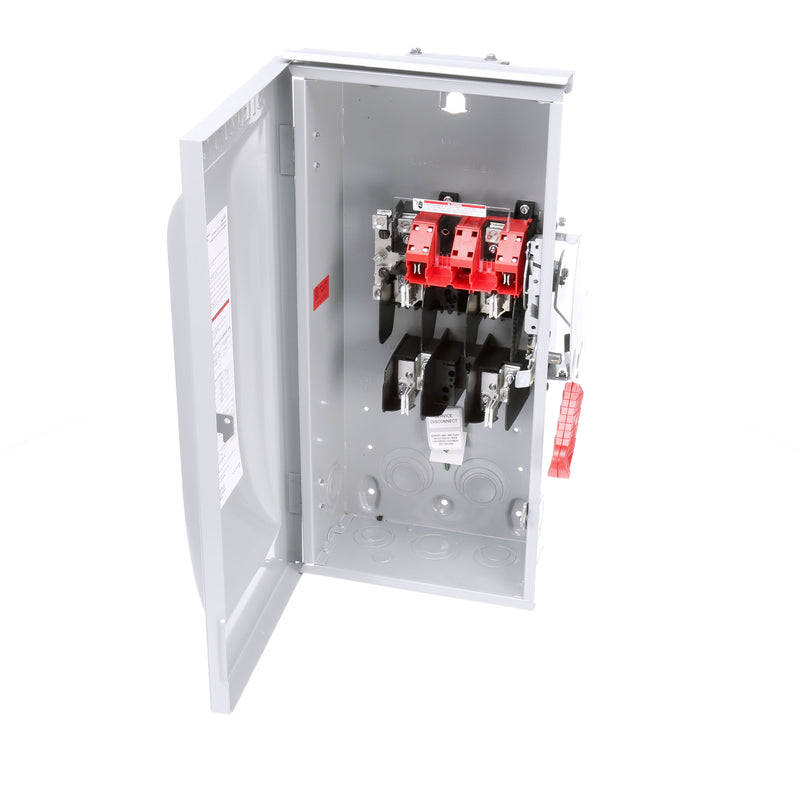

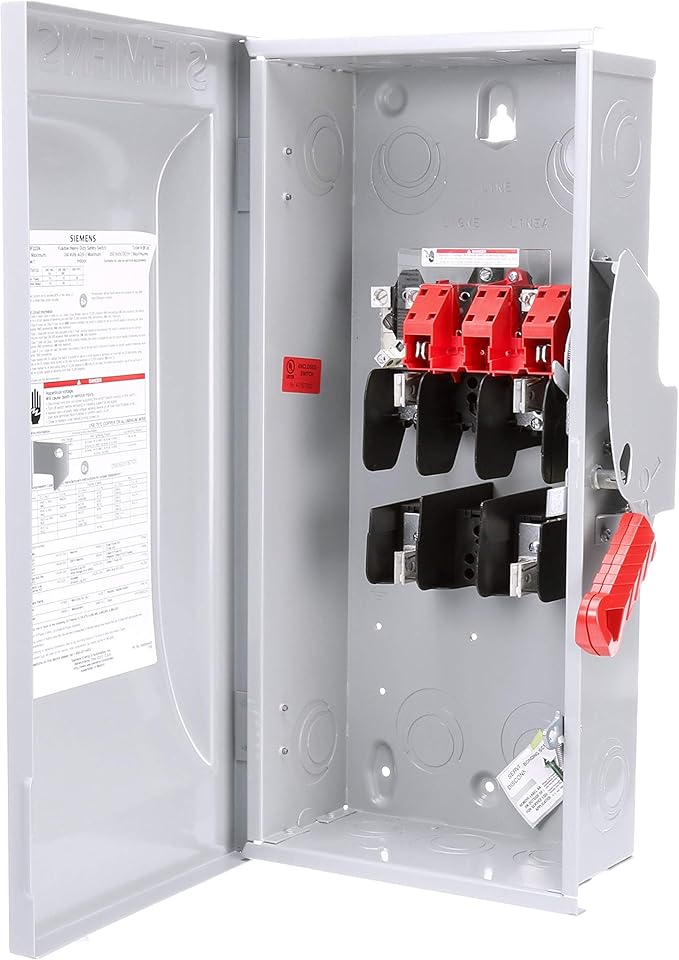

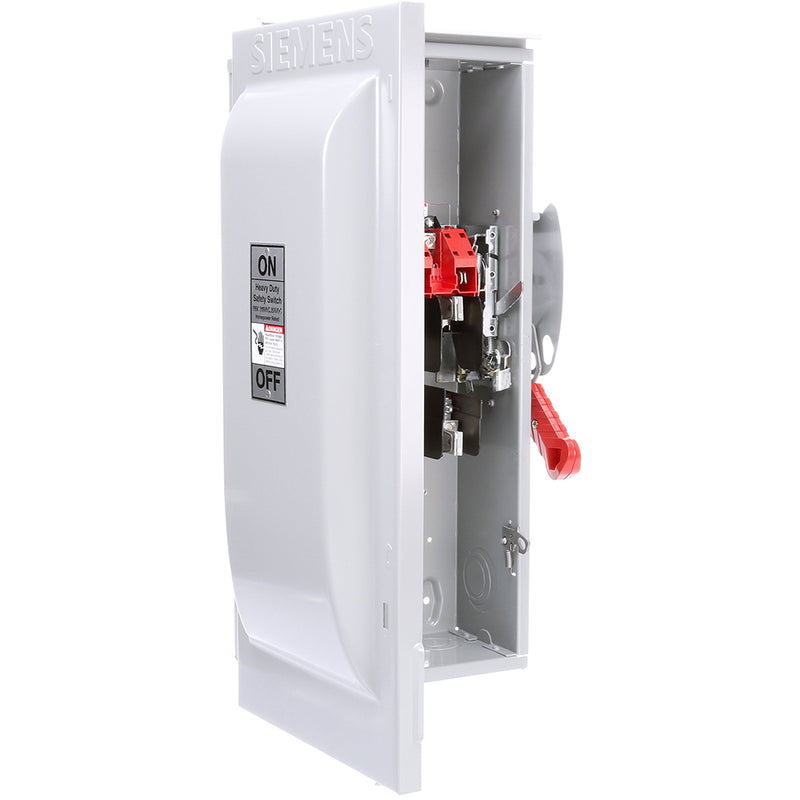

Heavy duty safety switch with a NEMA 1 enclosure, visible blade, and a highly visible red handle grip designed for hook stick operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HF223N
• Country of Origin: Mexico

Technical Specifications

• AC Voltage Rating: 240 V
• Approval: UL 98
• DC Voltage Rating: 250 V
• Enclosure: NEMA 1
• Fuse Provision: Fusible
• Fuse Type: Class H/J/R/T, Time Delay
• Manufacturer Name: Siemens
• Neutral Type: Solid
• Number Of Poles: 2
• Number Of Wires: 3
• Power Rating: 7-1/2 HP at 240 VAC 1-Phase, 15 HP at 240 VAC 3-Phase (Standard), 15 HP at 240 VAC 1-Phase, 30 HP at 240 VAC 3-Phase (Maximum for Time Delay Fuse), 20 HP at 250 VDC
• Product UPC: 783643150225
• Type: Heavy Duty Safety
• Horsepower: 7-1/2 hp
• Short Circuit Current Rating: 200 kA
• Material: Steel
• Mounting Type: Surface
• Temperature Rating: -29 to 85 deg C
• Amperage Rating: 100 A
• GTIN: 00783643150225
• Short Circuit Rating: 200 kA
• Voltage Rating: 240 VAC
• Insulation Type: Non-Insulated
• Terminal Type: Lug
• Contact Form: DPST
• Frequency Rating: 60 Hz
• Phase: 1
• UPC: 783643150225
• UNSPSC: 39122205
• Vendor SKU: HF223N
• Standard & Approvals: UL Listed
• Application: Indoor Applications
• Brand: Siemens
• AIC rating: 200kA@240V
• Fuse Class: R
• Configuration: Single
• Switch Style: Fusible
• Nema Rating: NEMA 3R
• Compatible Frames: MHP
• Certification: UL listed
• Part Number: HF223N
