Product Description

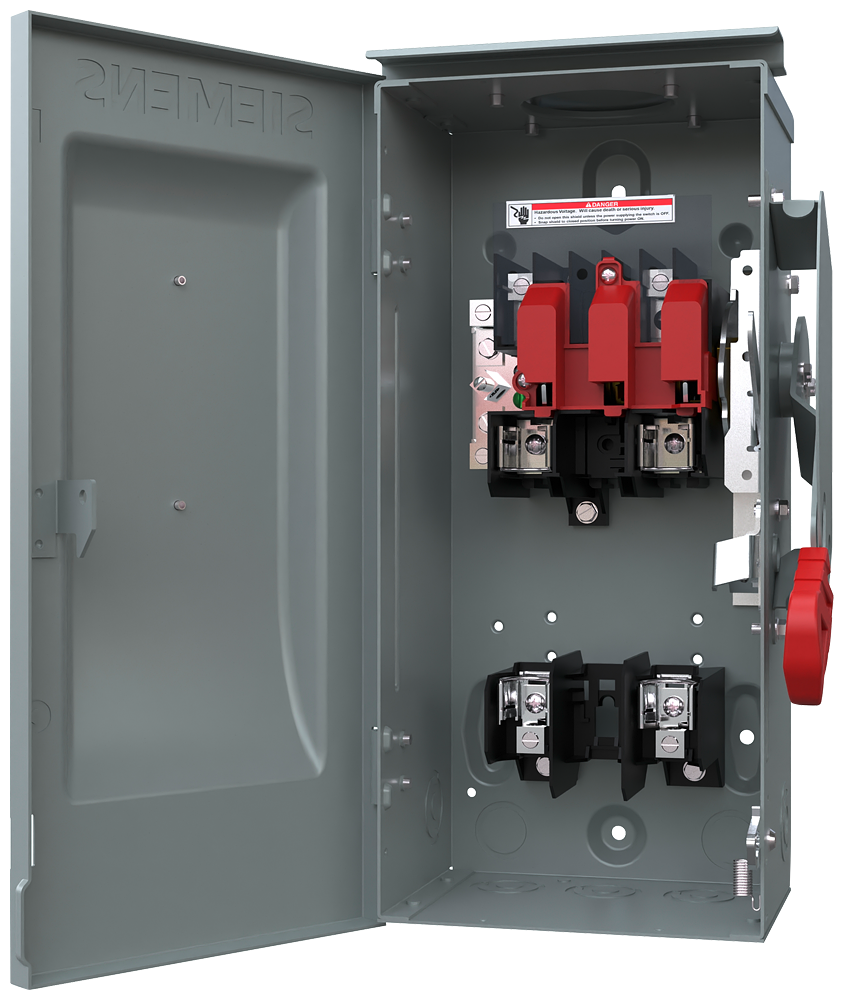

Siemens HF222N is a heavy-duty fusible safety switch designed for low voltage circuit protection. This switch operates at 240 VAC and 250 VDC with a maximum of 60 amps. It features a two-pole, three-wire design housed in a durable NEMA 1 enclosure suitable for indoor applications.
- Heavy-duty construction for reliable performance
- Quick-make, quick-break operating mechanism
- Designed for efficient electrical disconnecting for service entrance and loads
Product Highlights
This safety switch provides secure connections and meets various NEC wire bending space requirements. It comes with a clear identification label for easy maintenance.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: HF222N
Technical Specifications
-
Voltage Rating: 240 VAC
-
Amperage Rating: 60 A
-
Type: Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw
-
Enclosure Type: NEMA 1
-
Dimensions: 16.26 inches H x 10.19 inches W x 10.17 inches D
-
Material: Steel
-
Weight: 18 lbs
-
Operating Temperature: -29 to 85 degrees C
-
Short Circuit Current Rating: 200 kA
-
Mounting Type: Surface
-
Number of Poles: 2
