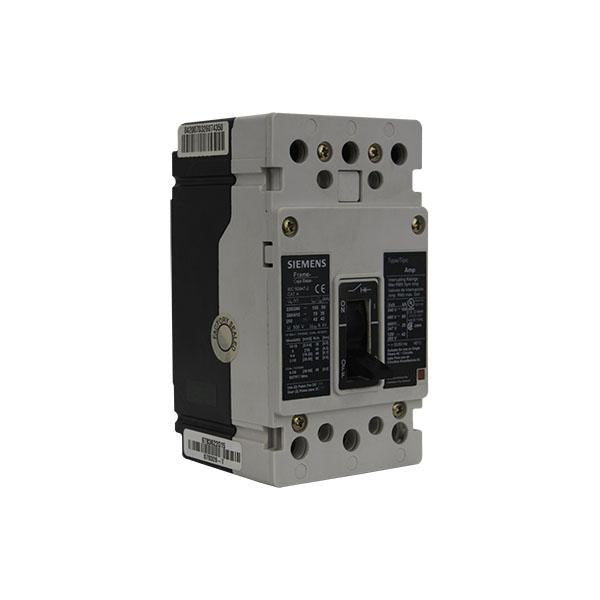

Siemens HEM3M015L Breaker EG 3P 15A MCP Mid Mag Lugs

Product Description

The Siemens HEM3M015L breaker is an EG 3P 15A MCP with mid mag lugs. This molded case circuit breaker is designed for motor circuits, providing a disconnecting means and short circuit protection. It operates at 480 VAC, 50/60 Hz, with a 65 kA interrupt rating. It is suitable for use with 14 to 3/0 AWG copper wire.

• Used in motor circuits as a disconnecting means and for short circuit protection
• Should be used with motor running, over-current-protection devices
• 65 kA at 480 VAC interrupt rating

Product Highlights

Molded case circuit breakers protect motor circuits, offering short circuit protection and disconnection. Designed for use with over-current protection devices, preventing nuisance tripping.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HEM3M015L
• Country of Origin: DO

Technical Specifications

• Alternate Mfr Part Number: HEM3M015L
• Brand: Siemens
• Manufacturer Part Number: HEM3M015L
• Application: MOTOR CIRCUIT PROTECTOR
• Connection: LUGS
• Connection Type: Lug
• Country of Origin: DO
• Frequency Rating: 50/60 Hz
• Frame: 125 A
• Material: MOLDED CASE CIRCUIT BREAKER
• Number Of Poles: 3
• Phase: 3 pH
• Series: VL Series
• Standard: UL 489
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489
• Sub Brand: VL
• Temperature Rating: 40 �C
• Trip Range: 45 to 165 A
• Type: Type EG
• UNSPSC: 39121601
• UPC 12: 783643520721
• Wire Size: 14 to 3/0 AWG
• Manufacturer: Siemens
• Amperage Rating: 15 A
• Interrupt Rating: 65 kA
• Trip Type: Instantaneous/Magnetic
• Voltage Rating: 480 VAC
