Product Description

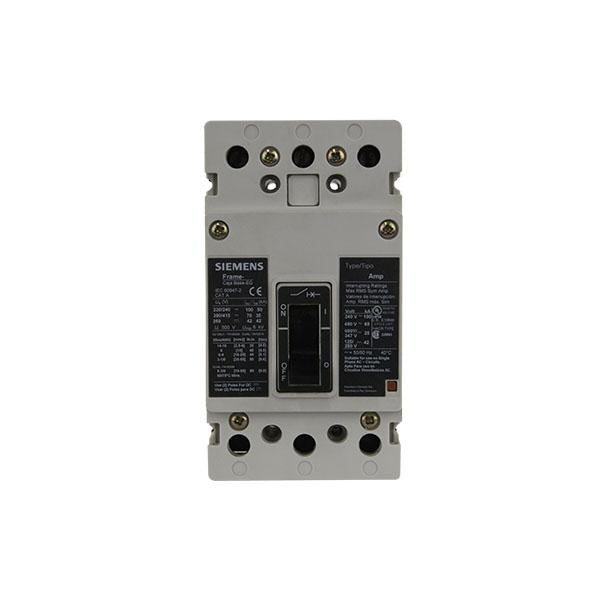

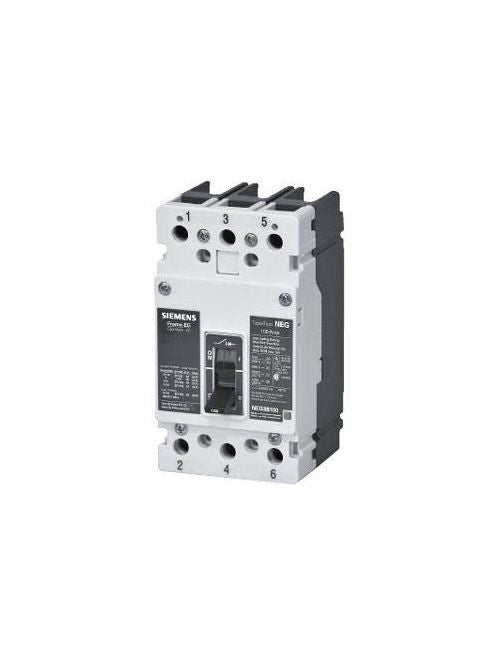

The SIEMENS HEG3B015L is a low voltage EG frame circuit breaker with a thermal-magnetic trip. This UL listed HEG frame breaker has a high breaking capacity. Rated at 15A and 600V, this 3-pole breaker is suitable for global interchangeable applications. It mounts on DIN rail or screw and includes line and load side lugs (TA1EG10).
- Thermal-magnetic trip
- UL Listed HEG Frame
- High breaking capacity
Product Highlights
The SIEMENS HEG3B015L circuit breaker provides reliable circuit protection with a thermal-magnetic trip mechanism and high breaking capacity.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: HEG3B015L
-
Country of Origin: US
Technical Specifications
-
Catalog Number: HEG3B015L
-
Type: HEG
-
Brand: SIEMENS
-
Frame: 125A
-
Width: 4.000
-
Height: 5 Inch
-
Length: 7
-
Voltage: 600 Volt
-
Amperage: 15 Amp
-
Standard: CSA,IEC,UL,NOM
-
Frequency: 50/60 Hz
-
Trip Type: THERMAL MAGNETIC TRIP UNIT
-
Applications: GLOBAL INTERCHANGEABLE
-
TC Connection: LOAD END STANDARD CU/AL LUGS
-
Connection Type: Load End Standard (CU/AL) Lugs
-
Number of Poles: 3 Pole
-
Interrupt Rating: 65 kAIC
-
Operating Temperature: 40DEGC
-
Current Rating: 15 A
-
Manufacturer Part Number: HEG3B015L
-
Termination: Lugs
-
UPC Code: 783643520400
-
Voltage Rating: 600 V
-
Poles: 3
-
Mounting Style: Feed-Thru
-
Protection: Thermal Magnetic
-
Trip Functions: LI - Long-Time and Instantaneous
