Product Description

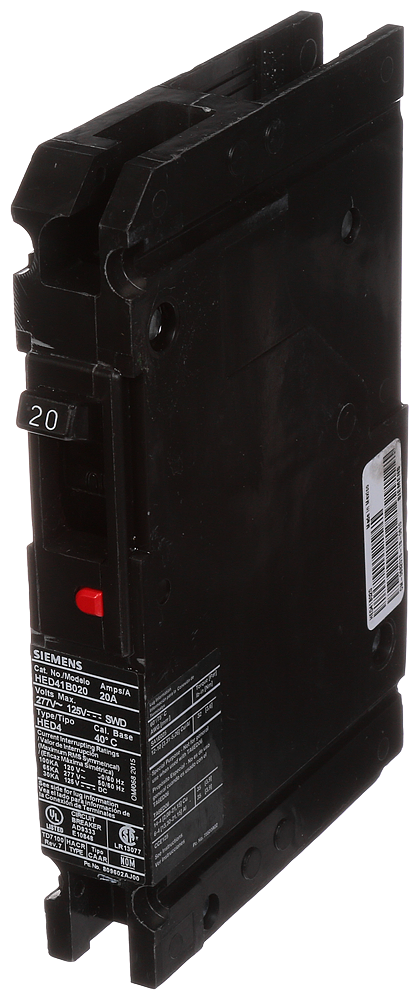

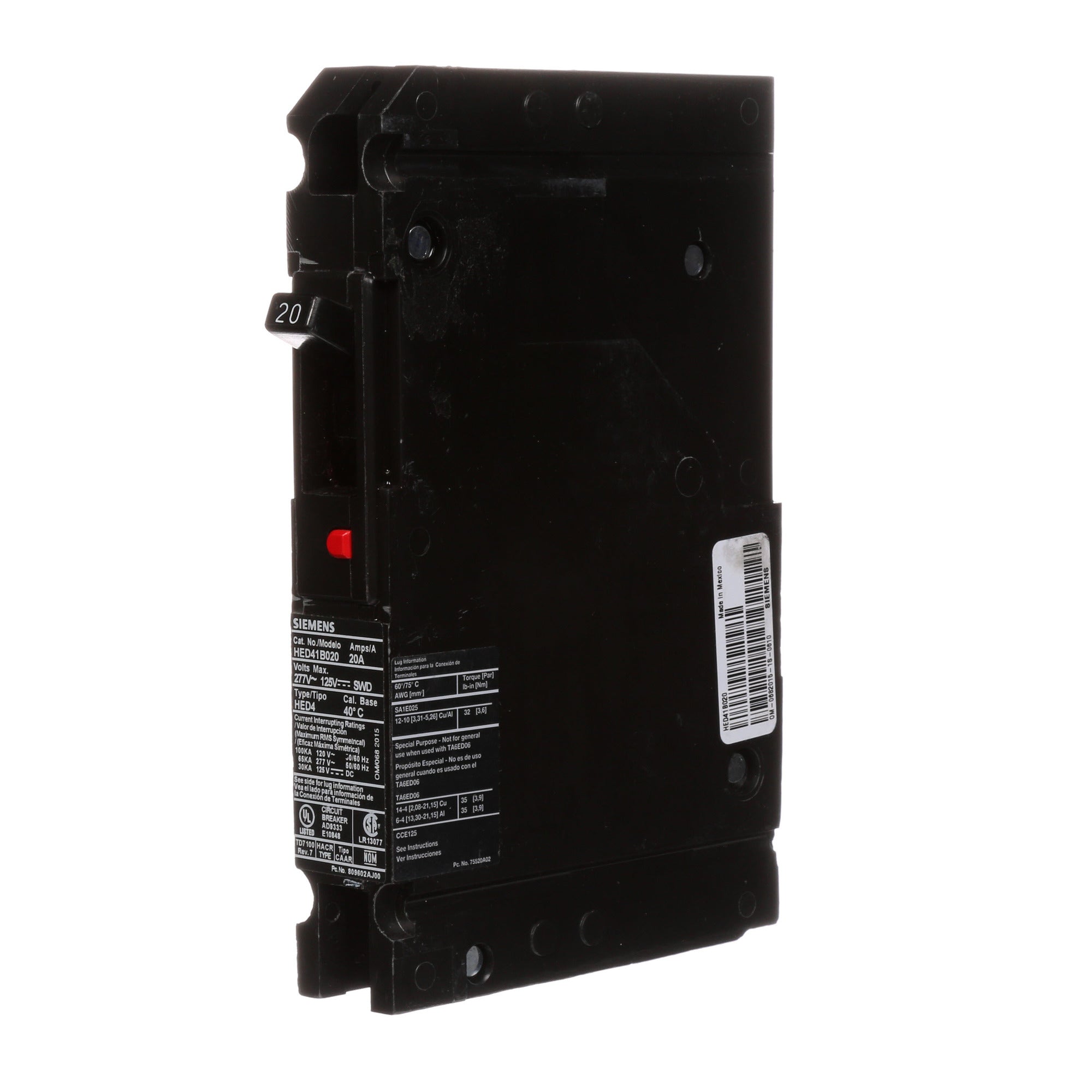

The Siemens HED41B020 is a twenty amp, one-pole circuit breaker designed for power distribution. This breaker operates at two hundred seventy-seven volts and features a high interrupting current rating of sixty-five kiloamps. Ideal for various applications, this unit utilizes a thermal-magnetic trip system. The load lug allows easy connections suitable for wire sizes ranging from fourteen to ten gauge for copper and twelve to ten gauge for aluminum.
- Current Rating: 20 Amp
- Voltage Rating: 277 Volt AC
- Interrupting Rating: 65 KAIC
Product Highlights
This circuit breaker is part of the Sentron series and is designed to meet high performance and safety standards.
Product Information
Standard Information
-
Manufacturer: Siemens
-
Category: Power Distribution
Technical Specifications
-
Catalog Number: HED41B020
-
Frame: ED
-
Width: 4.000 inches
-
Height: 6.000 inches
-
Length: 1.000 inches
-
Weight: 1.180 pounds
-
Number of Poles: 1
-
Frequency: 50/60 Hz
