Siemens H37892 Lug Accessory 4 to 500 Mcm Hq Breakers

Product Description

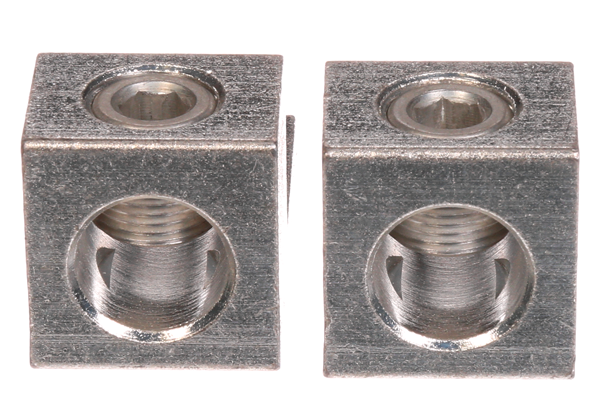

The SIEMENS H37892 is a Talon lug accessory designed for use with HQ-series circuit breakers. It features a 9/16 inch stud and a 3/8 inch Allen drive, accepting conductors ranging from No. 4 through 500 MCM. This lug provides a secure termination point for large-gauge conductors in panel and breaker installations. Electricians use this accessory to extend or adapt the termination capacity of compatible HQ breakers, ensuring a code-compliant mechanical connection at the breaker terminal. The MCM range makes it suitable for high-ampacity branch and feeder circuit work.

This lug accessory is intended for use in commercial and residential electrical panel installations where HQ-series breakers are deployed. It is most commonly installed during service upgrades, panel builds, or conductor termination work requiring a reliable mechanical lug rated for large wire gauges up to 500 MCM. Licensed electricians performing load-side termination work on HQ breakers are the primary installers.

Key Features

• 9/16 inch stud size for secure mechanical clamping
• 3/8 inch Allen drive for installation with standard hex tooling
• Accepts conductors from No. 4 through 500 MCM
• Designed as a factory-matched lug accessory for HQ-series circuit breakers
• Supports high-ampacity feeder and branch circuit terminations

Compatibility

Designed for use with SIEMENS HQ-series circuit breakers as a lug accessory for conductors ranging from No. 4 to 500 MCM.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the panel and verify absence of voltage before installing or removing any lug accessory. Use a calibrated torque wrench with the correct 3/8 inch Allen bit to achieve proper termination without over-torquing the stud. Ensure conductor insulation is stripped to the correct length and that no stray strands are present at the terminal.

Technical Specifications

• Stud Size: 9/16 inch
• Drive Size: 3/8 inch Allen
• Conductor Range: No. 4 to 500 MCM
• Compatible Breaker Series: HQ
• UPC: 783643503410

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: H37892
