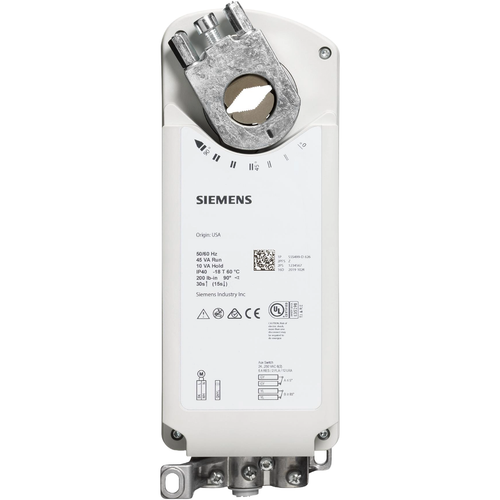

Siemens GVD326.1U Electronic damper actuator 230 VAC (95°)

Product Description

Siemens GVD326.1U is a fire and smoke electronic damper actuator that provides 200 lb-in torque with 2-position control and spring-return fail-safe operation at 230 VAC. It includes built-in electronic fusible link capability and two fixed auxiliary switches, offers 95° rotation, and has a nominal 30 s run time for 90° with a maximum 15 s spring return. The unit is plenum-rated with a NEMA 1/IP40 housing and is designed to meet UL555S.

• 200 lb-in torque with 2-position (On/Off) control and spring-return fail-safe; 90° nominal run time 30 s, spring return 15 s max
• 230 VAC, 50/60 Hz operation; power consumption 35 VA (run) / 9 VA (hold); 95° angular rotation; 3 ft cable
• Built-in electronic fusible link, two fixed auxiliary switches, plenum-rated NEMA 1 / IP40 high-temperature polymer housing; designed to meet UL555S and certified to UL60730, cUL CSA 60730, CE

Product Highlights

Fire and smoke damper actuator, 200 lb-in torque, 2-position spring-return, 230 VAC, 95° rotation, built-in electronic fusible link and two auxiliary switches

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GVD326.1U
