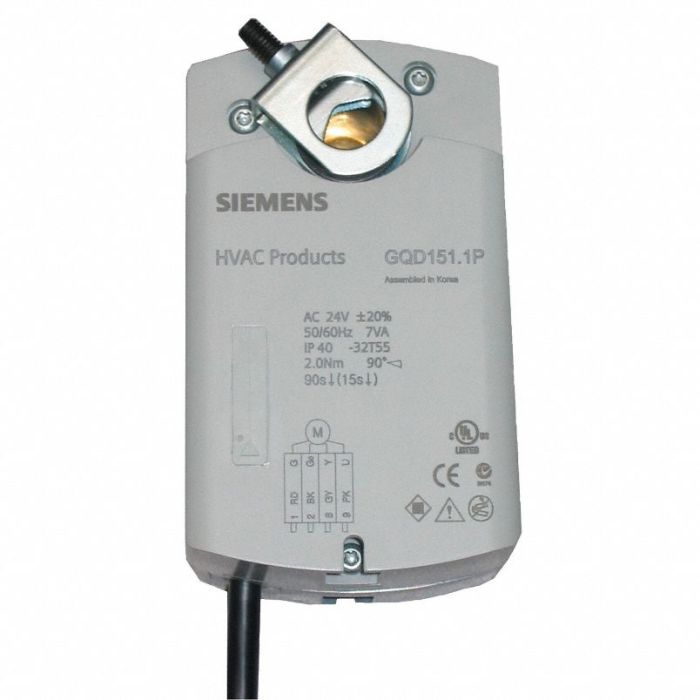

Siemens GQD151.1P/B Direct Coupled Actuator 20 in-lb 24VAC 10 PK

Product Description

The Siemens GQD151.1P/B is a direct coupled actuator designed for HVAC systems. It delivers a torque of twenty inch-pounds in a compact package suitable for various applications. This model operates on twenty-four volts AC or DC and is ideal for modulating control systems utilizing a zero to ten volt DC signal.

• Spring Return Design
• Compact Size for Installation Flexibility
• UL and cUL Listed, CE Certified

Product Highlights

This actuator features a fail-safe spring return and comes pre-cabled for efficient installation. Its fast run time and ability to function in extreme temperatures make it suitable for demanding environments.

Product Information

Standard Information

• Brand: Siemens
• Part Number: GQD151.1P/B

Technical Specifications

• Housing: NEMA 1
• Power Consumption: 4.5 VA Running, 3.5 VA Holding
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
• Torque: 20 in-lbs
• Runtime: 15/30 Sec
• Voltage: 24 VAC
• Spring Return: Yes
