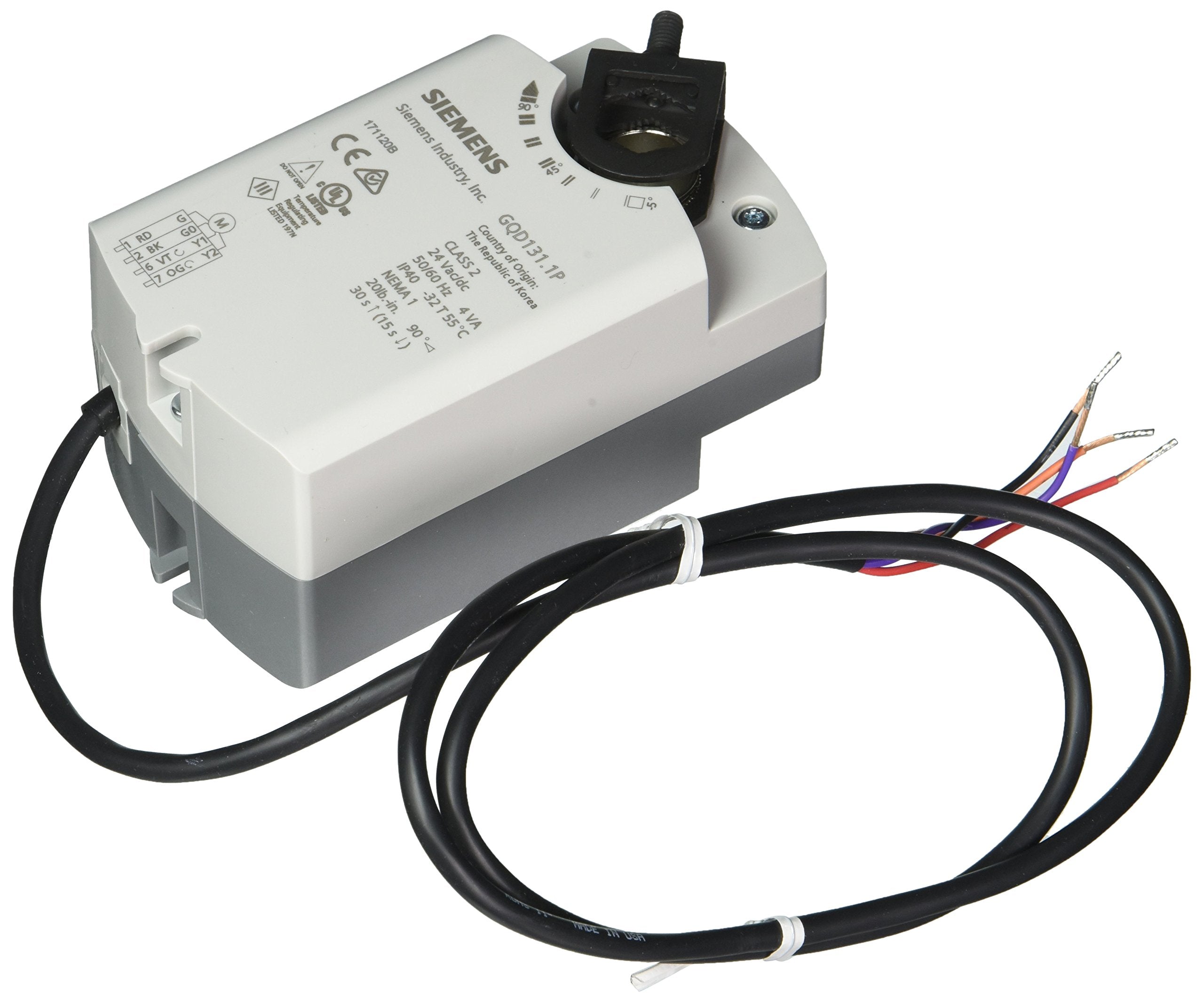

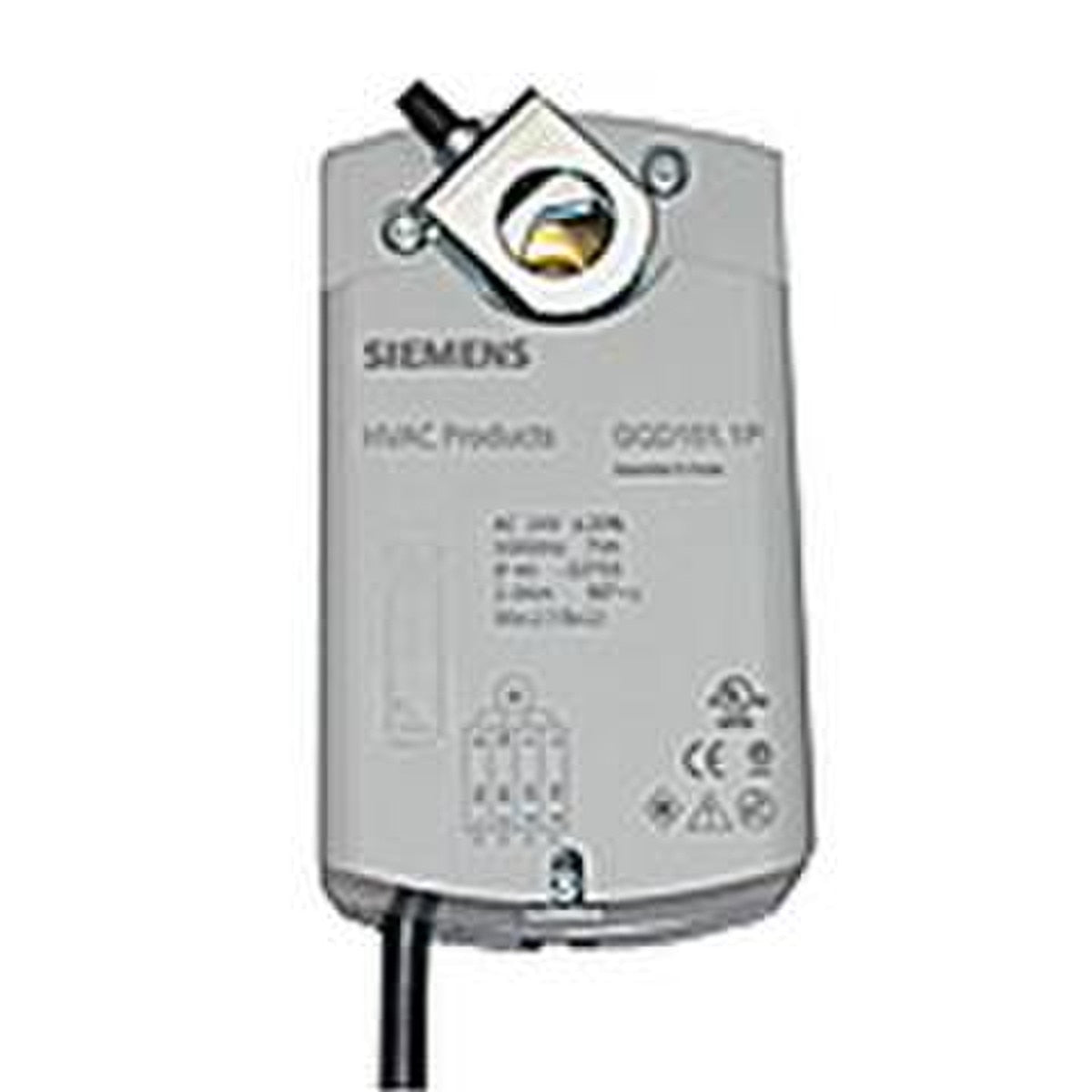

Siemens GQD131.1P Direct Coupled Actuator 24 VAC/DC (20 in-lb)

Product Description

Siemens GQD131.1P is a spring-return, direct-coupled damper actuator that delivers 20 in-lb torque and operates on 24 VAC/DC with a floating control signal. The actuator draws 4 VA running (3 VA holding), is pre-cabled with a 3 ft 18 AWG plenum-rated cable, and is housed in a NEMA 1 enclosure. It is plenum rated, UL/cUL listed and CE certified, with a typical 30 second run time and fail-safe spring return.

• 20 in-lb torque rotary actuator with fail-safe spring return and bi-directional operation
• Operates on 24 VAC/DC with floating control; power consumption 4 VA running, 3 VA holding
• Pre-cabled with 3 ft 18 AWG plenum cable; NEMA 1 enclosure; UL/cUL listed and CE certified

Product Highlights

Spring-return rotary damper actuator, 20 in-lb torque, 24 VAC/DC floating control, plenum rated with 3 ft plenum cable and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GQD131.1P
• Country of Origin: South Korea

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: GQD131.1P
• Input Voltage: 24 VAC/DC
• Power Consumption: 4 VA running, 3 VA holding
• Control Signal: Floating control
• Torque: 20 in-lb (2 Nm)
• Actuator Type: Direct-coupled rotary, spring return
• Return Type: Fail-safe spring return
• Run Time: 30 seconds (typical)
• Spring Return Time: 15 seconds (typical)
• Electrical Connection: 3 ft 18 AWG plenum cable
• Enclosure Rating: NEMA 1 (IP40)
• Plenum Rated: Yes (approved for installation in plenum areas per UL 1995)
• Operating Temperature: -25 °F to 130 °F (-32 °C to 55 °C)
• Certifications: UL listed, cUL listed, CE certified
• Weight: 1.39 pounds
• Dimensions: 4.72 x 2.72 x 2.47 inches
• Country of Origin: South Korea
