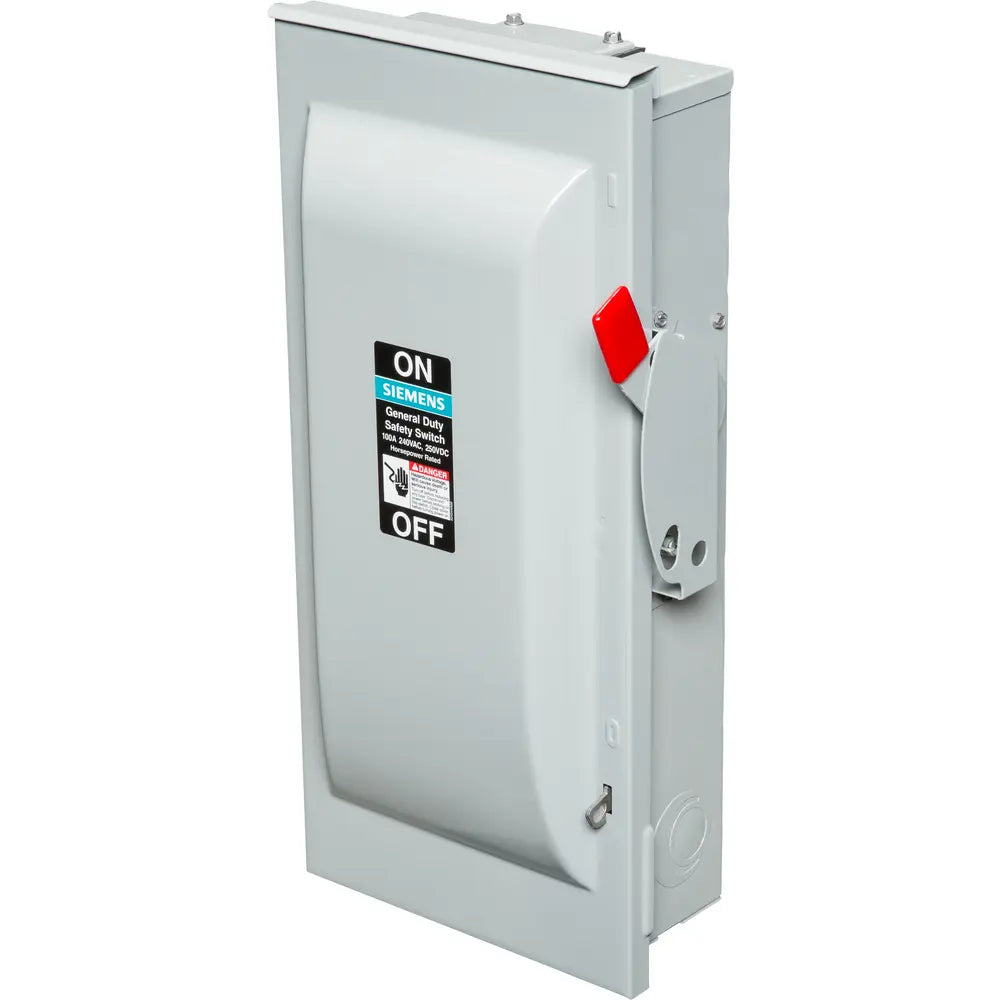

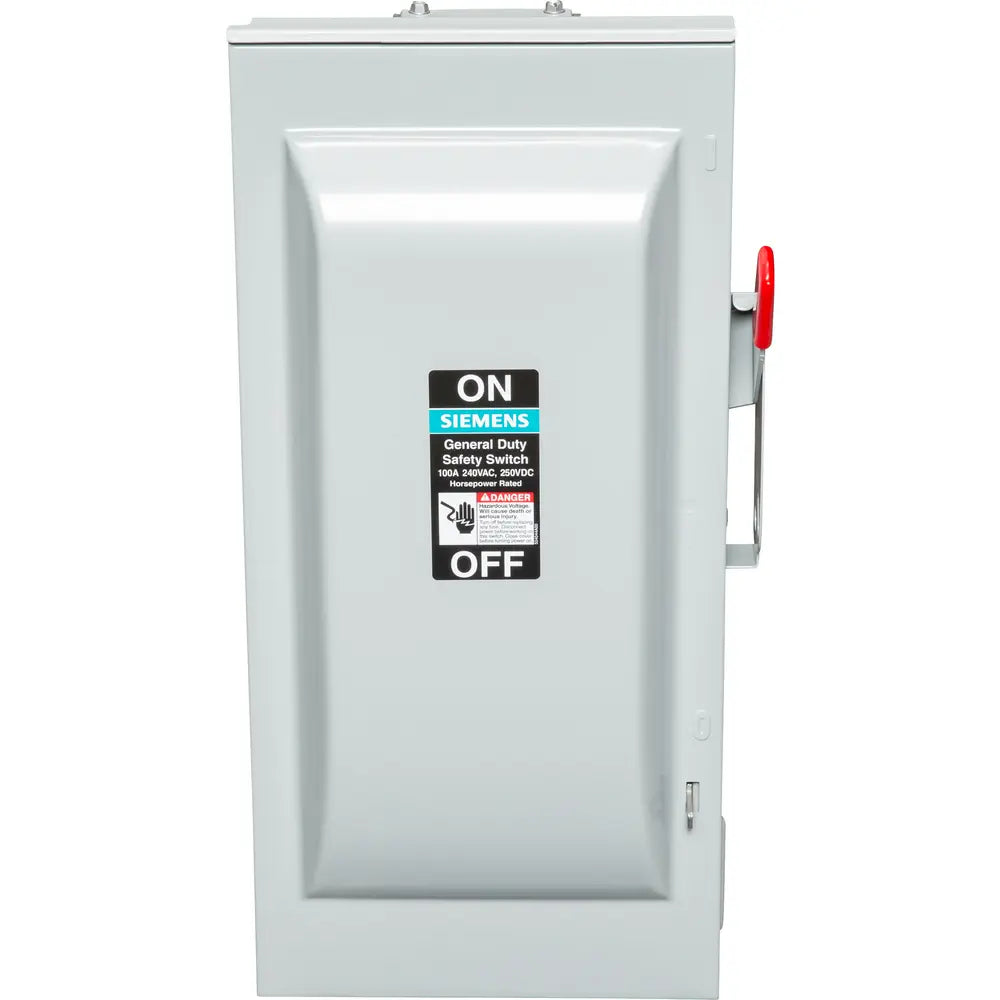

Siemens GNF323R General Duty Non-Fusible Safety Switch 240 VAC 100 Amperes NEMA 3R

Product Description

The Siemens GNF323R is a general duty non-fusible safety switch designed for low voltage circuit protection. With options for two-pole or three-pole configurations, this switch is suitable for a wide range of applications. Rated for two hundred forty volts alternating current at one hundred amperes, it is enclosed in a type three R housing suitable for outdoor use. The safety switch is built with durability in mind, capable of handling different horsepower ratings.

• Rated for 240VAC and 100A
• Available in 2-Pole or 3-Pole configurations
• Type 3R enclosure suitable for outdoor environments

Product Highlights

This safety switch meets UL standards and is designed for wet and dry locations. It is fitted with a lever actuator for ease of operation.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• UPC: 783643150027
• Type: Non-Fusible
• Depth: 7.87 inches
• Width: 13.78 inches
• Height: 25.59 inches
• Weight: 20 pounds
• Actuator: Lever
• Material: Steel
• Standard: UL
• Connection: Mechanical
• NEMA Rating: NEMA 3R
• Voltage Rating: 240 VAC
• Amperage Rating: 100 Amperes
• Number Of Poles: 3-Pole
• Frequency Rating: 50/60 Hertz
• Environmental Conditions: Wet/Dry Location
• Country of Origin: MX
• Contact Configuration: TPST
