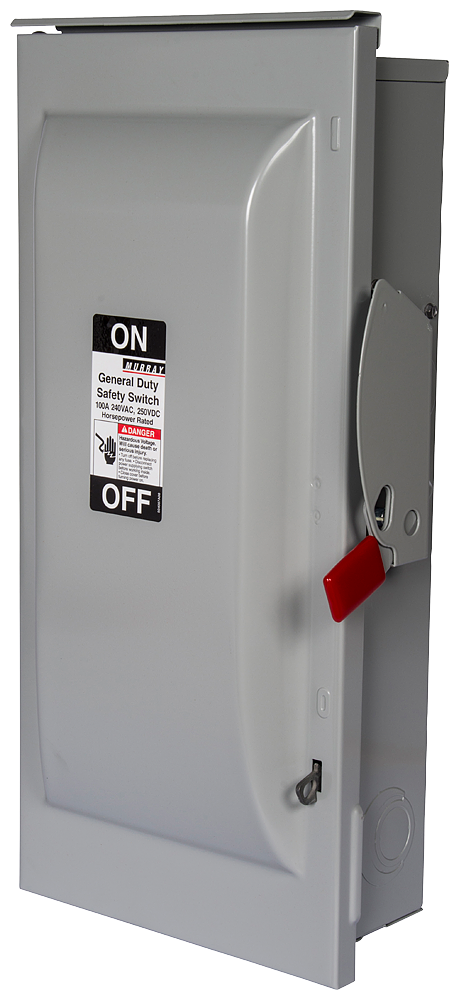

Siemens GNF323R 240 VAC/250 VDC 100 Amp 3-Pole 3-Wire NEMA 3R General Duty Non-Fusible Safety Switch

Product Description

The Siemens GNF323R is a 100 Amp, 3-pole, 3-wire safety switch. It operates at 240 VAC and 250 VDC. This safety switch does not use fuses and is designed for general duty applications. It features a NEMA 3R enclosure, suitable for outdoor use. The switch provides reliable performance in disconnecting means for service entrance loads.

• 100 Amp amperage rating
• Suitable for indoor and outdoor use with NEMA 3R enclosure
• Mechanically interlocked for safety

Product Highlights

This safety switch is ideal for powering industrial and commercial equipment. Its design allows for seamless integration into various electrical systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: GNF323R

Technical Specifications

• Voltage: 240 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Type: Non-Fusible
• Material: Steel
• Enclosure Type: NEMA 3R
• Operating Temperature: -29 to 85 degrees Celsius
• Height: 23.46 inches
• Width: 11.67 inches
• Depth: 14.68 inches
• Weight: 20 pounds
• Standard: UL 98
• Country of Origin: Mexico
