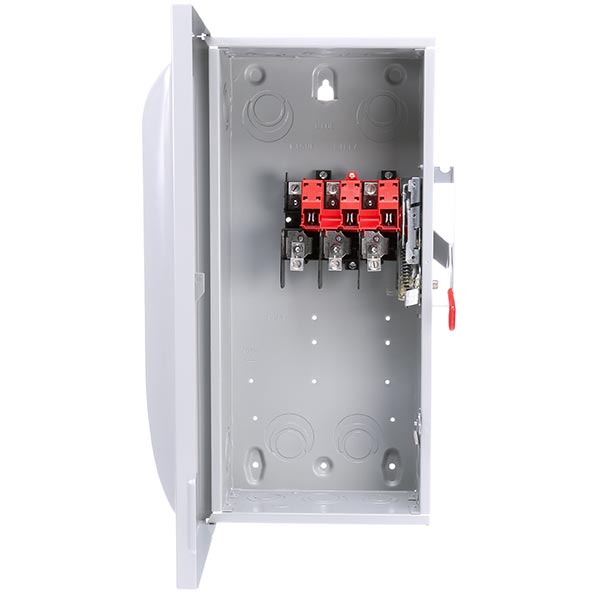

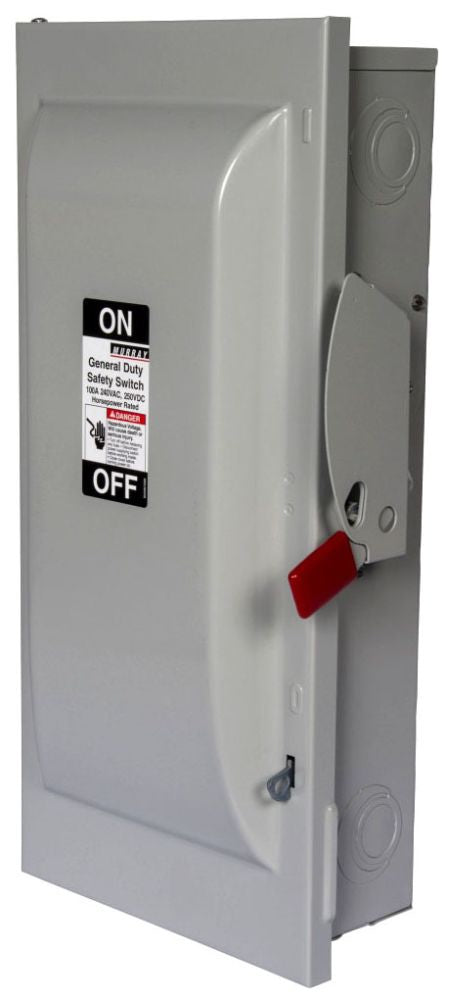

Siemens GNF323 SWITCH SAF 240VAC 100A 15HP 20HP TPST

Product Description

The Siemens GNF323 is a general duty low voltage non-fusible single throw safety switch rated at 240 VAC and 100 A. This switch is suitable for indoor applications and features a TPST contact with three poles. It is designed for both 15 hp and 20 hp usage, making it versatile for various electrical needs.

• Non-fusible design
• NEMA 1 enclosure type
• Easy installation with quick make, quick break mechanism

Product Highlights

This safety switch is UL listed and is designed to work with copper and aluminum wire, ensuring compatibility with many applications.

Product Information

Standard Information

• Manufacturer: Siemens
• Catalog Number: GNF323

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Horsepower: 15 hp, 20 hp
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Operating Temperature: -29 to 85 degrees Celsius
• Dimensions: 22.08 inches H x 10.68 inches W x 6.52 inches D
• Frequency Rating: 60 Hz
• Short Circuit Current Rating: 100 kA
