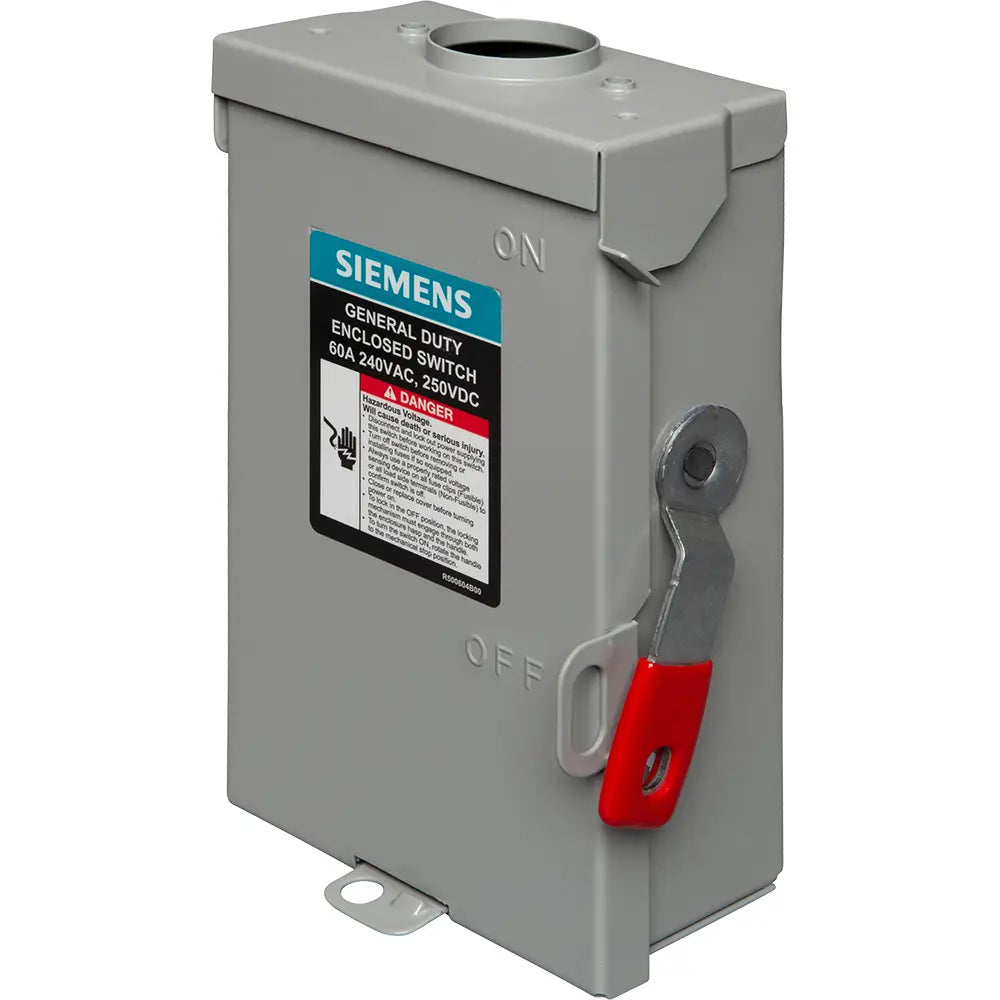

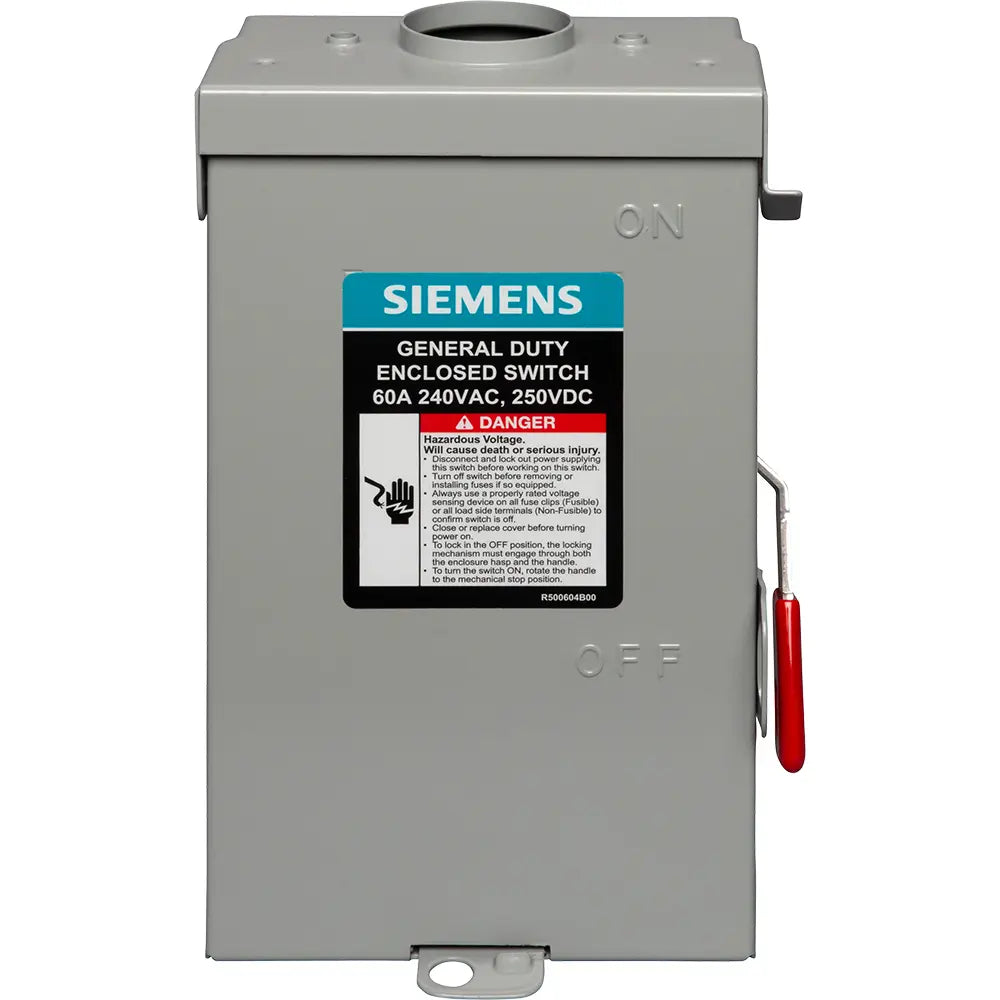

Siemens GNF322RA General Duty Non-Fusible Safety Switch 60A 3-Pole NEMA 3R

Product Description

The Siemens GNF322RA is a 60 amp general duty non-fusible safety switch. This three-pole switch is ideal for control and protection of electrical circuits. It is designed to be compact while maintaining durability and versatility. The main components, except for the lugs, are made from copper, ensuring reliable performance and conductivity.

• UL98 listed for safety compliance
• Compatible with branch or service entrance applications
• Mountable on a surface for easy installation

Product Highlights

This safety switch features load break and HP ratings. It supports Class H fuses but can be converted to accept Class R fuses without difficulty.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: GNF322RA
• Type: Non-Fusible
• Enclosure: Not Included
• Height: 9 Inches
• Width: 4 Inches
• Depth: 6 Inches
• Weight: 3.0 Pounds
• Material: Steel
• Voltage Rating: 240 VAC
• Amperage Rating: 60 Amperes
• Number Of Poles: 3-Pole
• Phase: 3-Phase
• Frequency Rating: 50/60 Hertz
• NEMA Rating: NEMA 3R
• Country of Origin: UKN
• Environmental Conditions: Dry Location
