Product Description

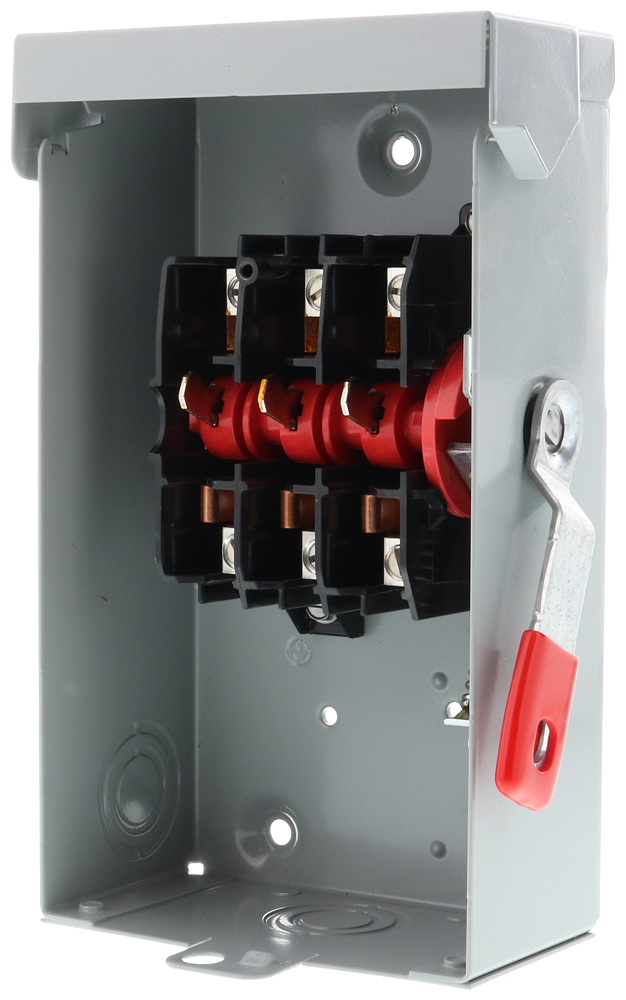

The Siemens GNF322A is a 240VAC, 60A, non-fusible safety switch. It features a double-break switching action and is rated for use in general duty applications. This switch is designed to disconnect service loads and provide safety in a variety of electrical installations.
- Type VBII Enclosed General Duty Low Voltage Safety Switch
- Features a padlock provision for secure operation
- Suitable for indoor applications with NEMA 1 enclosure
Product Highlights
This switch is ideal for HVAC applications and electrical service entrances.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: GNF322A
Technical Specifications
-
Voltage Rating: 240 VAC
-
Amperage Rating: 60 A
-
Number of Poles: 3
-
Number of Wires: 3
-
Horsepower Ratings: 10 hp, 15 hp
-
Material: Steel
-
Dimensions: 8.56 in H x 5.44 in W x 2.75 in D
-
Enclosure Type: NEMA 1
-
Temperature Rating: -29 to 85 degrees C
-
Frequency Rating: 60 Hz
-
Short Circuit Current Rating: 10/100 kA
