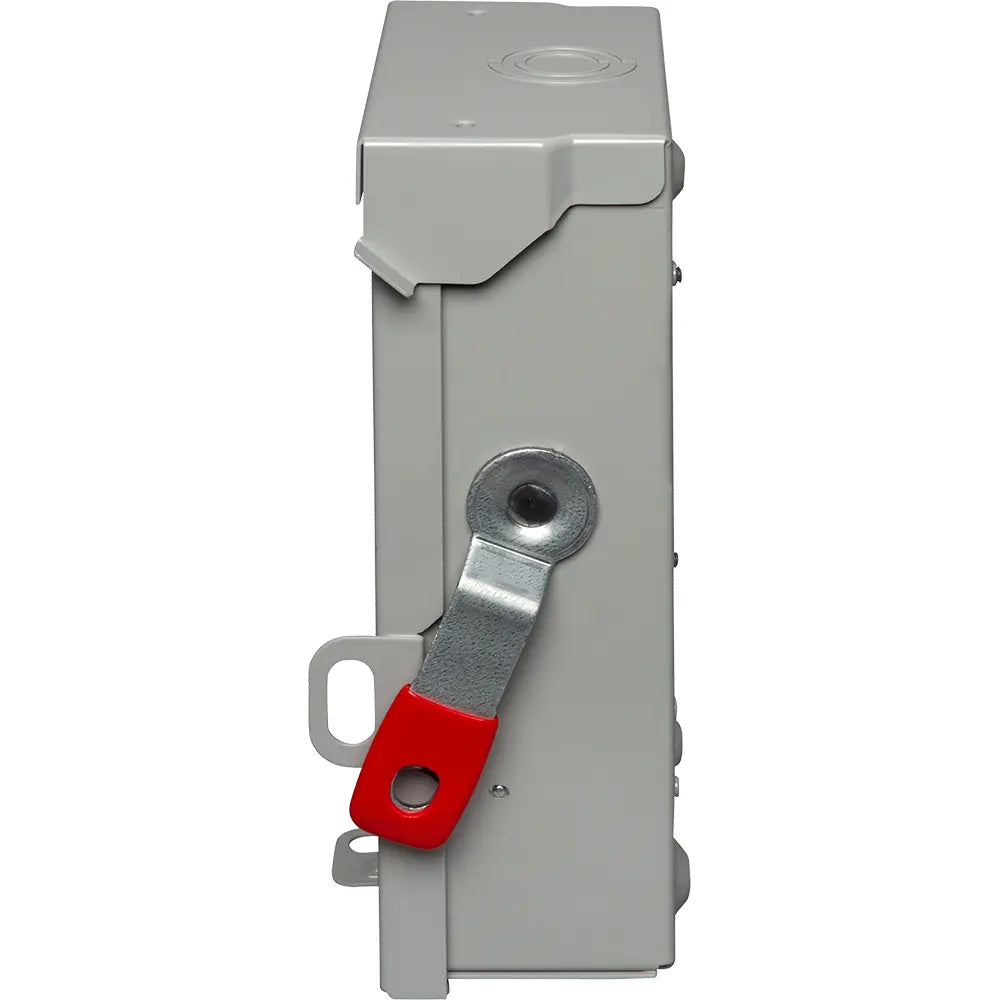

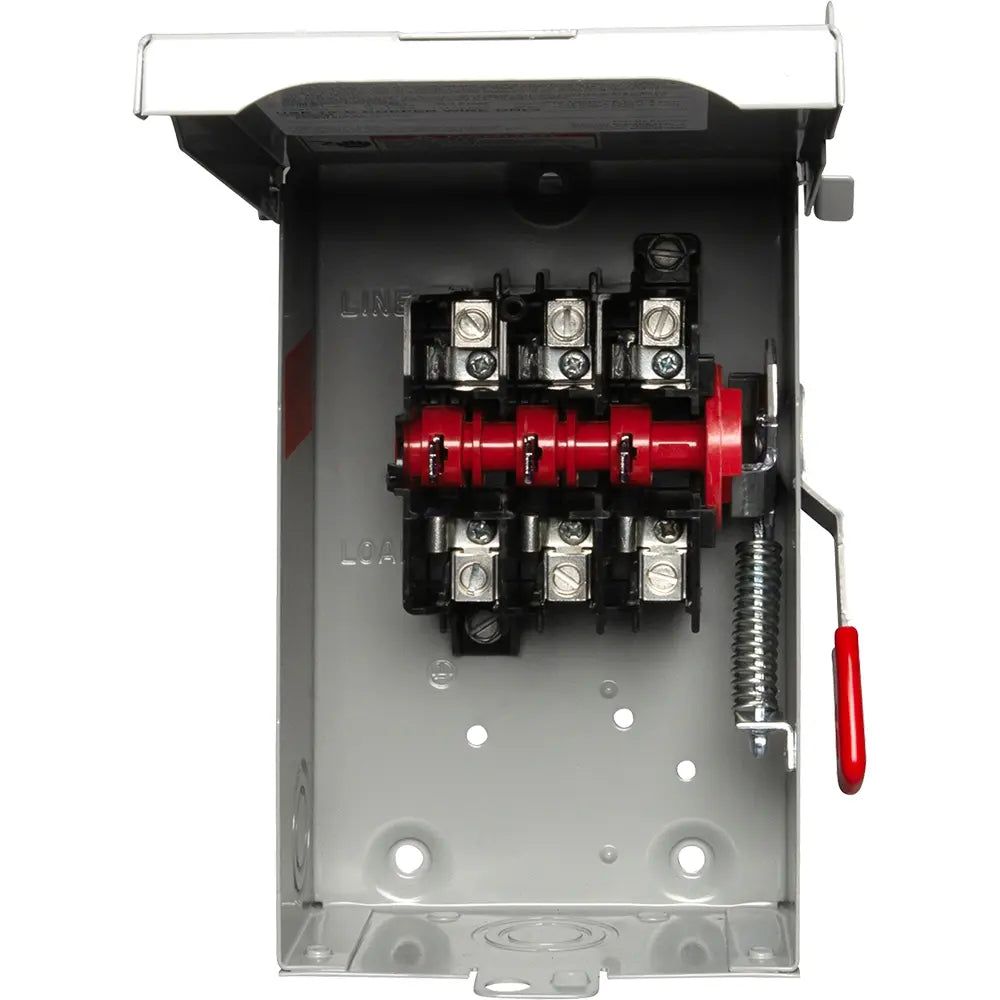

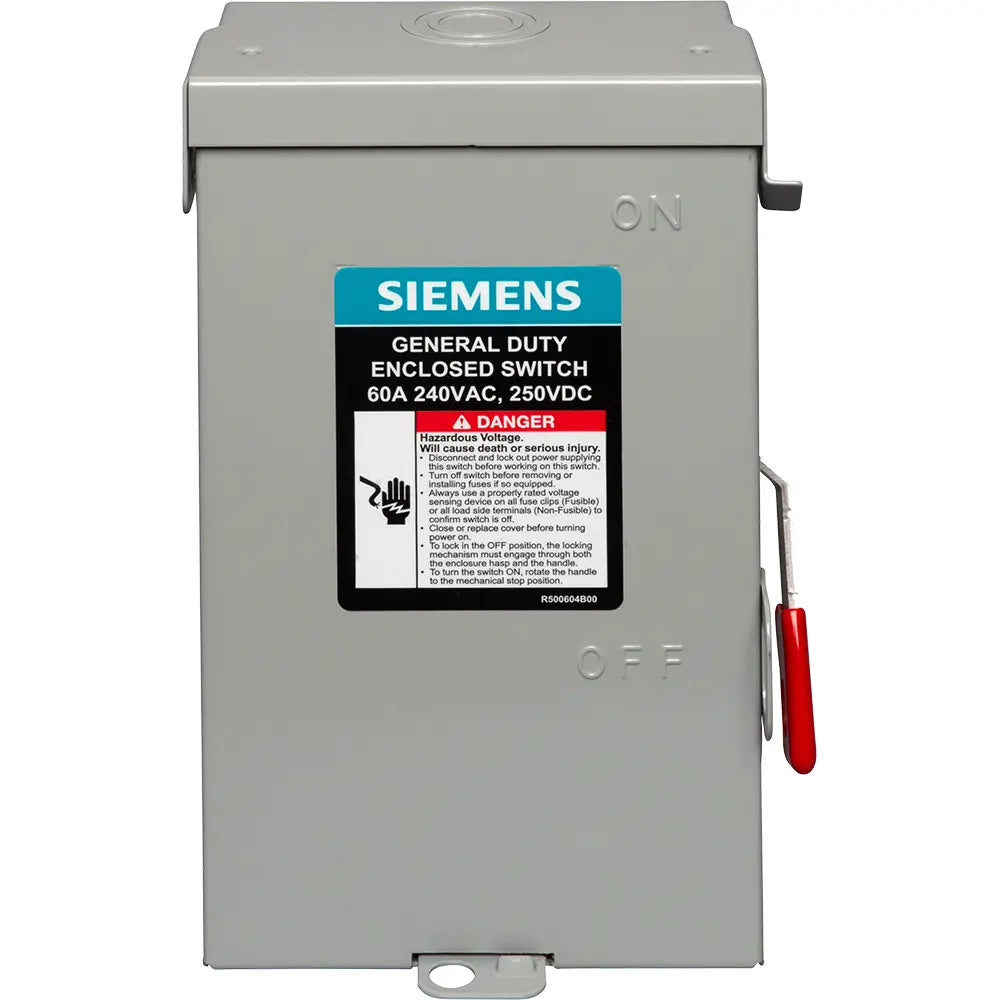

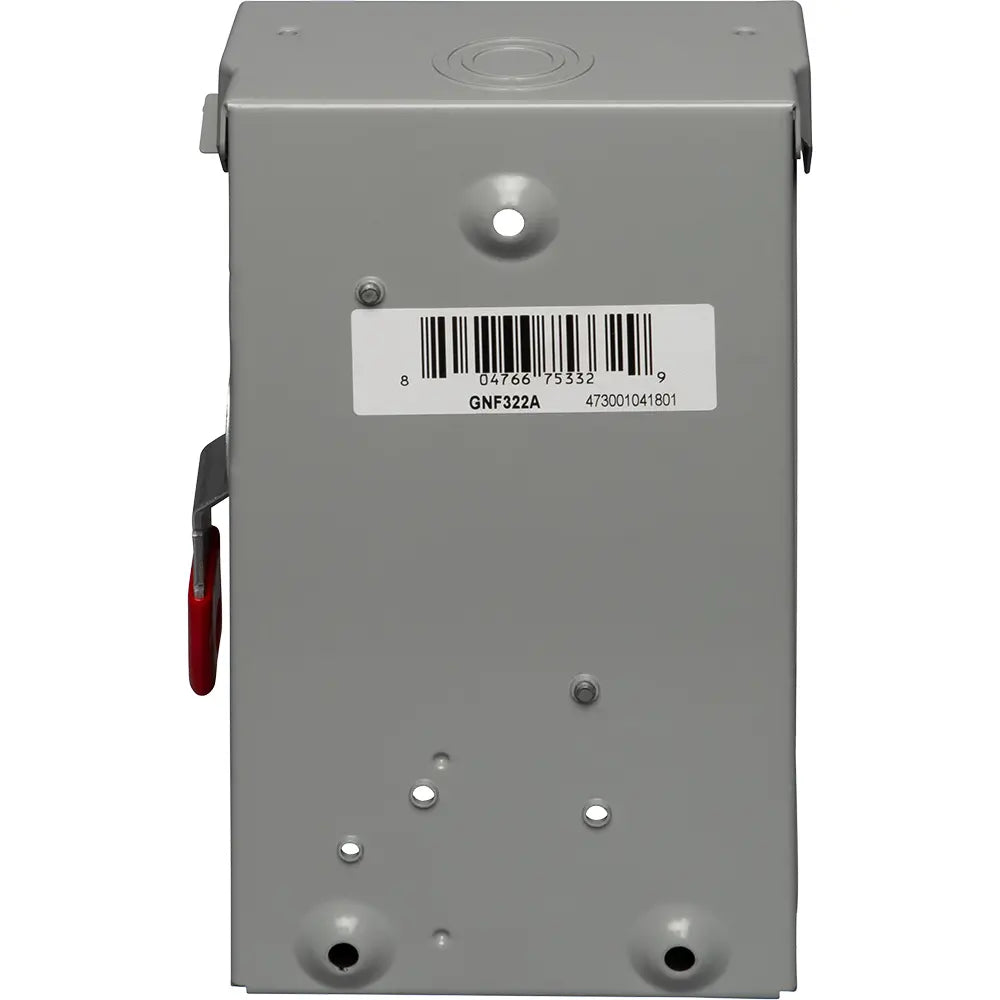

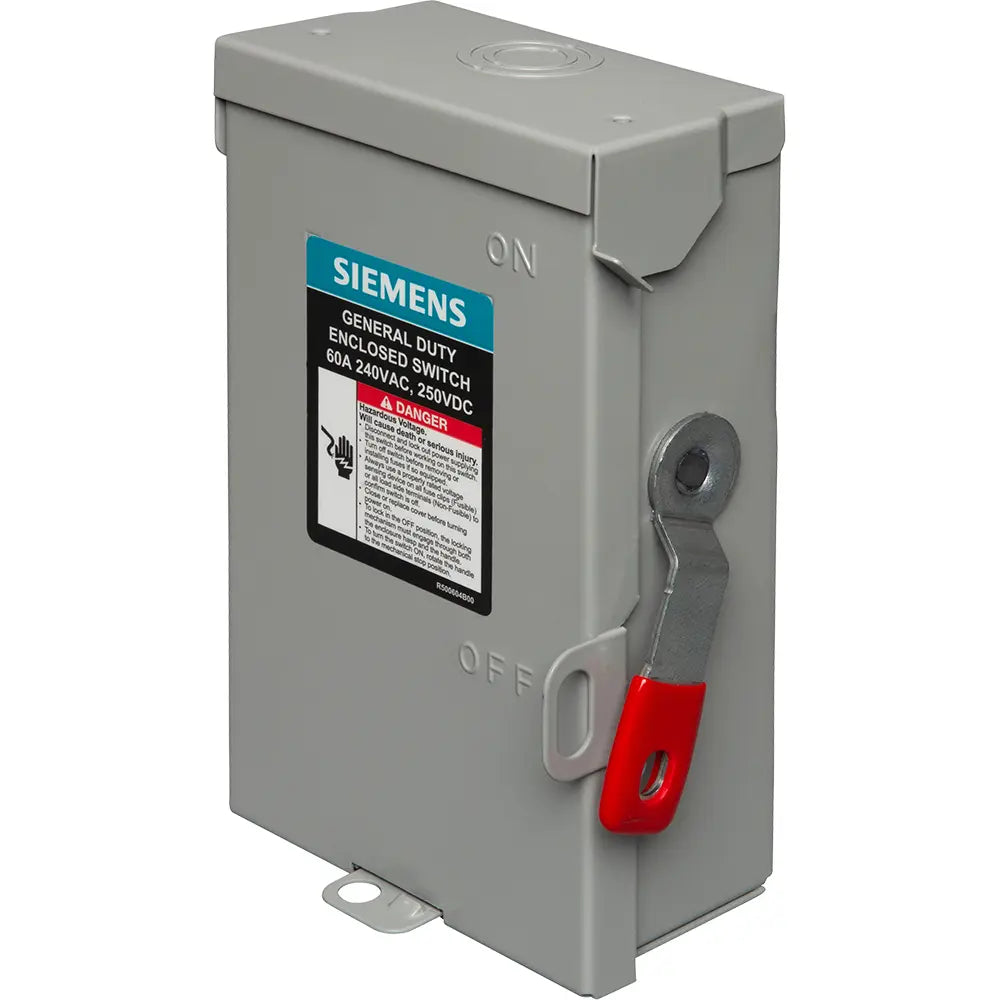

Siemens GNF322A General Duty Non-Fusible Safety Switch 60A Three-Pole NEMA 1

Product Description

The Siemens GNF322A is a 60 amp general duty non-fusible safety switch. This switch is three-pole and designed for three-wire applications. It is ideal for use in indoor settings due to its NEMA 1 rating. This unit has a voltage rating of two hundred forty volts and is suitable for both residential and commercial applications.

• Rated for 240 volts and 60 amps
• Three-pole configuration for versatile wiring options
• UL98 standard compliant for reliability

Product Highlights

The Siemens GNF322A safety switch features an enclosed design, making it resistant to dust and moisture while providing safety in electrical installations.

Product Information

Standard Information

• Brand: Siemens Industry
• Part Number: 0538-3749

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 60 Amperes
• Number Of Poles: 3-Pole
• NEMA Rating: NEMA 1
• Phase: 3-Phase
• Frequency Rating: 50/60 Hertz
• Height: 8.56 Inches
• Width: 5.44 Inches
• Depth: 2.75 Inches
• Weight: 10.318 Pounds
• Material: Steel
• Mounting: Surface
• Actuator: Lever
• Environmental Conditions: Dry Location
