Siemens GNF321RA SWITCH SAF 240VAC 30A 3 1/3 60HZ

Product Description

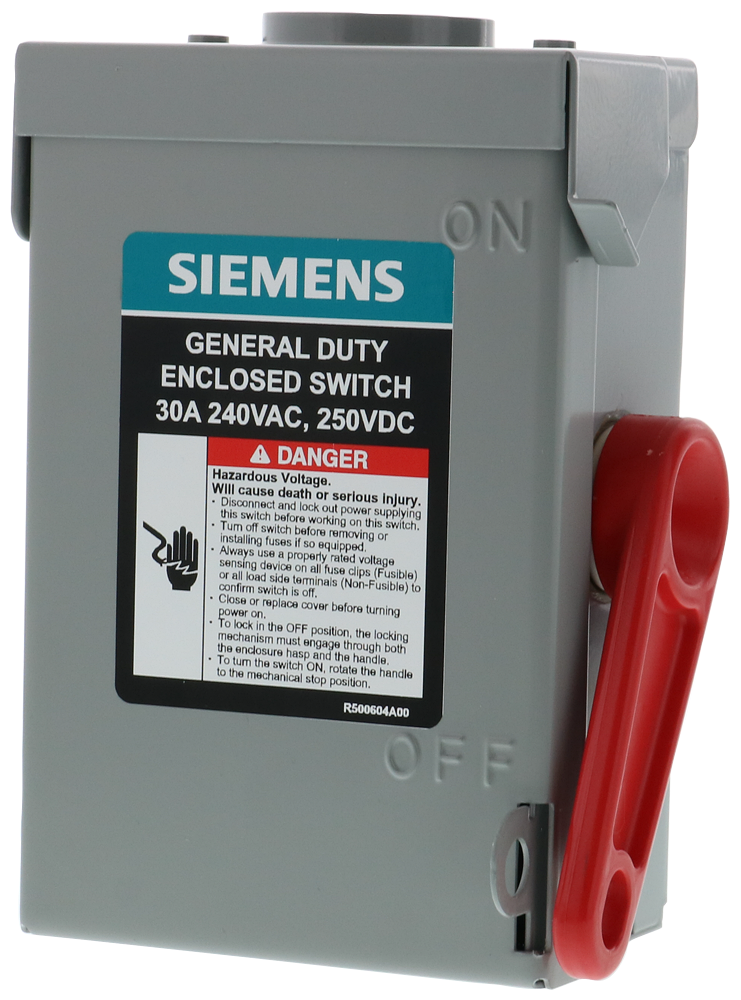

The Siemens GNF321RA is a Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw Safety Switch. It is rated for 240 VAC and 30 A, making it suitable for various electrical applications. The device features three poles and is designed for outdoor use with a NEMA 3R enclosure.

• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Number of Poles: 3

Product Highlights

This safety switch includes visible blade and double break switching action, which provides reliability in operation and maintenance. It is built with oversized lugs for easy wire termination and padlocking provisions for safety.

Product Information

Standard Information

• Manufacturer: Siemens
• Material: Steel

Technical Specifications

• Product Type: Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw
• Operating Temperature: -29 to 85 degrees Celsius
• Enclosure Type: NEMA 3R
• Frequency Rating: 60 Hz
• Dimensions: 6.35 in H x 4.56 in W x 2.7 in D
• Short Circuit Current Rating: 10/100 kA
• Horsepower Ratings: 3 hp, 5 hp, 7-1/2 hp
• Mounting Type: Surface
• UPC: 804766753343
