Product Description

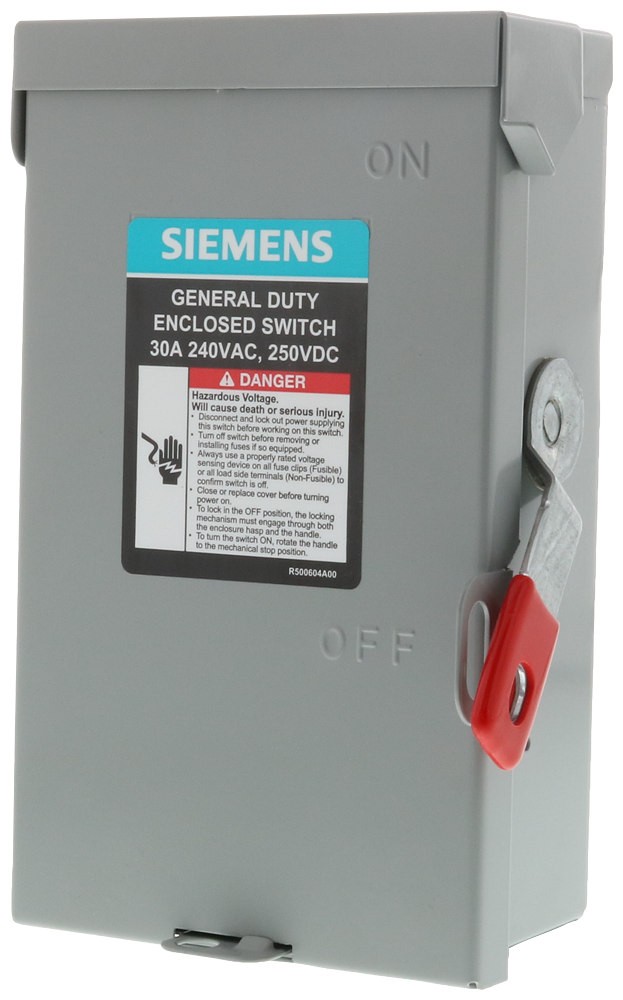

The Siemens GNF321LA is a 30 Amp, 240 Volt non-fusible safety switch. This safety switch features a three-pole, three-wire design and is suitable for general duty applications. It has a NEMA Type 1 indoor enclosure that ensures safety and reliability in various environments. Designed for circuit protection, it can handle up to seven and a half horsepower at 240 Volt AC and five horsepower at 250 Volt DC.
- General duty safety switch rated for indoor use
- Non-fusible design with a three-pole configuration
- Compatible with various AC and DC applications
Product Highlights
This safety switch is ideal for use in service equipment and indoor applications. It is built to meet UL 98 standards, ensuring high safety performance.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: GNF321LA
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 240 VAC, 250 VDC
-
Number of Poles: 3
-
Number of Wires: 3
-
Enclosure Type: NEMA 1
-
Power Rating: 7.5 HP at 240 Volt AC, 5 HP at 250 Volt DC
-
Weight: 2 lb
-
Dimensions: 6 in L x 4 in W x 7 in H
