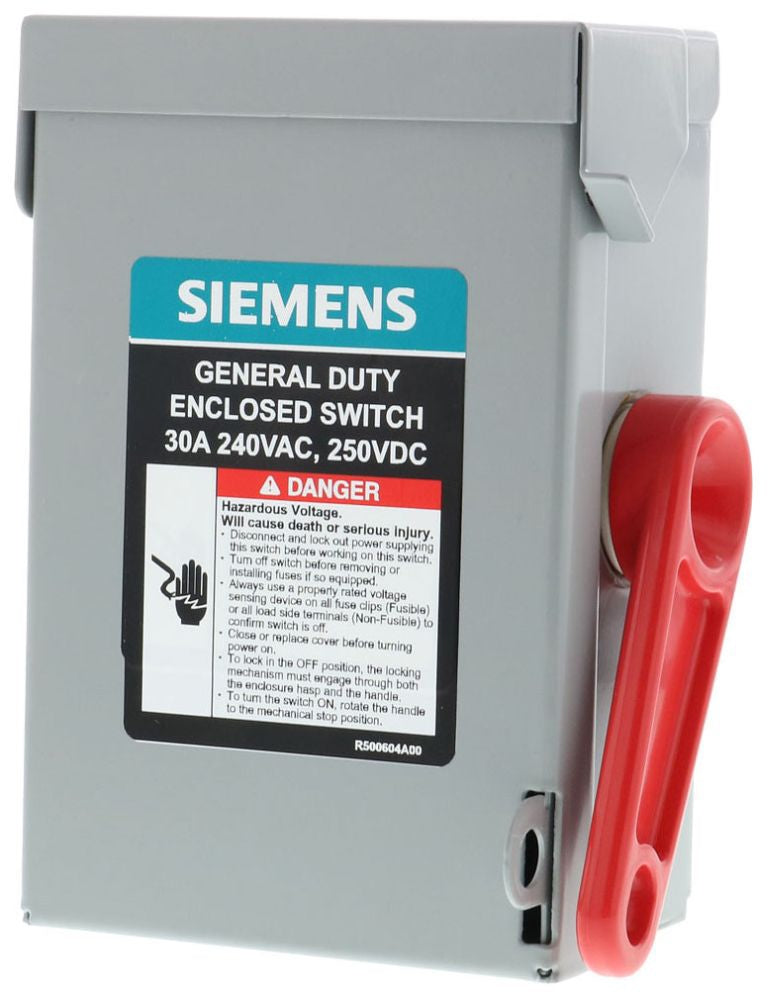

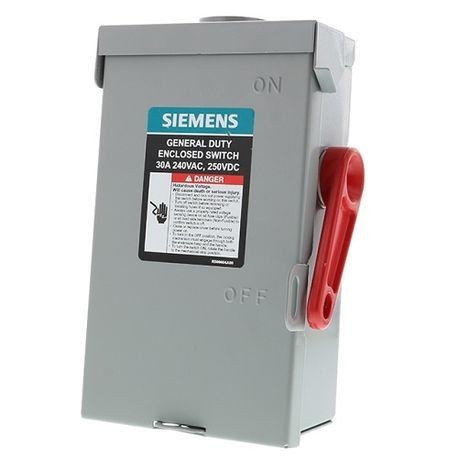

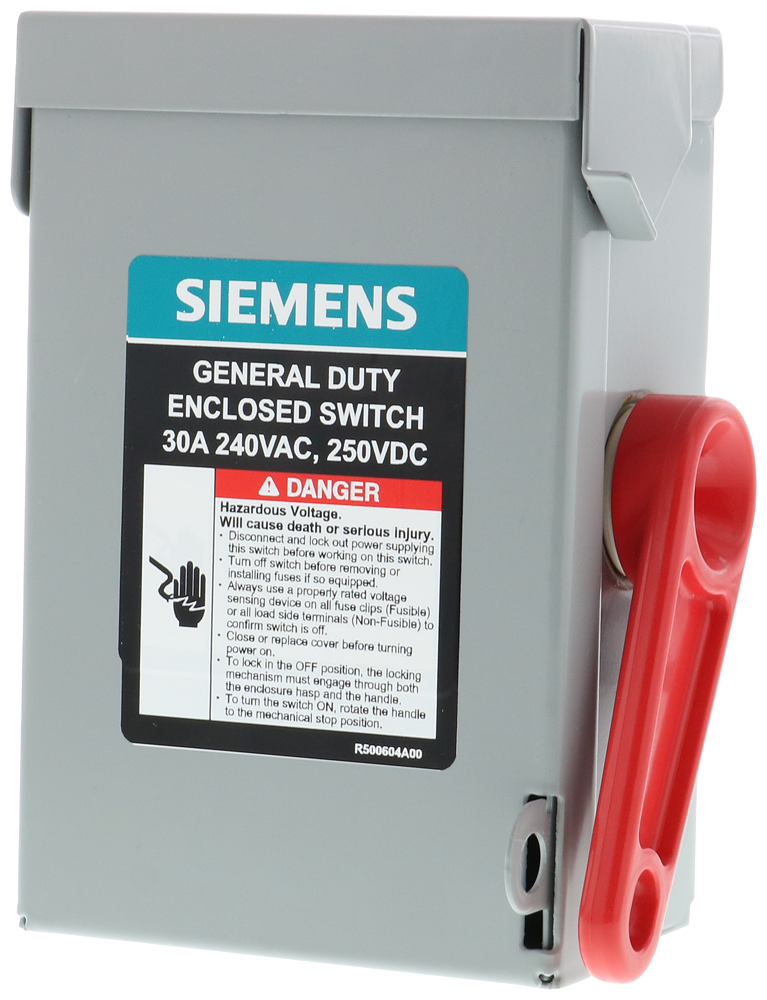

Siemens GNF321A SWITCH SAF 240VAC 30A 3 1/3 60HZ

Product Description

The Siemens GNF321A is a low voltage, enclosed safety switch designed for general duty applications. This model operates at two hundred forty volts, with a thirty amp rating, accommodating up to seven and a half horsepower. It is suitable for indoor installations, featuring a NEMA Type 1 enclosure.

• Rated for three poles and three wires
• Suitable for various indoor applications
• Equipped with padlocked provisions for safety

Product Highlights

Siemens has updated the switch design to improve overall safety and usability. The switch features a visible blade for easy operation, and it is equipped with oversized lugs for efficient wire connections.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer Part No: GNF321A

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Horsepower Ratings: 3 hp, 5 hp, 7-1/2 hp
• Enclosure Type: NEMA 1
• Frequency Rating: 60 Hz
• Number of Poles: 3
• Number of Wires: 3
• Dimensions: 6.35 in H x 4.56 in W x 2.7 in D
• Material: Steel
• Operating Temperature: -29 to 85 deg C
• Short Circuit Current Rating: 10/100 kA
