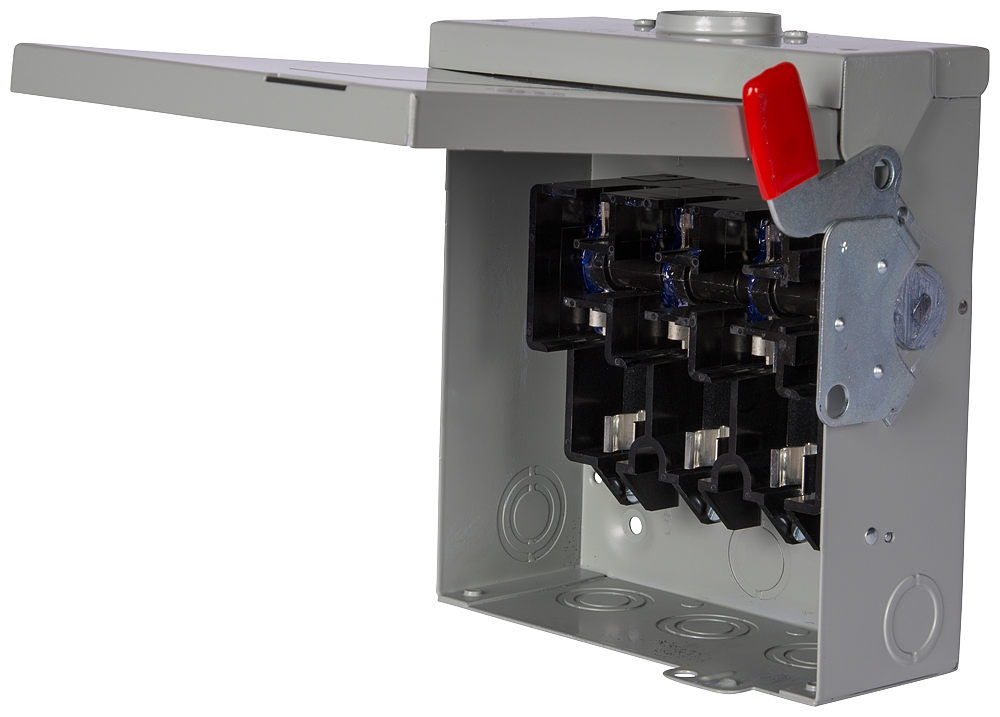

Siemens GF326NRA GDSS FUS 3P4W 240V 600

Product Description

Siemens GF326NRA is a low voltage circuit protection general duty safety switch with a three-pole design and three fuses. It is suitable for outdoor applications and features a NEMA three R enclosure. The switch is rated for 240 volts and six hundred amps. Horsepower ratings for this unit include standard time delay fuses for single-phase two-wire and three-phase three-wire connections.

• Type 3R enclosure for outdoor use
• Fused for 240VAC at 600A
• Amperage: 600A, Voltage: 240V

Product Highlights

This safety switch provides reliable service entrance labeling and is ideal for disconnecting service entrance and loads. It is designed for quick and easy installation in various environments.

Product Information

Standard Information

• Manufacturer: Siemens
• Catalog Number: GF326NRA

Technical Specifications

• Amperage: 600 Amp
• Voltage: 240 Volt
• Number of Poles: 3 Pole
• Enclosure: NEMA 3R
• Dimensions: 22.4 in width x 6.94 in depth x 45.32 in height
• Weight: 141 lb
• Material: Steel
• Mounting Type: Surface
• GTIN: 00887621872540
