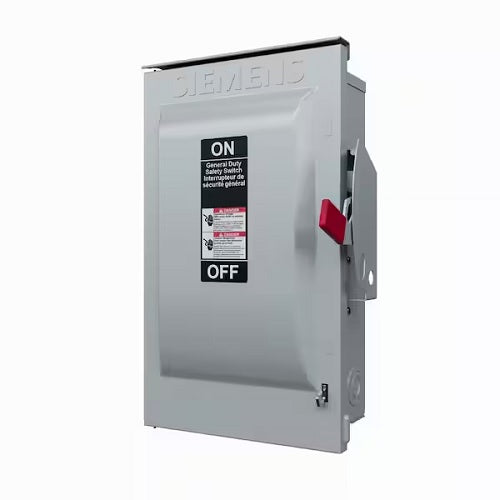

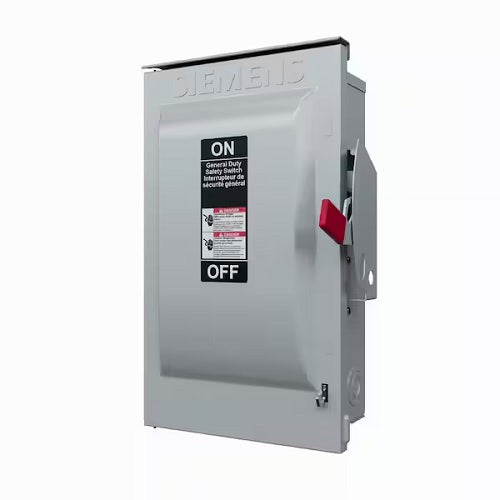

Siemens GF324NRA Single-Throw Safety Switch 200 A

Product Description

The Siemens GF324NRA is a single-throw safety switch. Rated at 200 A, this enclosed fused low voltage switch is designed for outdoor use with a Type 3R enclosure. It features mechanical lugs for connection and is constructed from steel.

• Single-throw action
• 200 A amperage rating
• Type 3R enclosure for outdoor use

Product Highlights

The Siemens GF324NRA safety switch provides reliable protection in outdoor environments. It is UL listed and suitable for 1/3 phase applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GF324NRA
• Country of Origin: MX

Technical Specifications

• Action: SINGLE THROW
• Amperage Rating: 200
• Brand Name: Siemens
• Connection: MECHANICAL LUGS
• Country of Origin: MX
• Enclosure: TYPE 3R
• Environmental_Conditions: Outdoor
• Frequency_Rating: 60
• FuseClassProvision: Fusible
• Material: Steel
• Mounting: 2 OR 3 POINT MOUNTING HOLES
• Number_Of_Poles: 3
• Operating_Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Phase: 1/3
• Standard: UL
• Sub_Brand: Siemens
• Type: Enclosed Fused Low Voltage
• Voltage Rating: 240 V AC
• Enclosure Type: NEMA 3R
• Series: A Series
• Amperage: 200 A
