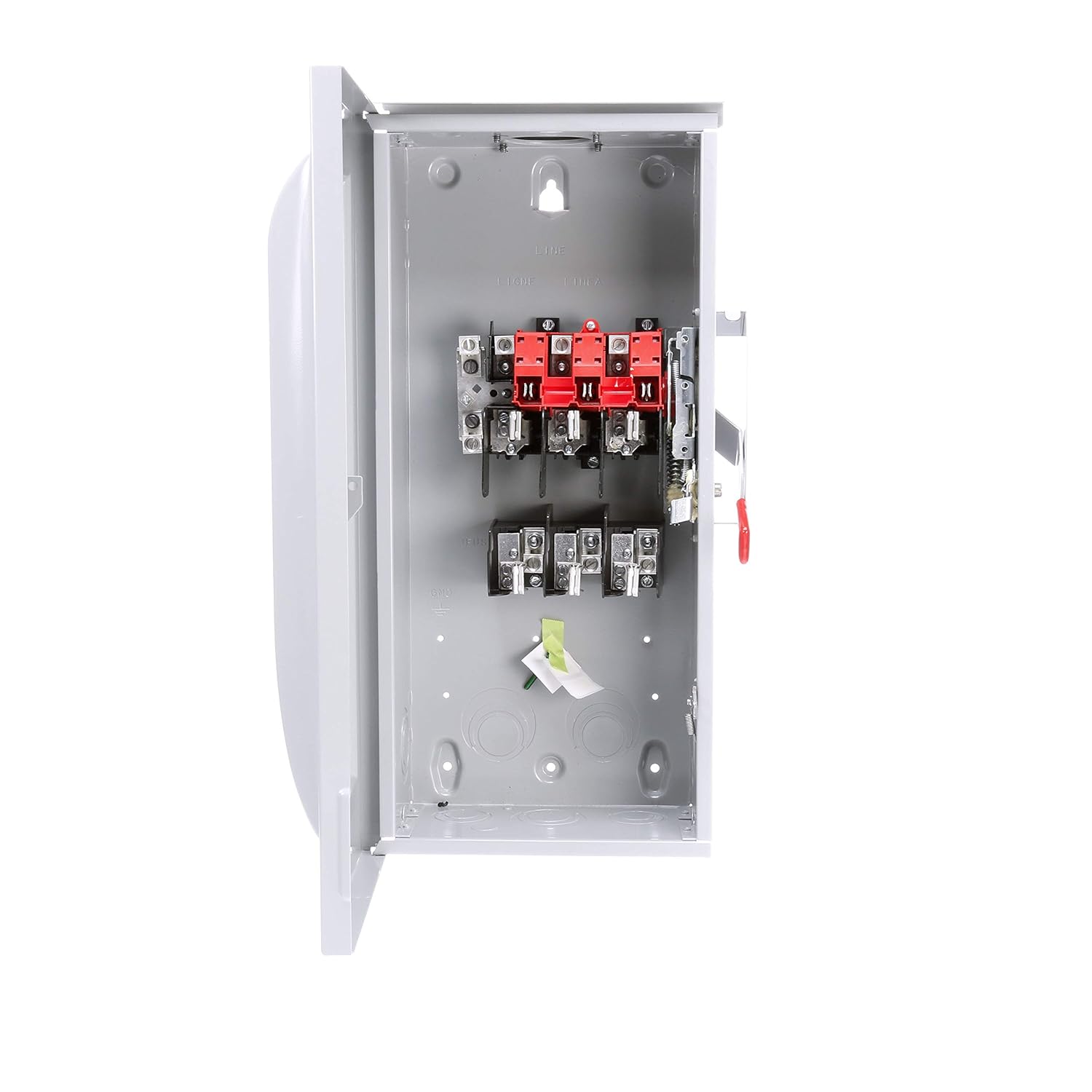

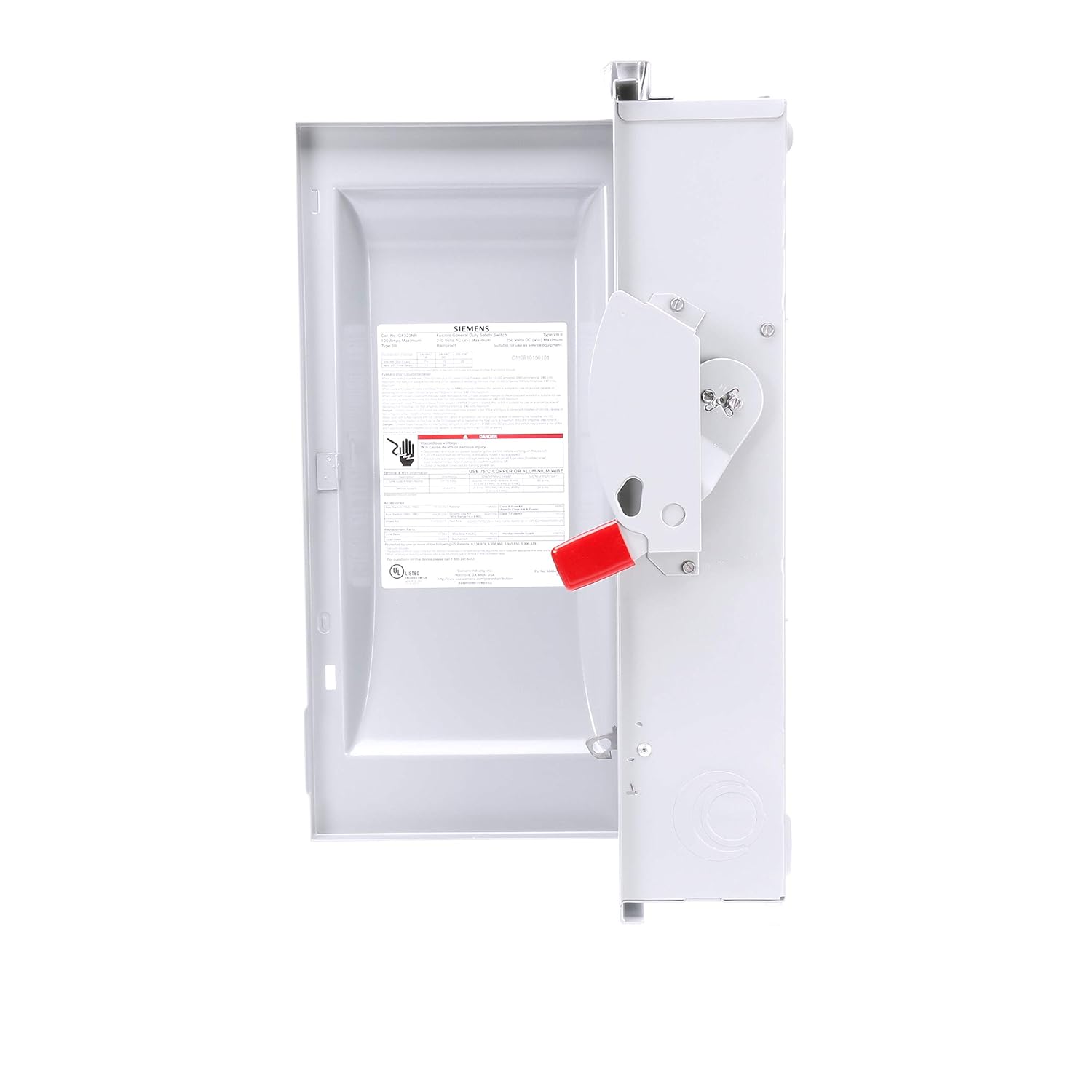

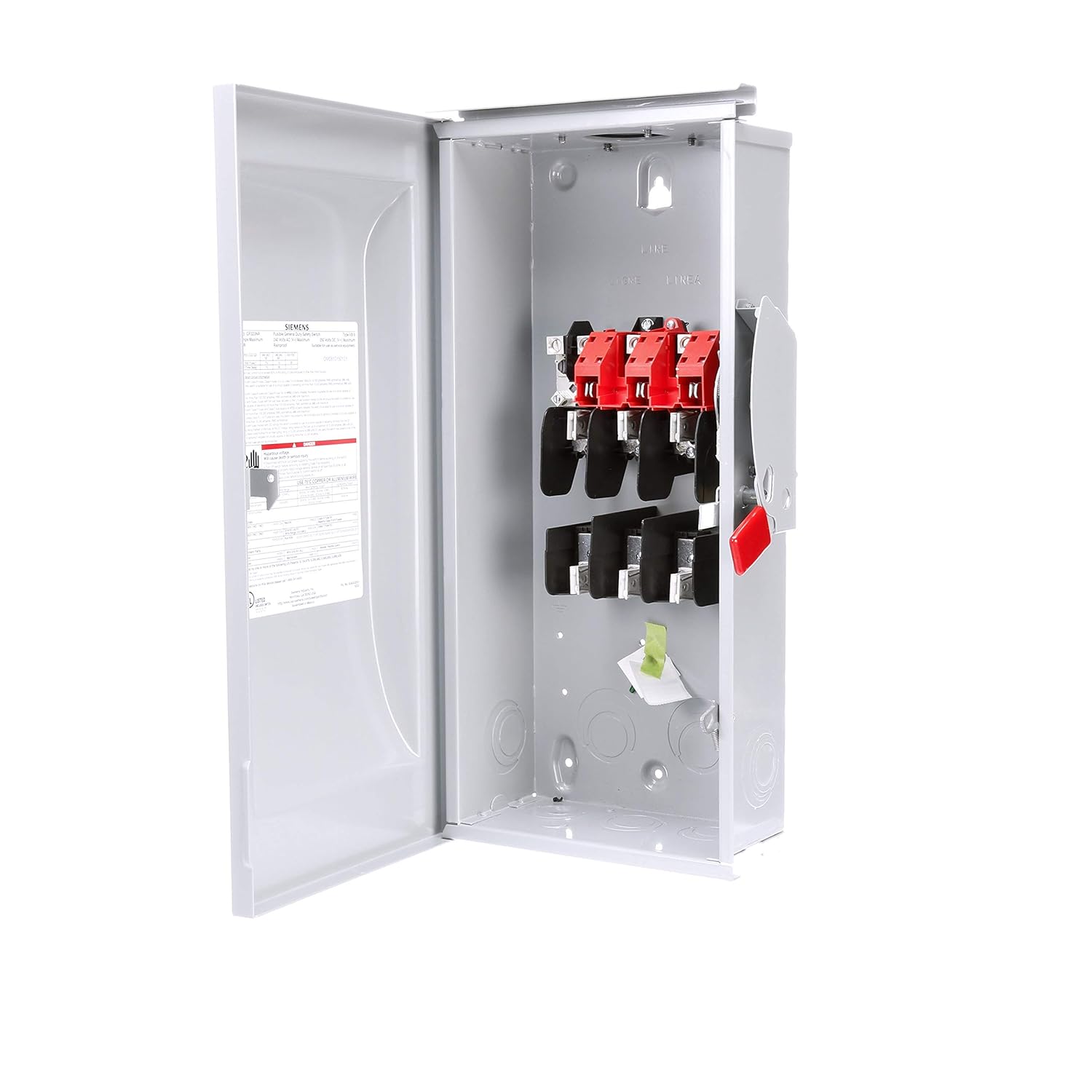

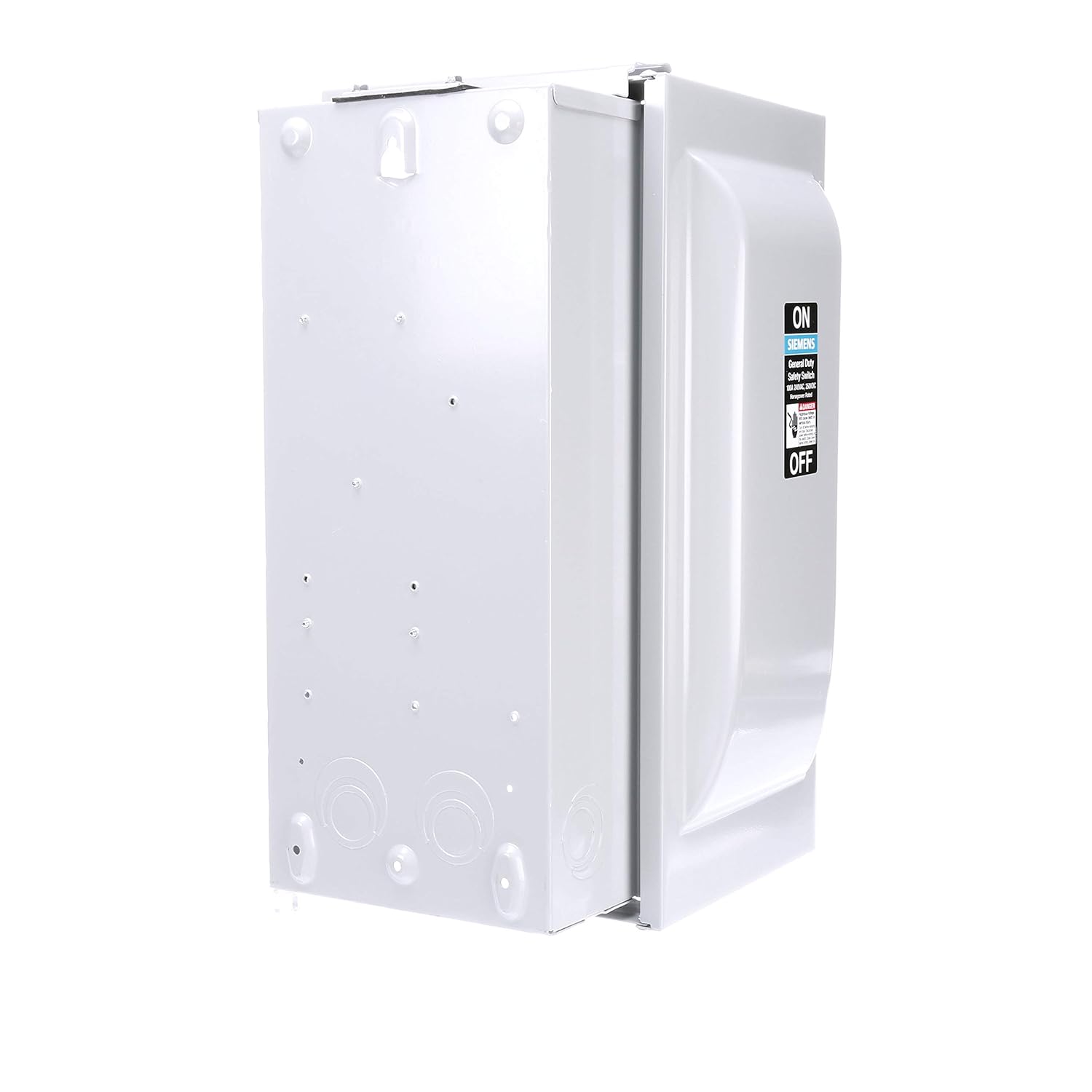

SIEMENS GF323NR Safety Switch 100 Amp 240 Volt 3 Pole 4 Wire General Duty Outdoor Rated

Product Description

The Siemens GF323NR is a robust safety switch designed for general duty applications. It is ideal for both indoor and outdoor use, equipped with a three-pole, four-wire configuration, and has a 240-volt capacity at 100 Amps. The switch is also fused for safety and rated for outdoor use.

• Rated for 100 Amps with a 240-volt capacity.
• Three-pole, four-wire configuration.
• Outdoor rated with a NEMA 3R enclosure.

Product Highlights

This safety switch features a sturdy steel housing and a visible blade, double-break switching action for reliable disconnect functionality. Its design includes generous wiring gutters that meet NECinchu00ae wire bending space requirements.

Product Information

Standard Information

• Brand: Siemens
• Model: GF323NR

Technical Specifications

• Voltage: 240 Volts
• Current: 100 Amps
• Enclosure Type: NEMA 3R
• Material: Steel
• UL Rated: Yes
• Dimensions: 25.9 x 13.9 x 7.8 inches
• Switch Action: SINGLE THROW
• Number of Poles: 3
• Number of Wires: 4
