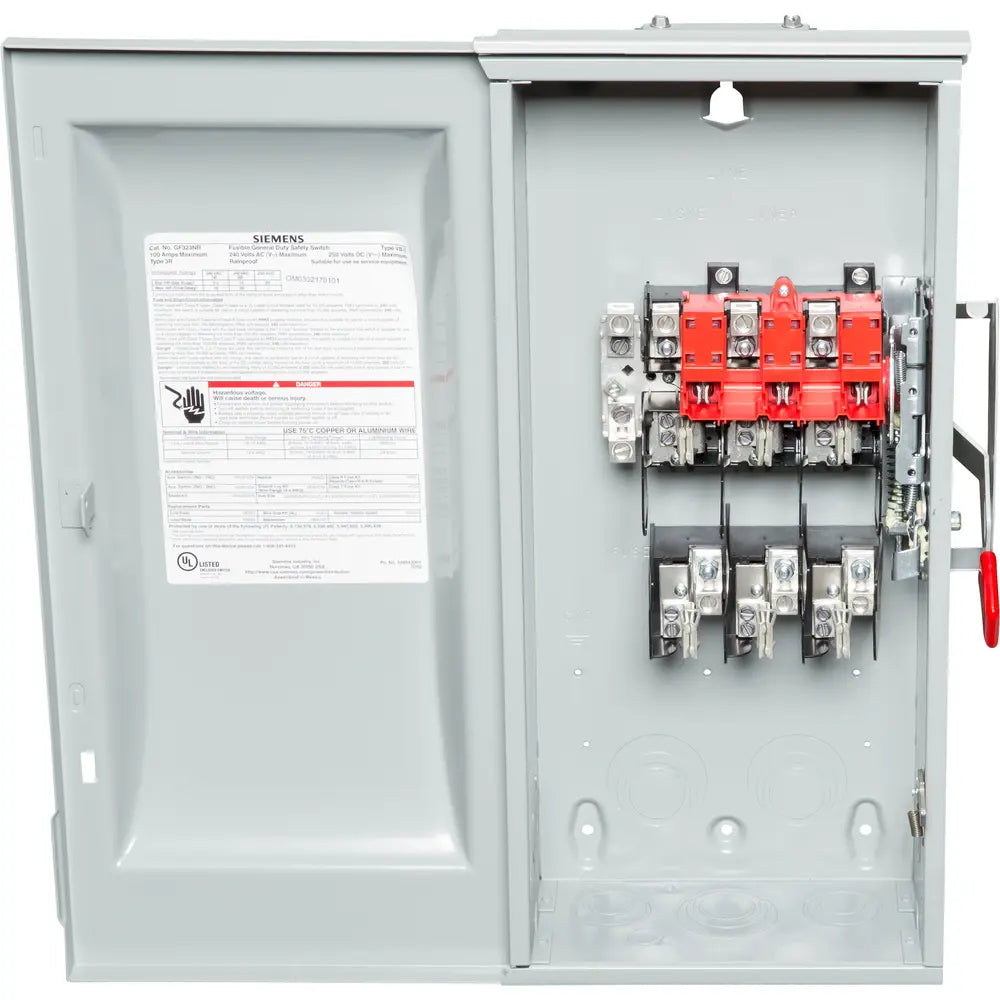

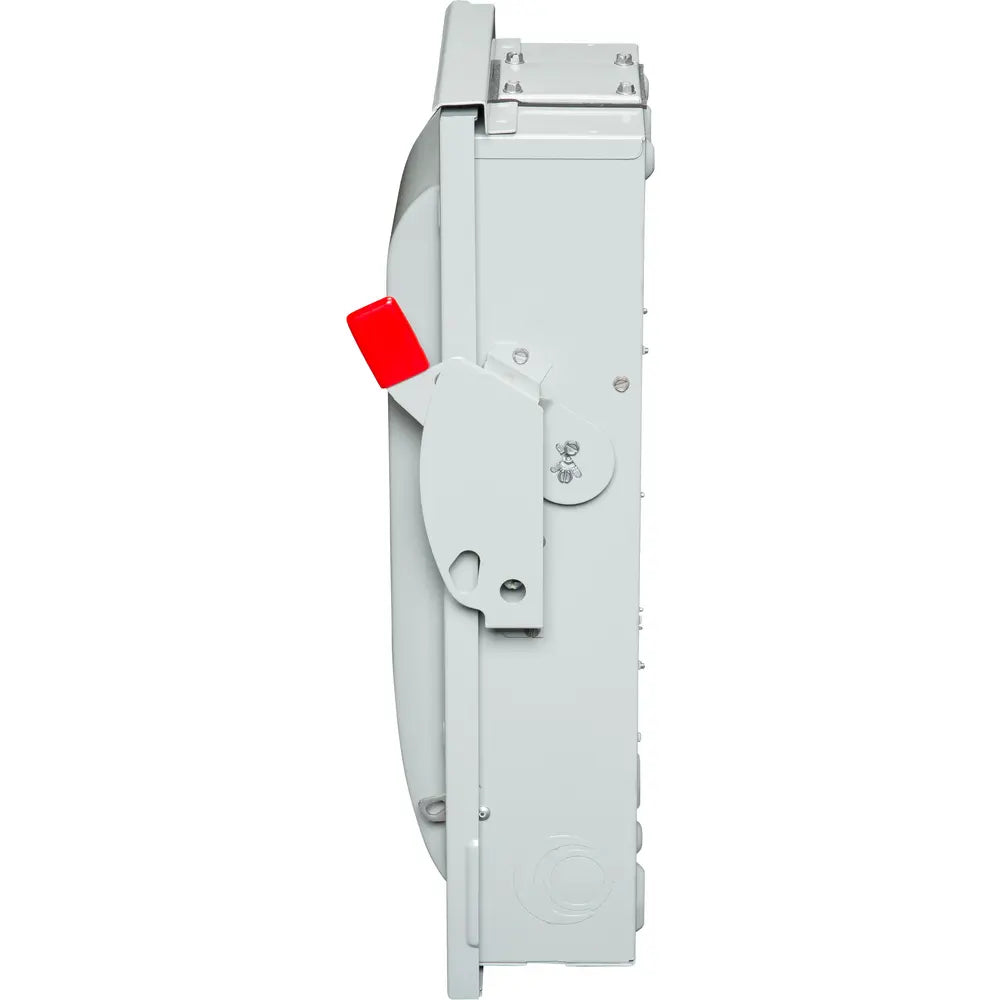

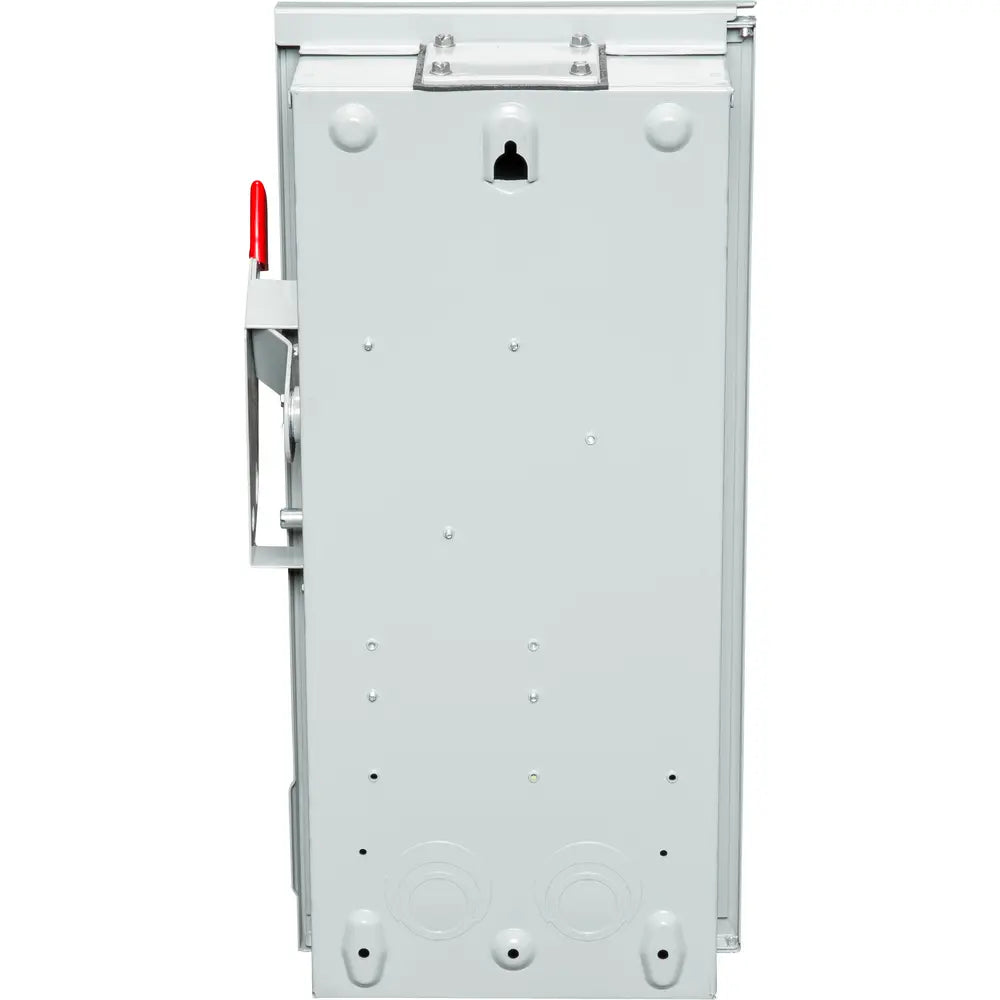

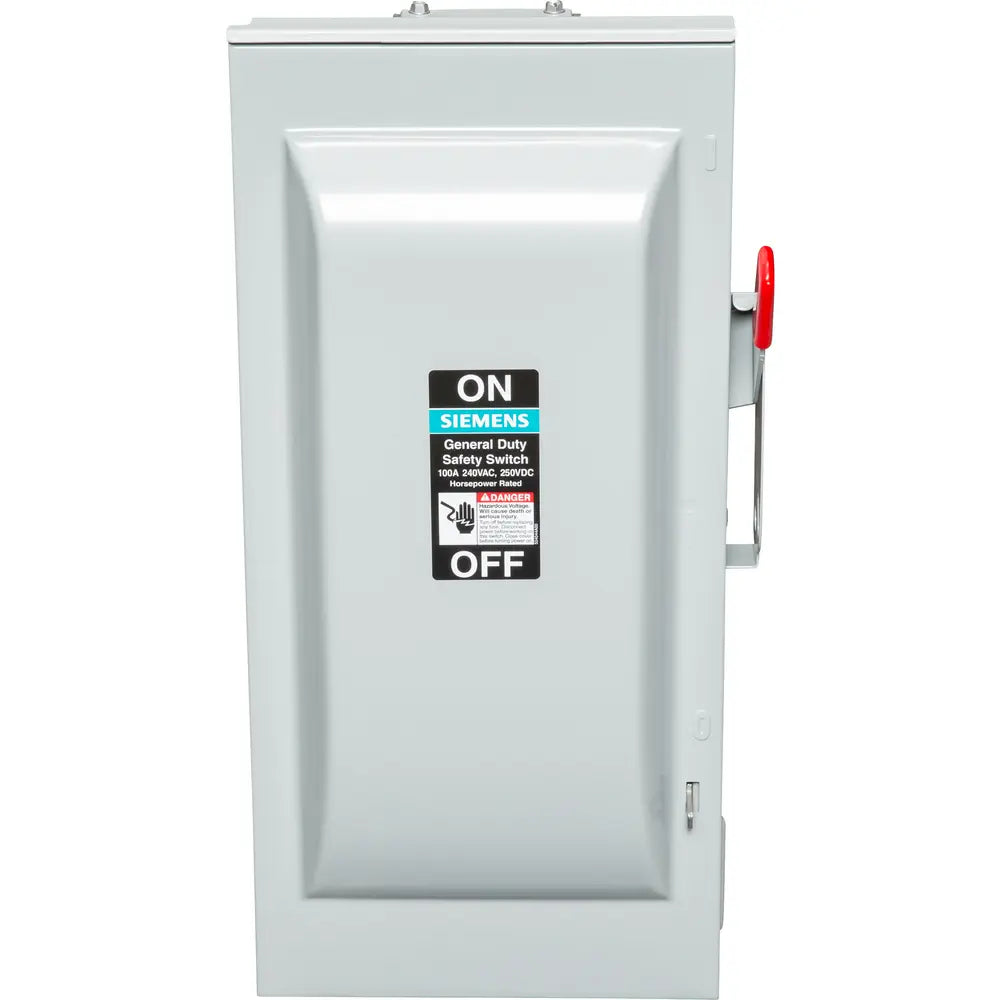

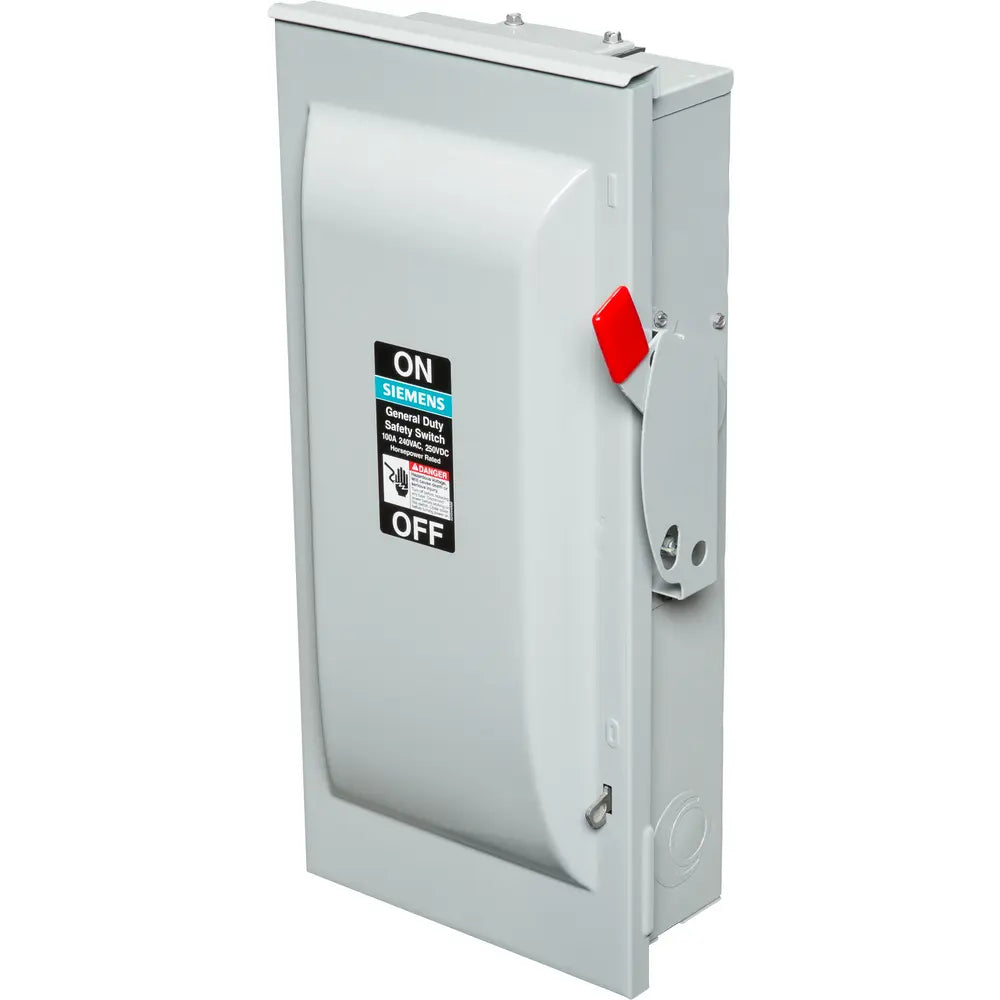

Siemens GF323NR General Duty Fused Safety Switch 100A 3-Pole 3-Fuse NEMA 3R

Product Description

The Siemens GF323NR is a general duty fused safety switch. This model operates at one hundred amperes and is designed for three-phase power systems. Enclosed in a NEMA type 3R box, it is suitable for both wet and dry locations.

• Rated for 240VAC and suitable for outdoor use
• Fused with a solid neutral for increased reliability
• Surface mount installation for versatile positioning

Product Highlights

This switch provides essential circuit protection, reducing the risk of overload and short circuits. It ensures safe operation in demanding environments.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: GF323NR
• Voltage Rating: 240 VAC
• Amperage Rating: 100 Amperes
• Number Of Poles: 3-Pole
• Phase: 3-Phase
• NEMA Rating: NEMA 3R
• Depth: 7.48 Inches
• Width: 13.78 Inches
• Height: 25.59 Inches
• Weight: 21.4 Pounds
• Material: Steel
• Standard: UL
• Environmental Conditions: Wet/Dry Location
