Product Description

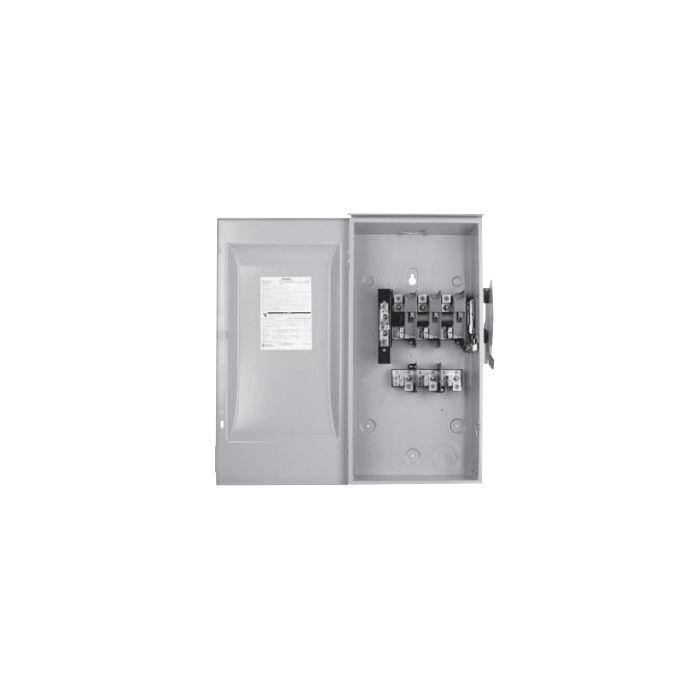

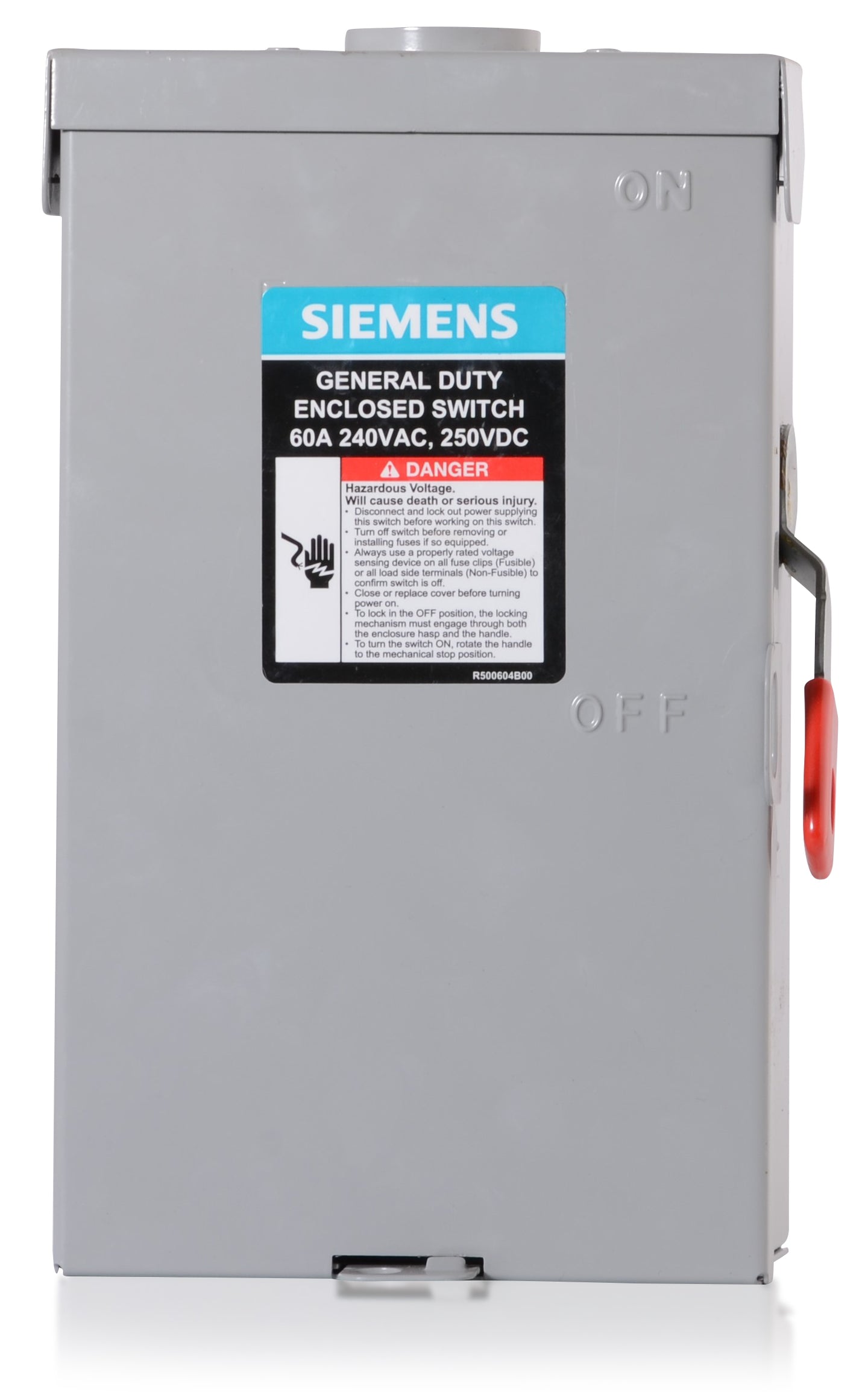

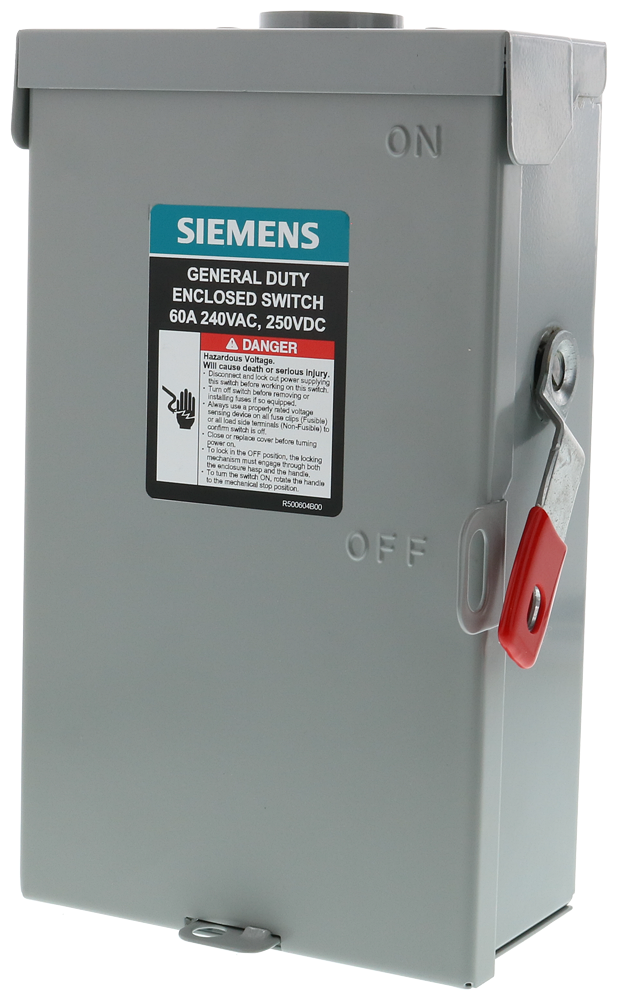

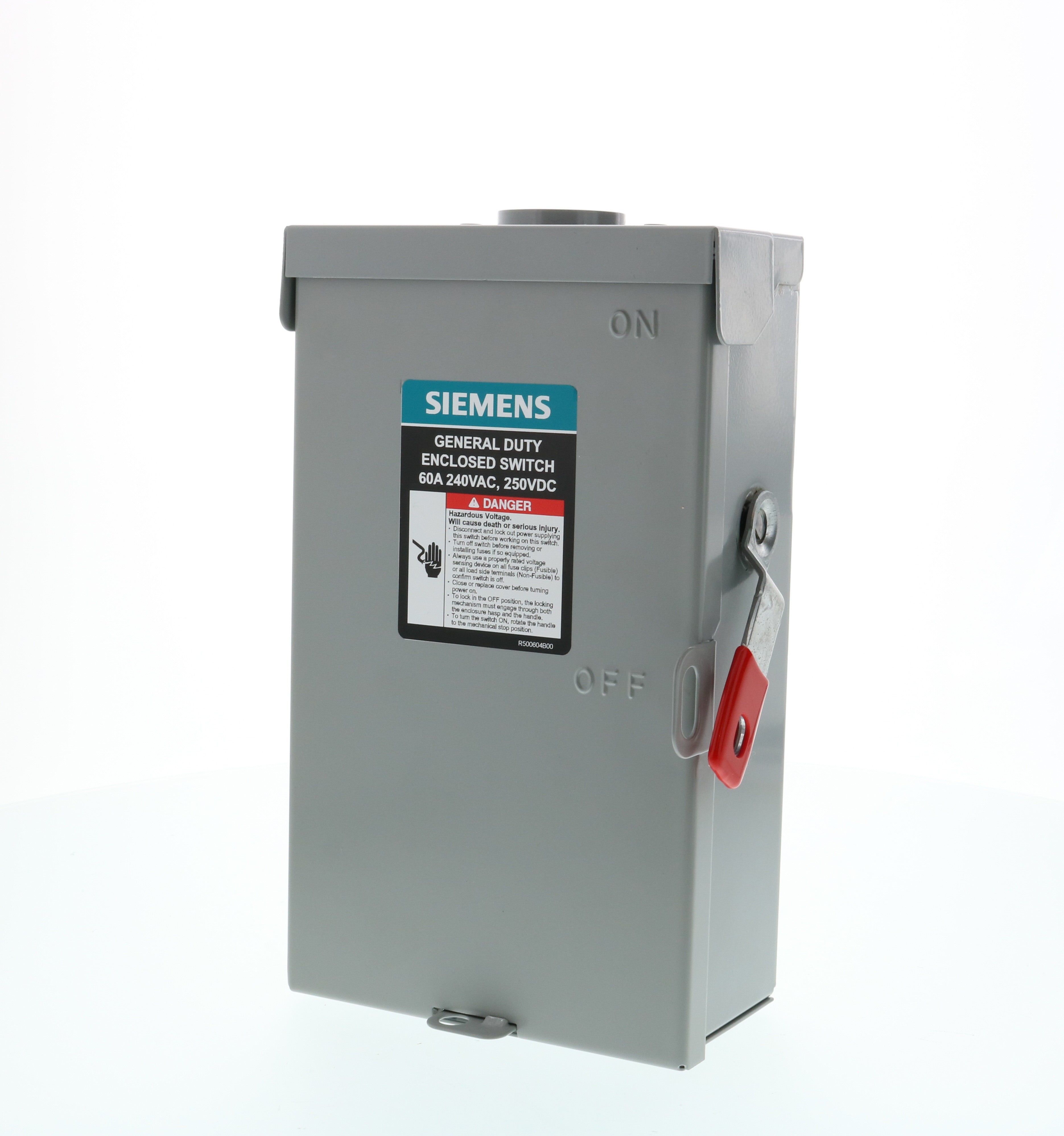

The Siemens GF322NRA is a general duty safety switch designed for reliable performance. This low voltage VBII double-break enclosed safety switch is part of the Series A. It is a 3-pole 4-wire fused general duty switch rated at 240V and 60A and features a NEMA type 3R outdoor enclosure.
- Low voltage
- Double-break enclosed safety switch
- NEMA type 3R outdoor enclosure
Product Highlights
This Siemens safety switch is designed for applications where reliable performance and continuity of service are needed.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: GF322NRA
-
Country of Origin: Mexico
Technical Specifications
-
Color: ANSI 61 Grey
-
Voltage: 240 Volts
-
Material: Steel
-
Current Rating: 60 Amps
-
Operation Mode: Off
-
Operating Voltage: 240 Volts
-
Included Components: Safety switch
-
Number of Positions: 4
-
Unit Count: 1.0 Count
-
Poles: 3-Pole
-
Wires: 4-Wire
-
Amperage: 60A
-
Enclosure: NEMA Type 3R Outdoor
-
Application: Fusible safety switch
-
Amperage Rating: 60 A
-
Enclosure Type: NEMA 3R
-
Frequency Rating: 60 Hz
-
Horsepower: 10 hp, 15 hp
-
Mounting Type: Surface
-
Number of Poles: 3
-
Number of Wires: 4
-
Phase: 1
-
Series: A Series
-
Short Circuit Current Rating: 10/100 kA
-
Temperature Rating: -29 to 85 deg C
-
Voltage Rating: 240 VAC
-
Actuator: SINGLETHROW
-
Operating Cycles: 10k
-
Ambient Temperature: -29 C
-
Operating Temperature: -29 degrees C
-
Sub Brand: VBII
-
Type: General Duty Safety Switch
-
Duty Rating: General Duty
-
Connection Type: Mechanical Lugs
-
Nema Rating: 3R
-
Approval: UL
-
Fusibility: Fusible
-
Contact Configuration: 3PST
-
AC Voltage Rating: 240 Volt
-
DC Voltage Rating: 250 Volt
-
Fuse Provision: Fusible
-
Fuse Type: Class H
-
Neutral Type: Solid
-
Power Rating: 10 HP at 250 Volt DC
-
Standards: UL 98
-
Environment: Indoor/Outdoor
-
Current Type: AC
-
For Use With: Class H, R, T Fuse
-
Housing Material: Steel
-
Mounting Style: Surface Mount
-
Enclosure Material: Galvanized Steel
-
NEMA Enclosure Rating: 3R
-
Metallic / Non-Metallic: Metallic
-
Number of Poles & Wires: 3 Pole / 4 Wire
-
Material of Construction: Steel
-
Combo Environmental Protection: Indoor/Outdoor / 3R
