Siemens GF322NR General Duty Fusible Safety Switch 60 Amp

Product Description

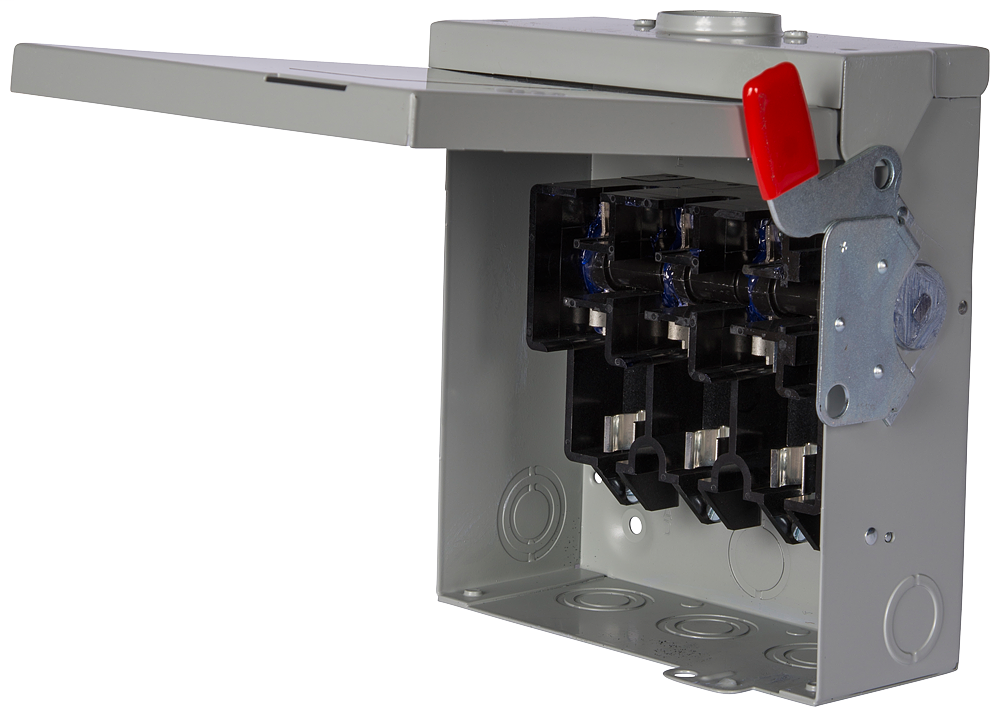

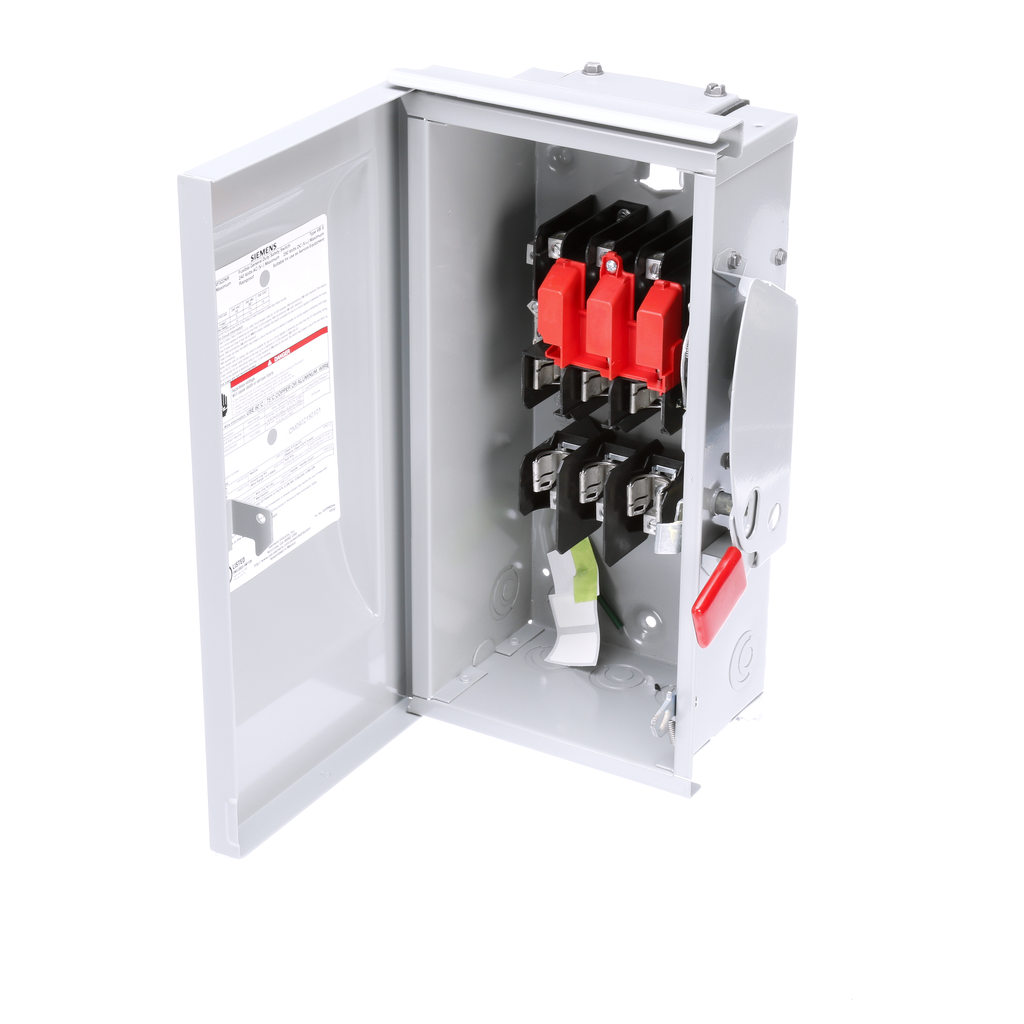

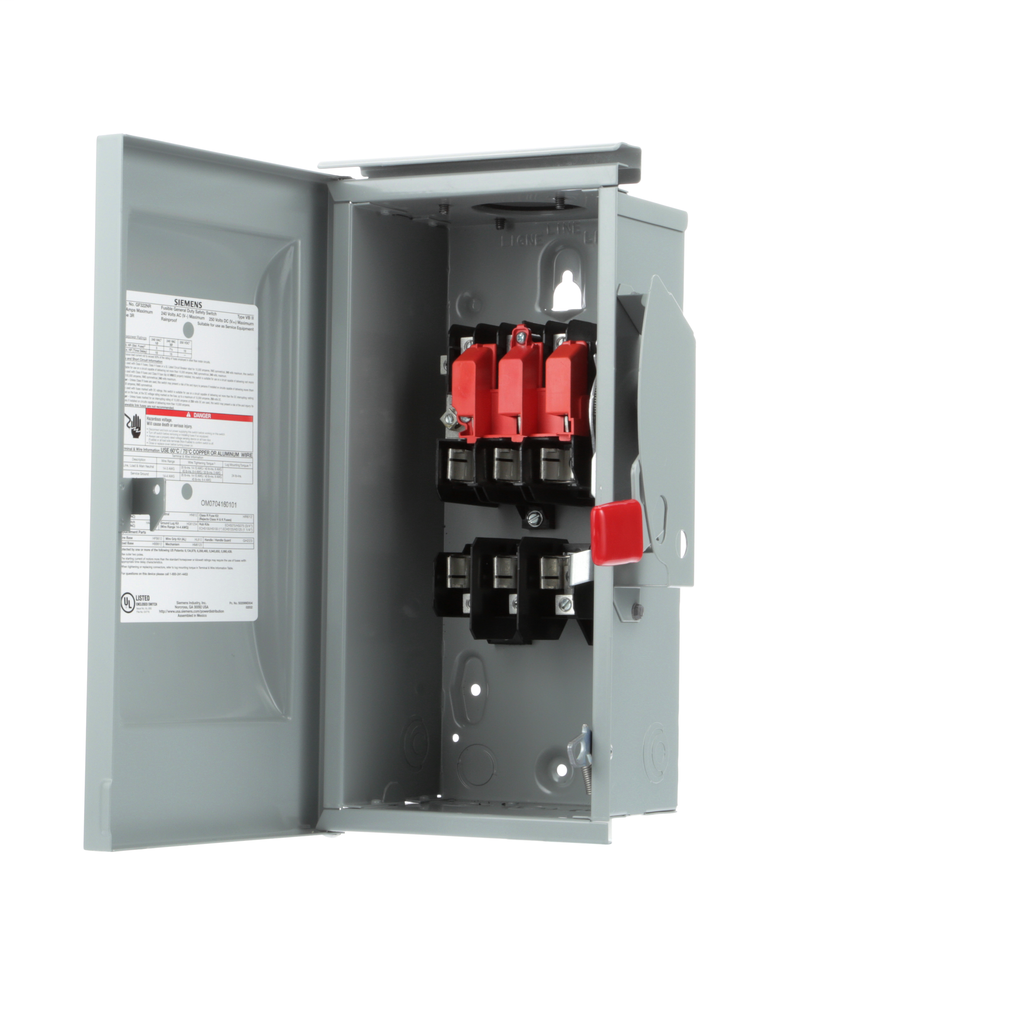

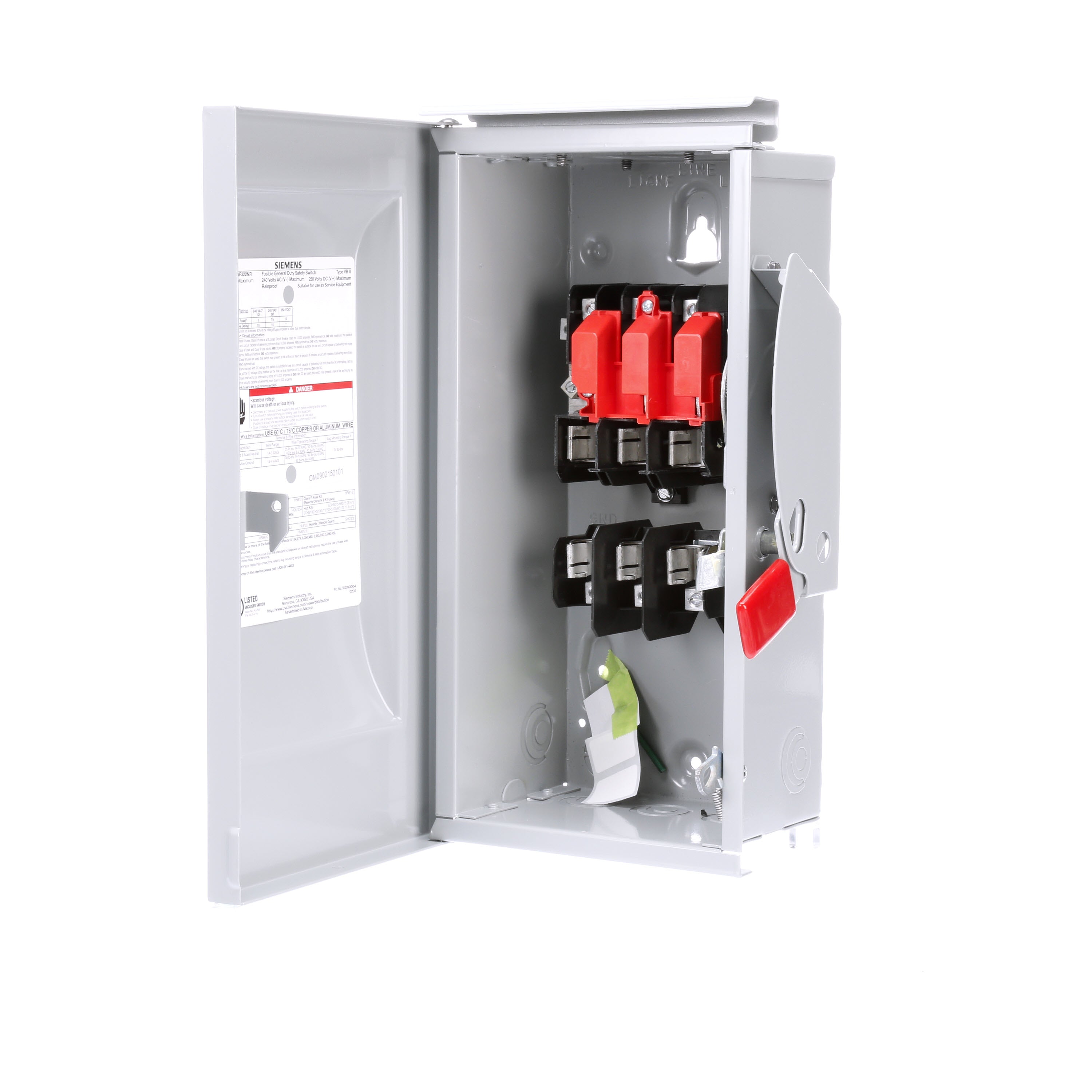

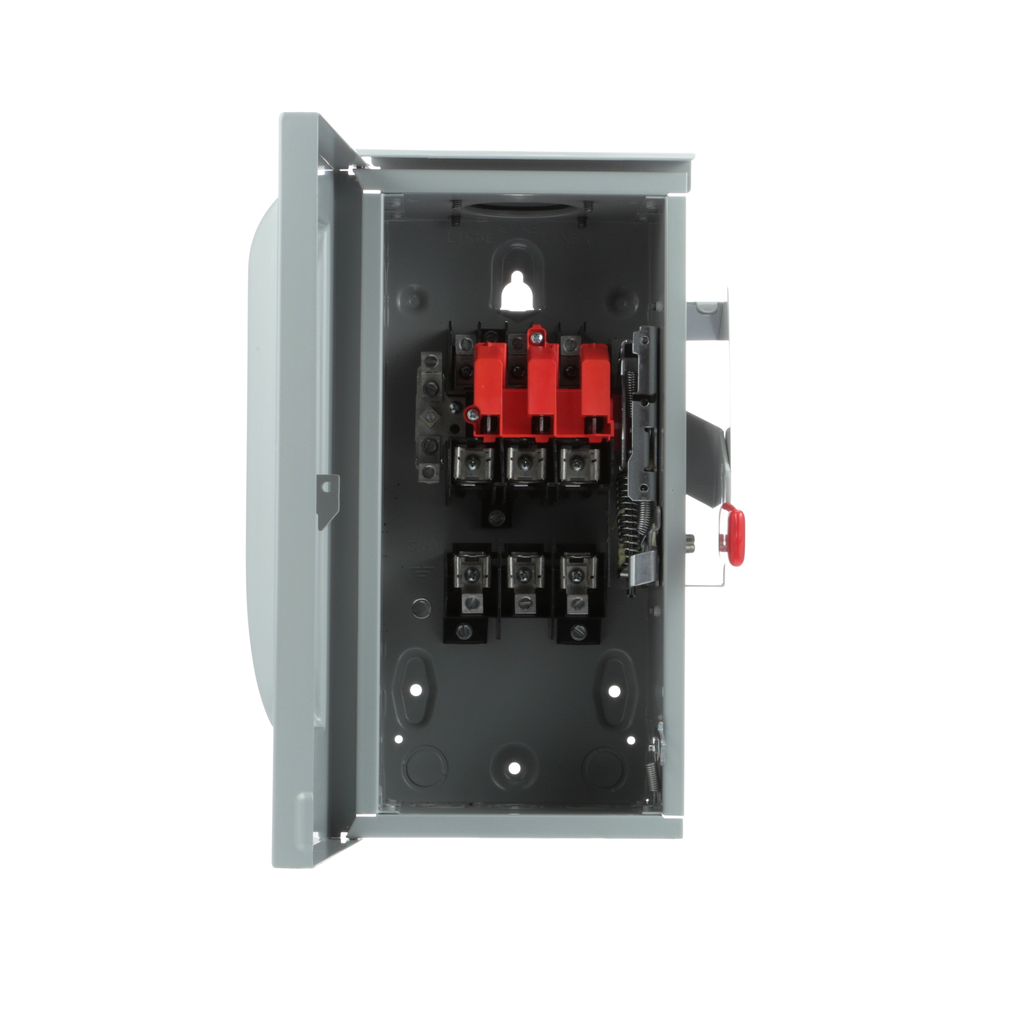

The Siemens GF322NR is a general duty fusible safety switch. This 60 Amp, 3-pole, 4-wire switch is rated for 240 VAC/250 VDC and housed in a NEMA 3R enclosure for outdoor use. It is suitable as a disconnecting means for service entrance and loads.

• Fusible safety switch for general duty applications
• Rated for 240 VAC/250 VDC and 60 Amp
• NEMA 3R enclosure for outdoor use

Product Highlights

The Siemens GF322NR is a 60 amp fusible safety switch designed for disconnecting service entrances and loads. It features a NEMA 3R enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GF322NR
• Country of Origin: Mexico

Technical Specifications

• Type: Fusible
• Brand: SIEMENS
• Action: SINGLE THROW
• Voltage: 240 Volt
• Amperage: 60 Amp
• Standard: UL
• Enclosure: NEMA3R
• Frequency: 60 Hz
• NEMA Size: 3
• Sub Brand: VBII
• Insulated?: No
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Operating Cycles: 10000
• Operating Temperature: -20 To 120 degrees F
• Applications: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
• Catalog Number: GF322NR
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Mounting: Surface
• Item Type: GENERALDUTYSWITCH
• Current AC (A): 60
• Depth: 7.4 in
• Duty: General
• For Use With: Class H, K, R, T Fuse
• Fuse Kit (Class R): HR612
• Height: 15.4 in
• Horsepower: 10 hp @ 240V AC
• IP Rating: 14
• Material of Construction: Steel
• Metallic/Non-Metallic: Metallic
• Protection Method: Fusible
• Width: 8.7 in
• Poles: 3
• Phase: 3
• Disco Type: Fused
• Voltage AC: 240 VAC
