Siemens GF321N General Duty Safety Switch 30 Amp

Product Description

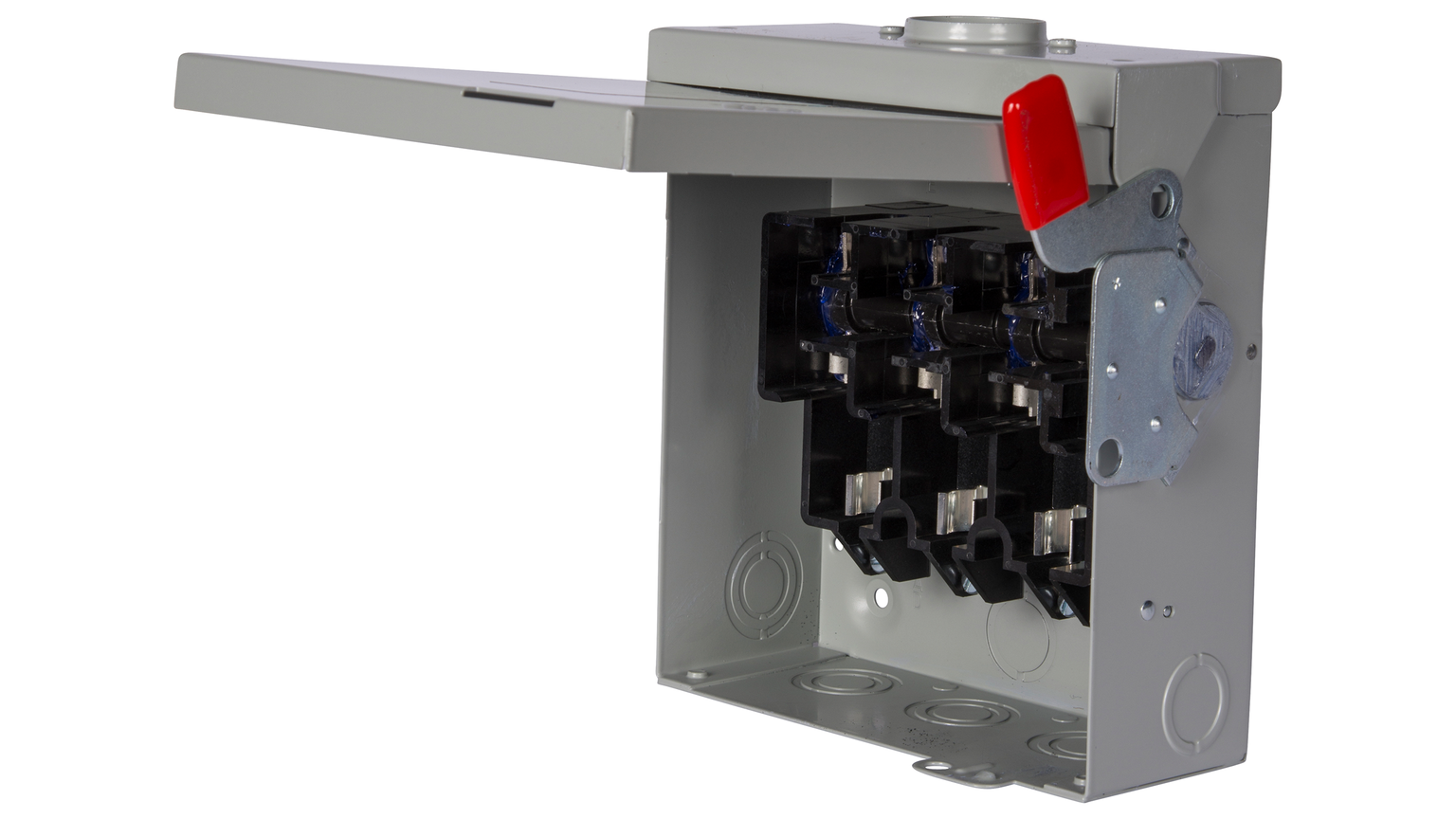

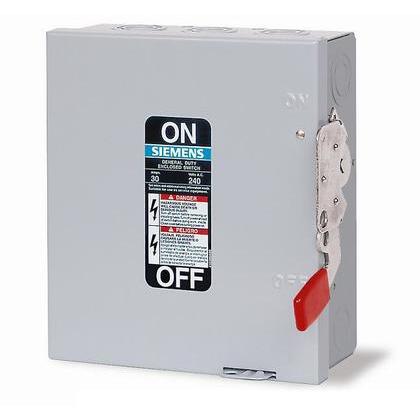

The Siemens GF321N general duty safety switch is an authentic Siemens/ITE product. This safety switch is rated for 240V AC and 250V DC, with a current of 30 Ampere. It features a fusible fuse, solid neutral, and NEMA 1 enclosure. It is suitable for construction, industrial, and residential applications.

• Authentic Siemens / ITE Product
• General Duty Safety
• 240 V Ac Voltage

Product Highlights

Siemens GF321N is a general duty safety switch with a fusible fuse, solid neutral, and NEMA 1 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GF321N
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Series: GF
• Nema Rating: Nema 1
• Duty Rating: General Duty
• Fusibility: Fusible
• Mpn: GF321N
• Upc: 783643335172
• Gtin: 783643335172
• Voltage Rating: 240 VAC/250 VDC
• Power Rating: 3 hp at 240 VAC, 3 Phase
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Short Circuit Rating: 100 kA RMS
• Contact Form: 3PST
• Actuator Type: Highly Visible Red Handle
• Enclosure Type: NEMA 1, IP20, Indoor
• Mounting Type: Surface
• Material: Galvanized Steel
• Includes: Solid Neutral Assembly
• Type: Disconnector
• Current Type: AC
• Maximum Amperage: 30
• Current Rating: 16-30 A
• Country of Origin: United States
• Amperage: 30 Amp
• Poles: 3 Pole
• Voltage: 240 Volt
• Volts DC: 250
• Amps: 30
• Volts AC: 240
• Manufacturer Part Number: GF321N
• Manufacturer: SIEMENS
• Model Number: GF321N
• Part Number: GF321N
