Product Description

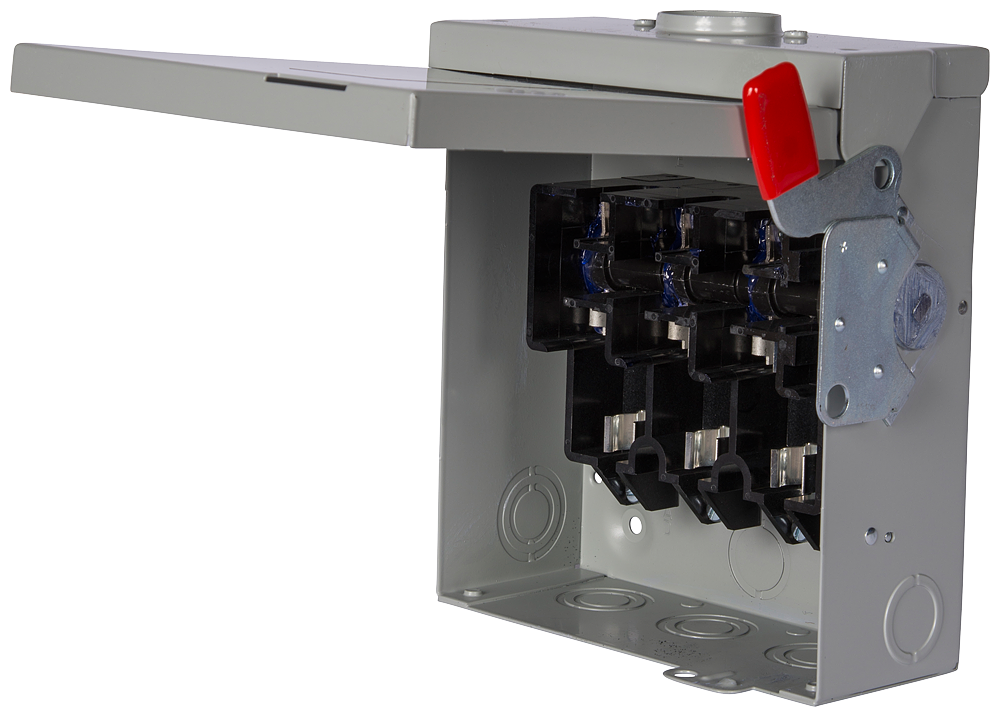

Siemens GF224NR is a high-quality switch designed for safety and reliability. This product operates at two hundred amps and supports up to forty horsepower. It can be used at a voltage rating of two hundred forty volts AC, and is ideally suited for outdoor applications.
- Type VBII enclosed fusible switch
- NEMA 3R rated for outdoor usage
- Suitable for both copper and aluminum wire
Product Highlights
Siemens GF224NR features include visible blade double break switching and a quick make, quick break mechanism. This ensures safety during operation.
Product Information
Standard Information
-
Amperage Rating: 200 A
-
Voltage Rating: 240 VAC, 250 VDC
Technical Specifications
-
Horsepower: 15 hp, 40 hp
-
Number of Poles: 2
-
Enclosure Type: NEMA 3R
-
Short Circuit Current Rating: 100 kA
-
Temperature Rating: -29 to 85 degrees C
-
Dimensions: 31.07 in H x 15.94 in W x 8.19 in D
-
Material: Steel
