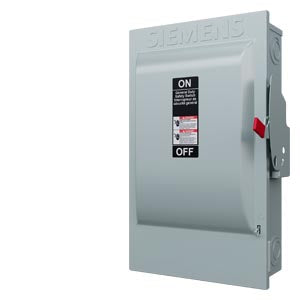

Siemens GF224NA VBII 200A Fusible Safety Switch

Product Description

The Siemens GF224NA is a fusible safety switch designed for general duty applications. It is rated for 240VAC and has a current capacity of 200A. The switch is equipped with two fuses and features a solid neutral. It is housed in a NEMA Type 1 enclosure, making it suitable for indoor use. This safety switch is labeled for service entrance applications and supports 3-phase motor loads. It is designed to handle various horsepower ratings for single-phase and three-phase applications.

• Rated for 240VAC and 200A current.
• 2-pole, 2-fuse configuration with a solid neutral.
• NEMA Type 1 enclosure suitable for indoor use.

Product Highlights

The Siemens GF224NA provides reliable performance for electrical safety needs.

Product Information

Standard Information

• Brand: Siemens
• MPN: GF224NA

Technical Specifications

• Rated Voltage: 240VAC
• Rated Current: 200A
• Enclosure Type: Type 1 (indoor)
• Poles: 2-Pole
• Fuses: 2-Fuse
• Neutral: Solid neutral
• Horse Power (1-PH 2-W): 15 (Std)
• Horse Power (3-PH 3-W): 25 (Std), 60 (Time delay)
• Horse Power (250VDC): 40
