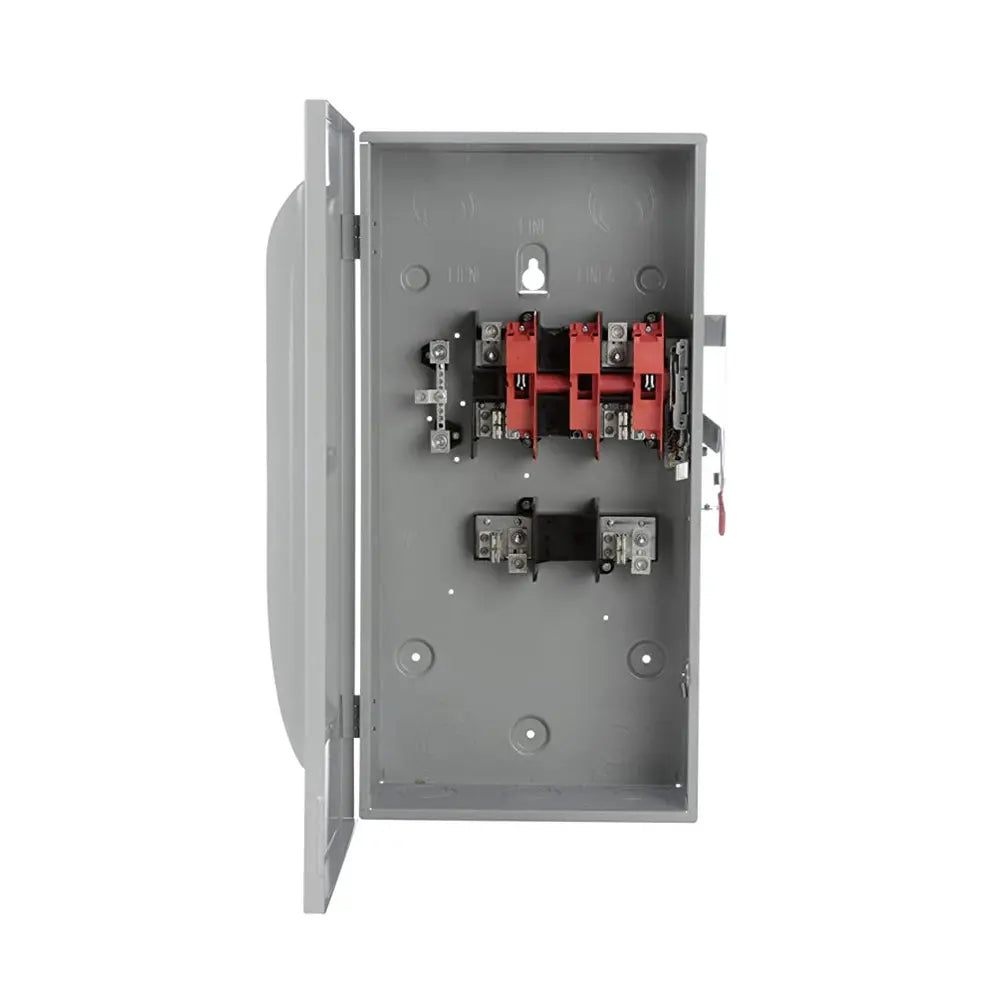

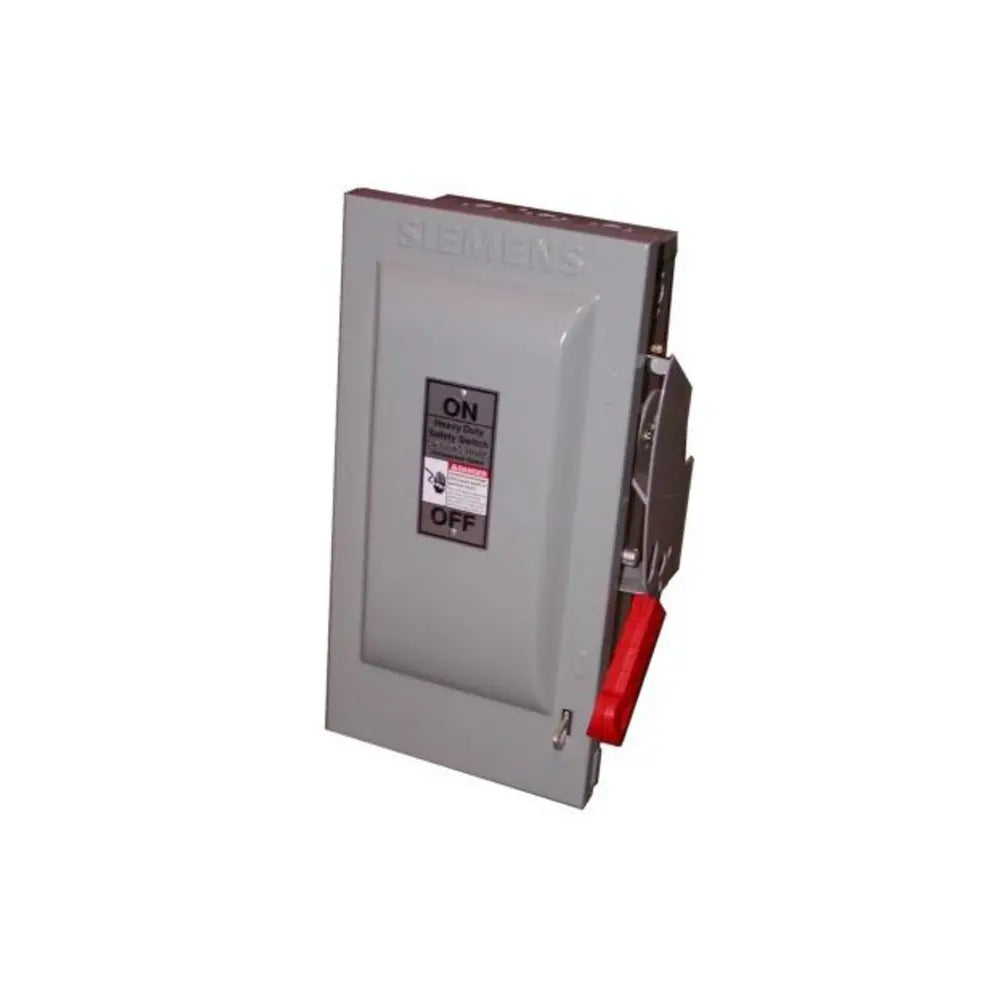

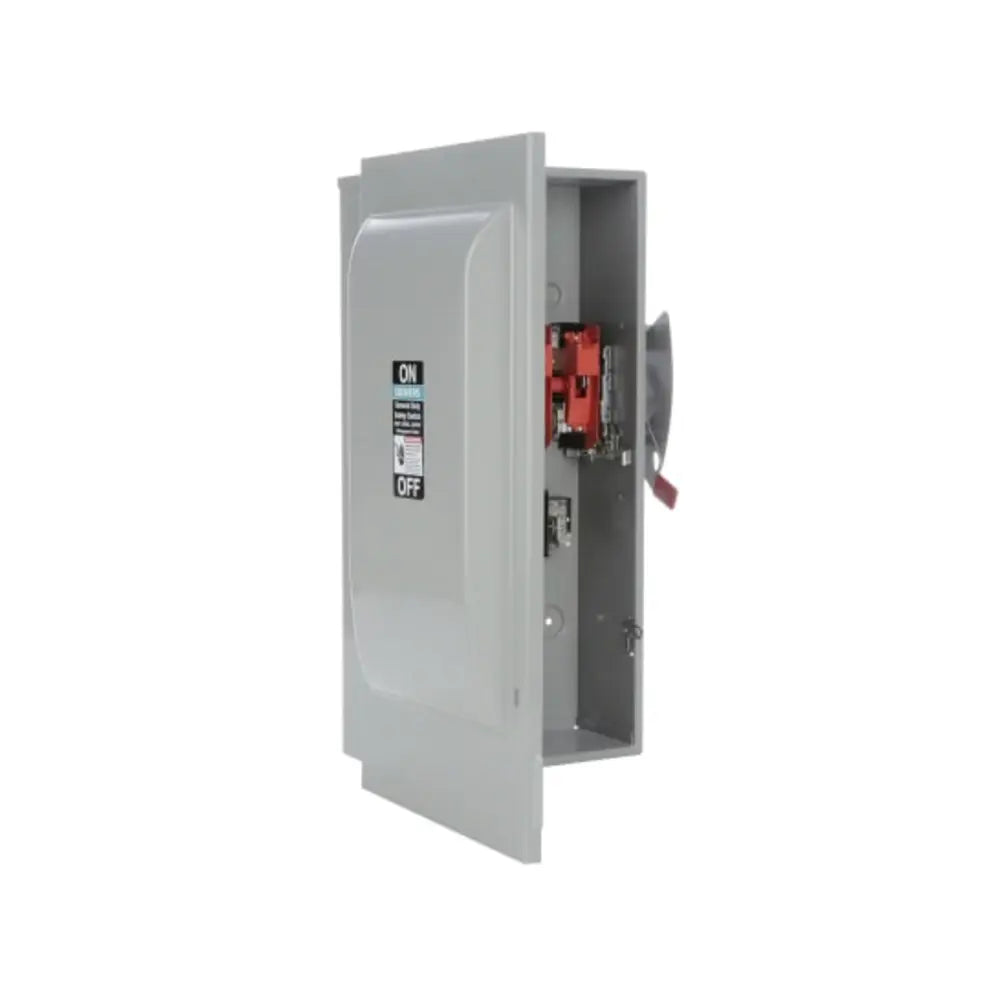

Siemens GF224N Low Voltage Circuit Protection General Duty Safety Switch 2-Pole 200A NEMA 1 240VAC

Product Description

The Siemens GF224N is a low voltage circuit protection safety switch designed for general duty applications. This safety switch features a two-pole configuration and is rated for two fuses with a solid neutral. It is housed in a type one enclosure, suitable for indoor use, and is rated for two hundred amperes at two hundred forty volts alternating current.

• Two-pole, two-fuse configuration
• Rated 200A at 240VAC
• Suitable for indoor use in dry locations

Product Highlights

This switch is essential for protecting electrical circuits and is specially labeled for service entrance. It is compatible with three-phase motor loads, making it versatile for various applications.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: GF224N
• Type: Fusible
• Width: 17.35 inches
• Height: 37.40 inches
• Length: 9.44 inches
• Weight: 41.49 pounds
• Actuator: Lever
• Material: Aluminum
• Standard: UL98
• NEMA Rating: NEMA 1
• Mounting Type: Surface
• Voltage Rating: 240 VAC, 250 VDC
• Amperage Rating: 200 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Number Of Phases: Single-Phase
• Contact Configuration: DPST
• Environmental Conditions: Dry Location
• Country of Origin: MX
