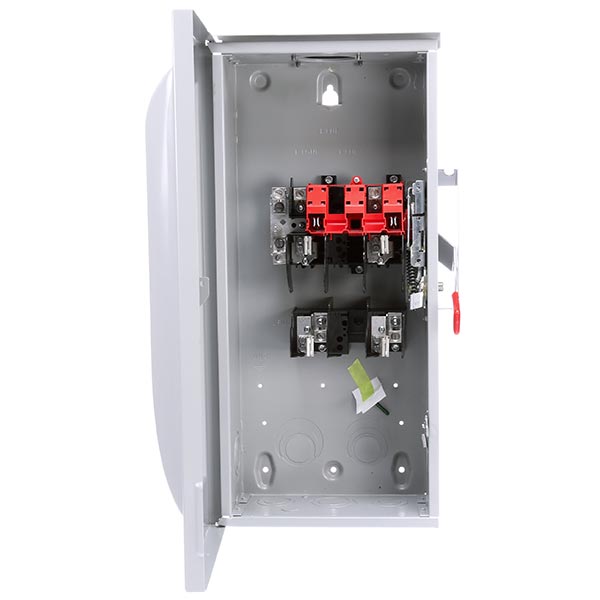

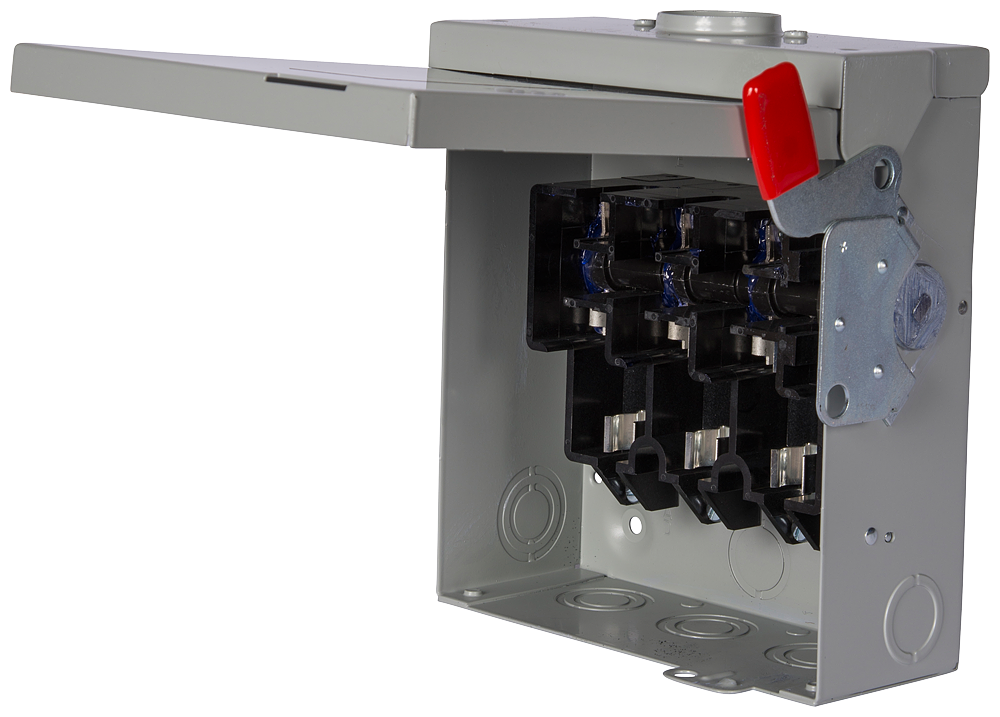

Siemens GF223NR SWITCH SAF 240VAC 100A 15HP 20HP DPST

Product Description

The Siemens GF223NR is a safety switch designed for reliable performance in various applications. It supports voltages of two hundred forty VAC and operates at one hundred amps. This unit is suitable for disconnecting loads and protecting circuits in residential and industrial settings.

• Rated for 240 VAC and 100 A
• DPST contact configuration
• NEMA 3R enclosure for outdoor applications

Product Highlights

This switch features a visible blade mechanism for clear on/off indication and includes provisions for padlocking in the OFF position. Quick make and break action ensures safe operation.

Product Information

Standard Information

• Brand: Siemens
• MPN: GF223NR

Technical Specifications

• Type: Type VBII Enclosed Fusible General Duty Low Voltage Single Throw
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Horsepower Ratings: 15 hp, 20 hp
• Enclosure Type: NEMA 3R
• Material: Steel
• Temperature Rating: -29 to 85 deg C
• Number of Poles: 2
• Number of Wires: 3
• Short Circuit Current Rating: 100 kA
