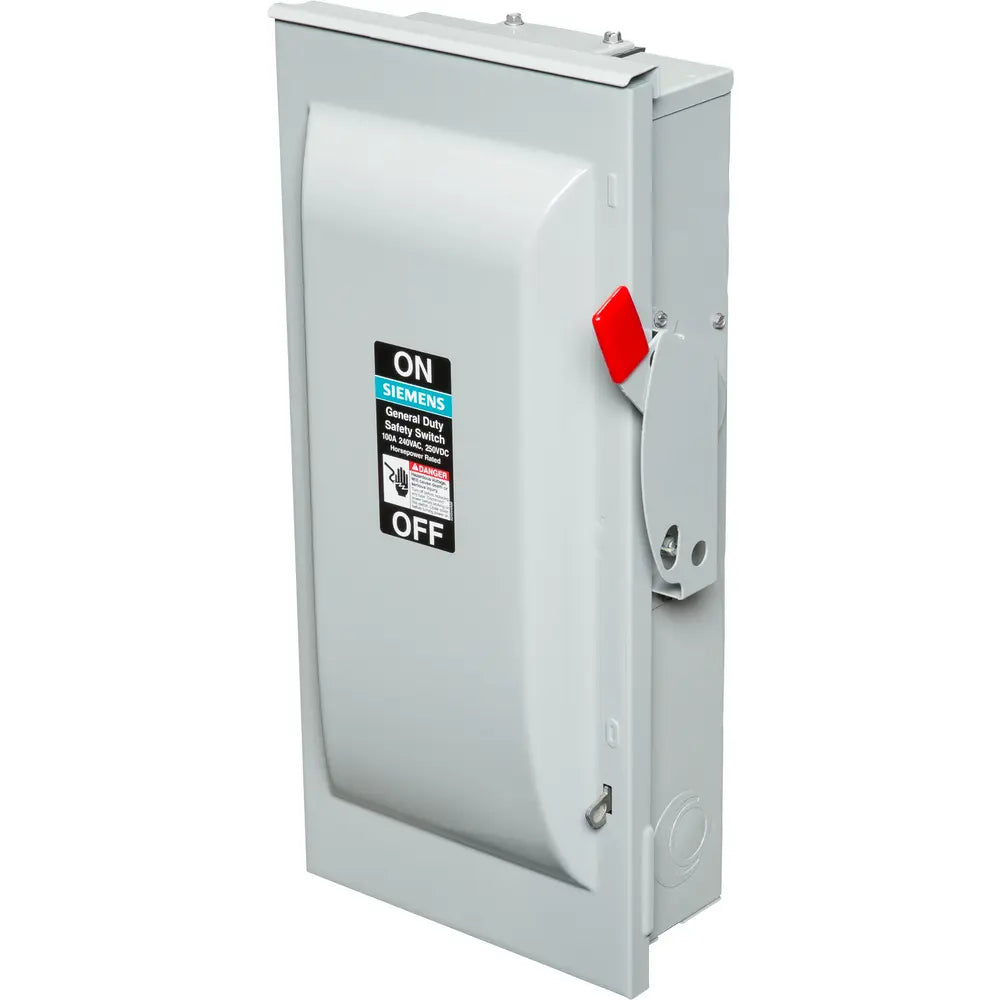

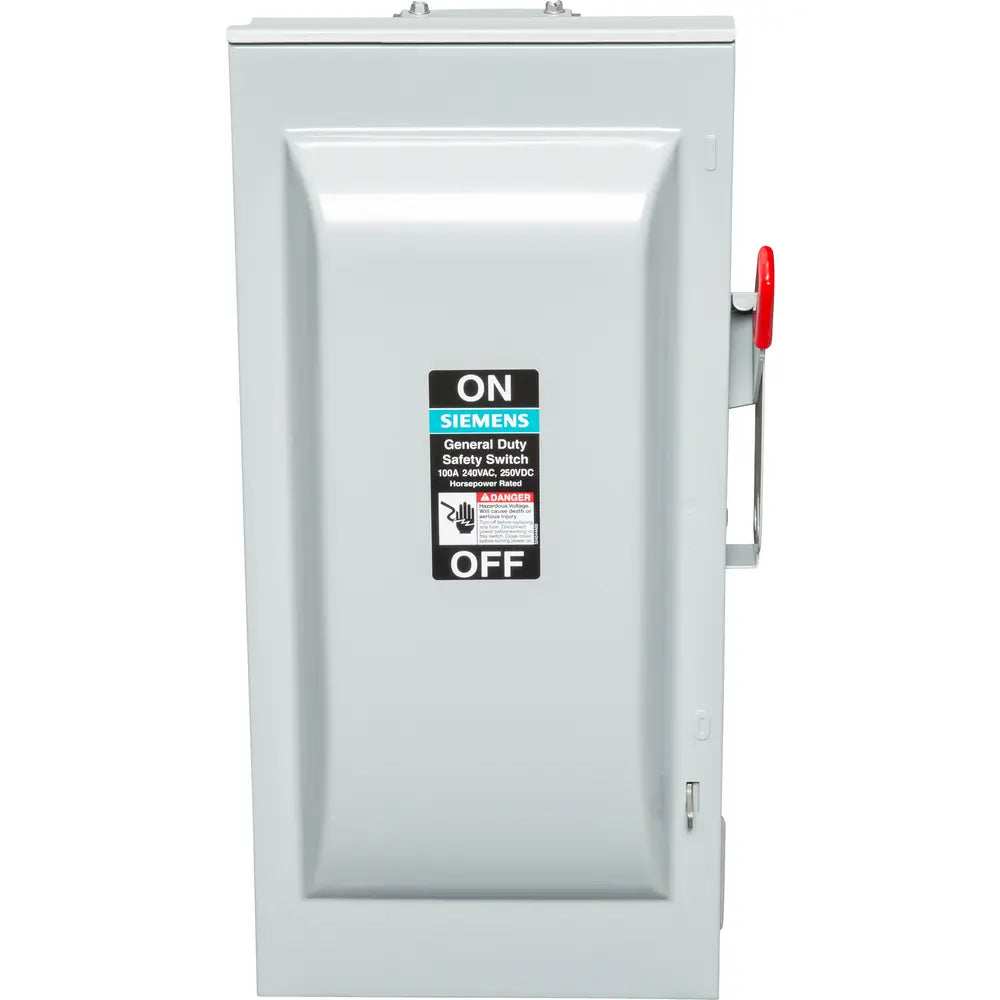

Siemens GF223NR 100A General Duty Fused Safety Switch, 2-Pole, NEMA 3R

Product Description

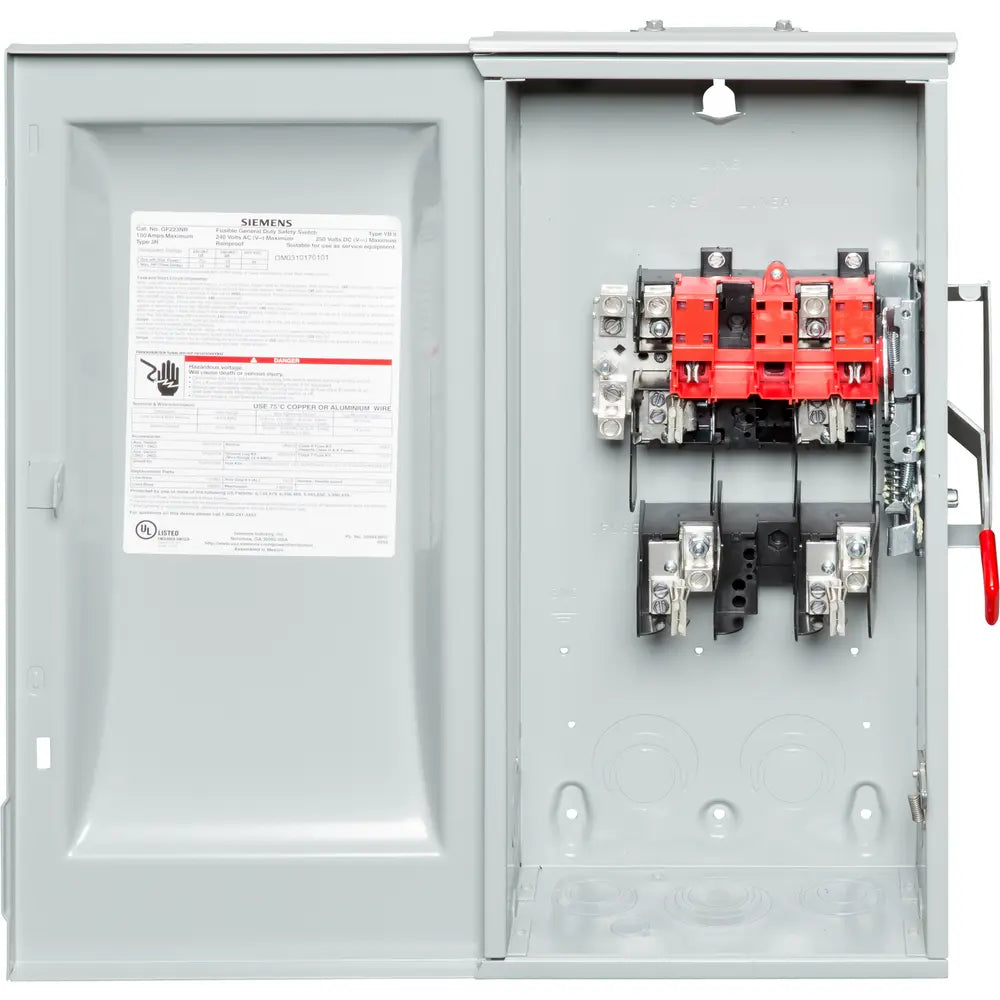

The Siemens GF223NR is a 100-amp general duty fused safety switch designed for reliable low voltage circuit protection. This dual-pole switch features two fuses and a solid neutral, all housed in a NEMA 3R enclosure suitable for outdoor conditions. It operates efficiently at 240 volts AC and is compliant with UL standards.

• Rated at 100 amperes, perfect for standard applications.
• Constructed with a sturdy steel material for durability.
• Ideal for wet and dry locations, ensuring versatility in installation.

Product Highlights

This safety switch ensures dependable circuit protection by offering fused overload protection and a robust construction. It supports mechanical connections for reliable performance and is designed for environmental conditions, making it suitable for various settings.

Product Information

Standard Information

• Brand: Siemens Industry
• Part Number: 0018-2782

Technical Specifications

• UPC: 783643149229
• Type: Fusible
• Depth: 7.48 inches
• Width: 13.78 inches
• Height: 25.59 inches
• Weight: 20.6 pounds
• Actuator: Lever
• Material: Steel
• Standard: UL
• Enclosure: Included
• Connection: Mechanical
• NEMA Rating: NEMA 3R
• Voltage Rating: 240 VAC, 250 VDC
• Amperage Rating: 100 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Country of Origin: MX
• Environmental Conditions: Wet/Dry Location
