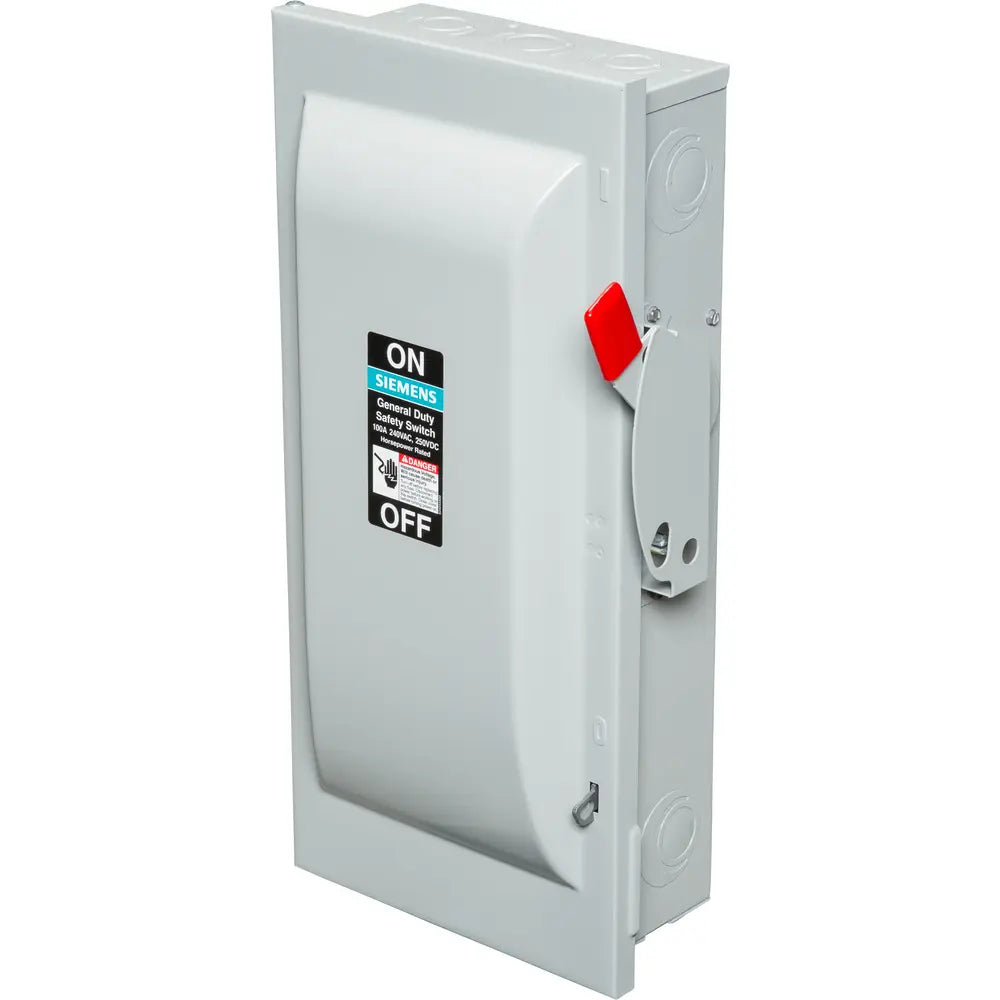

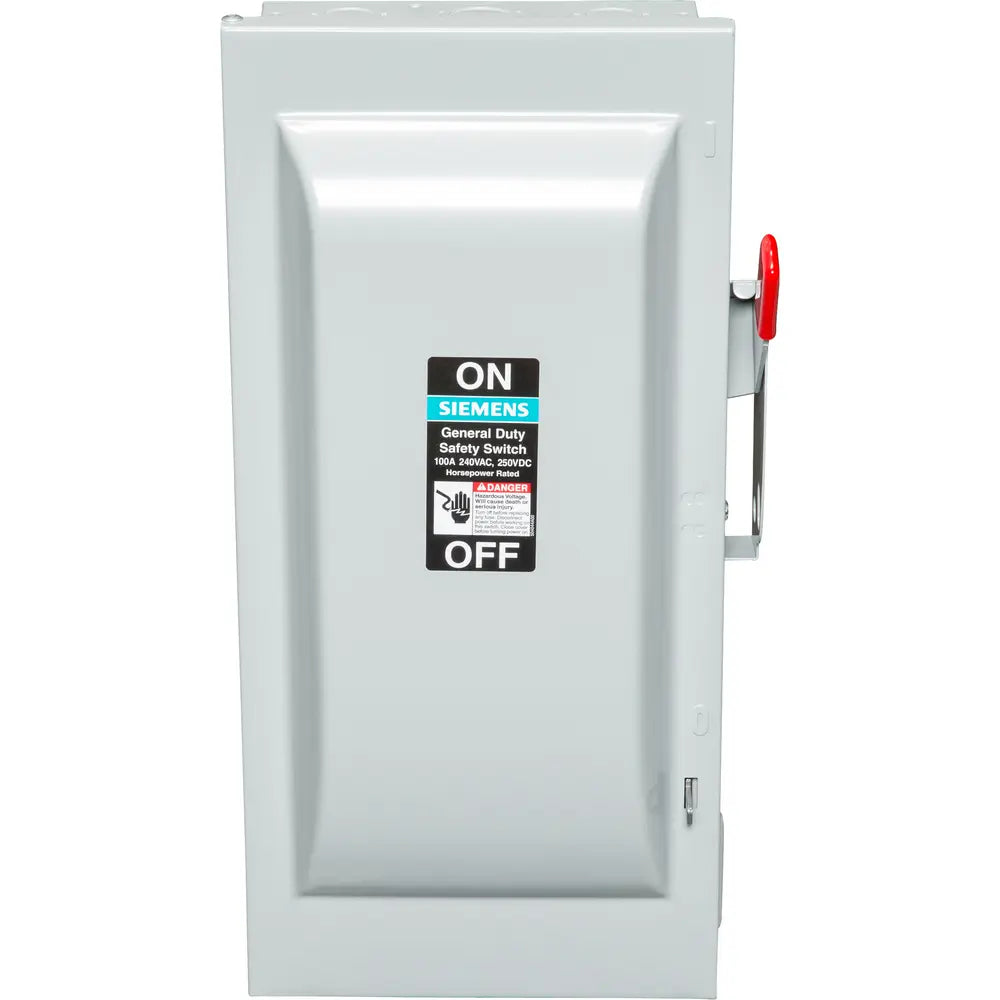

Siemens GF223N General Duty Fused Safety Switch 100A 2-Pole NEMA 1

Product Description

The Siemens GF223N is a 100 ampere general duty fused safety switch. This unit features a two-pole design and is suitable for indoor applications. It is equipped with a fusible mechanism and solid neutral within a NEMA 1 enclosure, making it ideal for low voltage circuit protection. Rated for use at two hundred forty volts alternating current and two hundred fifty volts direct current, this safety switch is a reliable choice for various power distribution needs.

• Two-pole configuration
• Includes solid neutral and fusible design
• Designed for NEMA 1 indoor use

Product Highlights

Suitable for industrial settings where electrical circuit protection is necessary.

Product Information

Standard Information

• Brand: Siemens Industry
• MPN: GF223N

Technical Specifications

• UPC: 783643148079
• Type: Fusible
• Amperage Rating: 100 Amperes
• Voltage Rating: 240 VAC, 250 VDC
• Number of Poles: 2-Pole
• Enclosure: NEMA 1
• Depth: 7.48 Inches
• Width: 13.78 Inches
• Height: 25.59 Inches
• Weight: 20.04 Pounds
• Actuator: Lever
• Material: Steel
• Standard: UL
• Connection: Mechanical
• Frequency Rating: 50/60 Hertz
• Country of Origin: MX
• Environmental Conditions: Dry Location
