Product Description

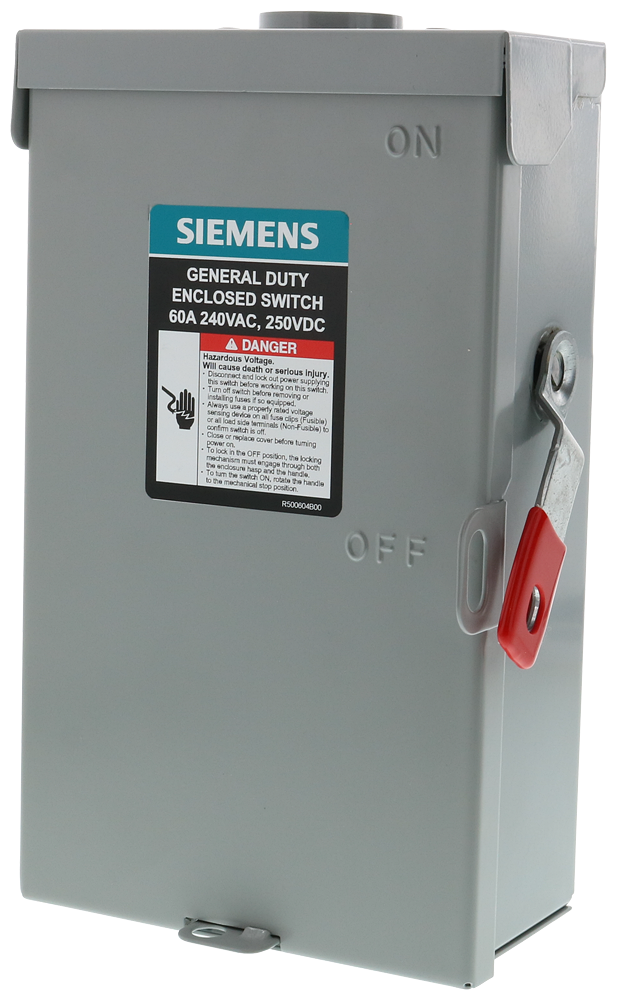

The Siemens GF222NRA is a general duty low voltage fusible single throw safety switch, designed for reliable performance where service continuity is essential. This model operates at two hundred forty volts alternating current with a rating of sixty amperes. It is suitable for a variety of applications requiring a dependable safety switch. This safety switch can handle up to ten horsepower for single-phase operations and fifteen horsepower for three-phase connections. The NEMA three R enclosure protects against rain and outdoor conditions. Designed for surface mounting, this switch features a visible blade and double break switching action for enhanced safety.
- Compact design for improved space efficiency
- Padlocking provisions for added security
- Rated for a 10 kA short circuit with Class H fuses
Product Highlights
This switch meets UL 98 standards and is effective for service entrance loads and circuits. It is built with a robust steel construction and operates within a temperature range from negative twenty-nine to eighty-five degrees Celsius.
Product Information
Standard Information
-
Voltage Rating: 240 VAC
-
Amperage Rating: 60 A
Technical Specifications
-
Horsepower: 10 hp, 15 hp
-
Dimensions: 10.07 in H x 6.42 in W x 3.03 in D
-
Enclosure Type: NEMA 3R
-
Number of Poles: 2
-
Number of Wires: 3
-
Short Circuit Current Rating: 10/100 kA
-
Material: Steel
-
Temperature Rating: -29 to 85 deg C
