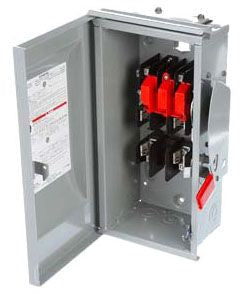

Siemens GF222NR Fusible Disconnect 2P 240V 60A

Product Description

The SIEMENS GF222NR is a fusible general-duty safety switch rated for 2-pole, 3-wire configurations at 240 volts and 60 amps. It provides a lockable disconnect point for branch circuits and equipment, combining fuse protection with a visible-blade on/off mechanism in a single enclosure. Licensed electricians install this switch as a service-entrance or equipment-disconnect device in compliance with NEC Article 430 and similar code requirements. The unit ships at 12.632 pounds, reflecting a robust steel enclosure suited for demanding service conditions.

This safety switch is appropriate for residential and light commercial electrical systems where a dedicated fusible disconnect is required near motor loads, HVAC equipment, or other branch-circuit machinery. It functions as an externally operable isolating device, allowing the connected load to be de-energized and locked out before maintenance without accessing the panel. Its 60-amp rating covers a wide range of single-phase 240-volt loads common in trade work.

Key Features

• 60-amp fusible disconnect with visible-blade mechanism for positive isolation confirmation
• 2-pole, 3-wire configuration for single-phase 240-volt circuits
• Lockable handle supports OSHA-compliant lockout/tagout procedures
• General-duty rating suitable for residential and light commercial applications
• Robust enclosure at 12.632 pounds for durable field installation

Compatibility

Designed as an OEM-style general-duty fusible safety switch for single-phase 240-volt branch circuits and equipment-disconnect applications in residential and light commercial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the upstream supply and verify absence of voltage with a meter before wiring the switch. The enclosure dimensions of 18.110 inches x 11.024 inches x 7.480 inches should be confirmed against the available mounting space before rough-in. Apply appropriate fuses rated for the connected load; do not exceed the 60-amp switch rating.

Technical Specifications

• Voltage Rating: 240 volts
• Amperage Rating: 60 amps
• Poles: 2-pole
• Wires: 3-wire
• Switch Type: Fusible general-duty safety switch
• Length: 18.110 inches
• Width: 11.024 inches
• Height: 7.480 inches
• Weight: 12.632 pounds
• UPC: 78364314921

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GF222NR
