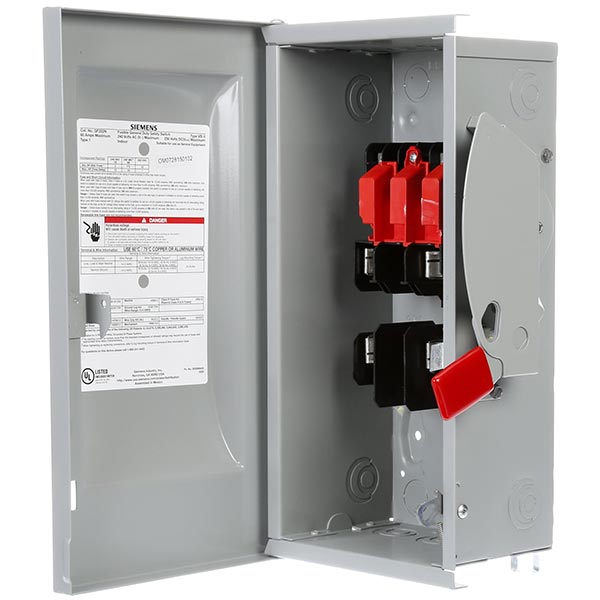

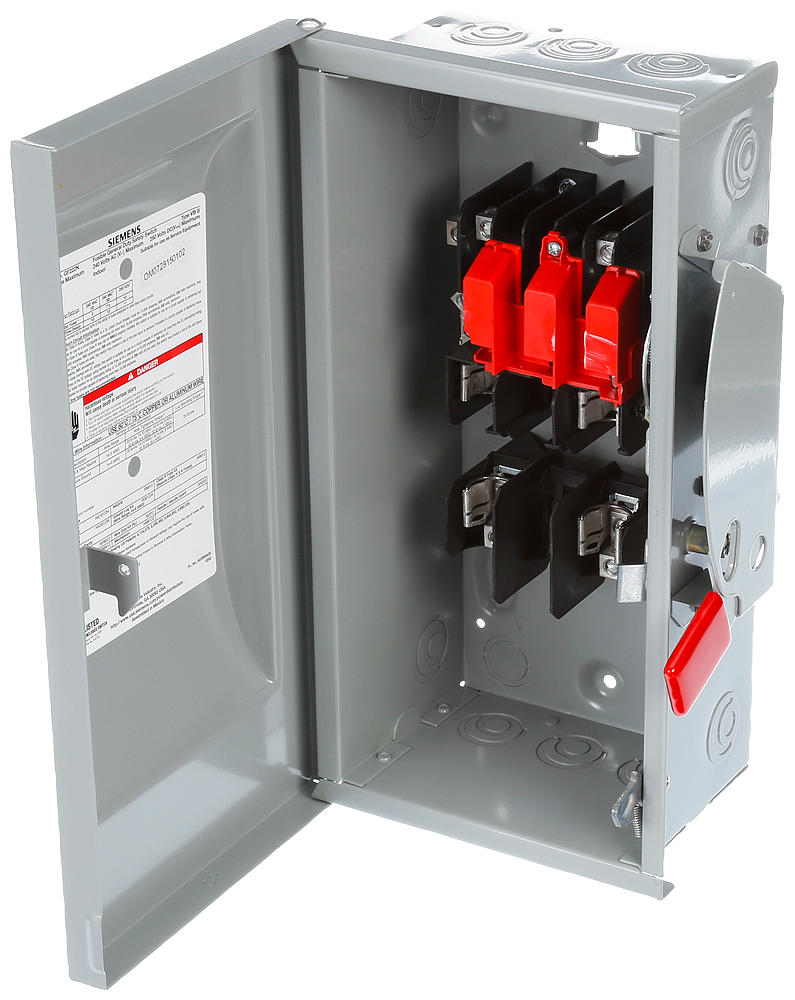

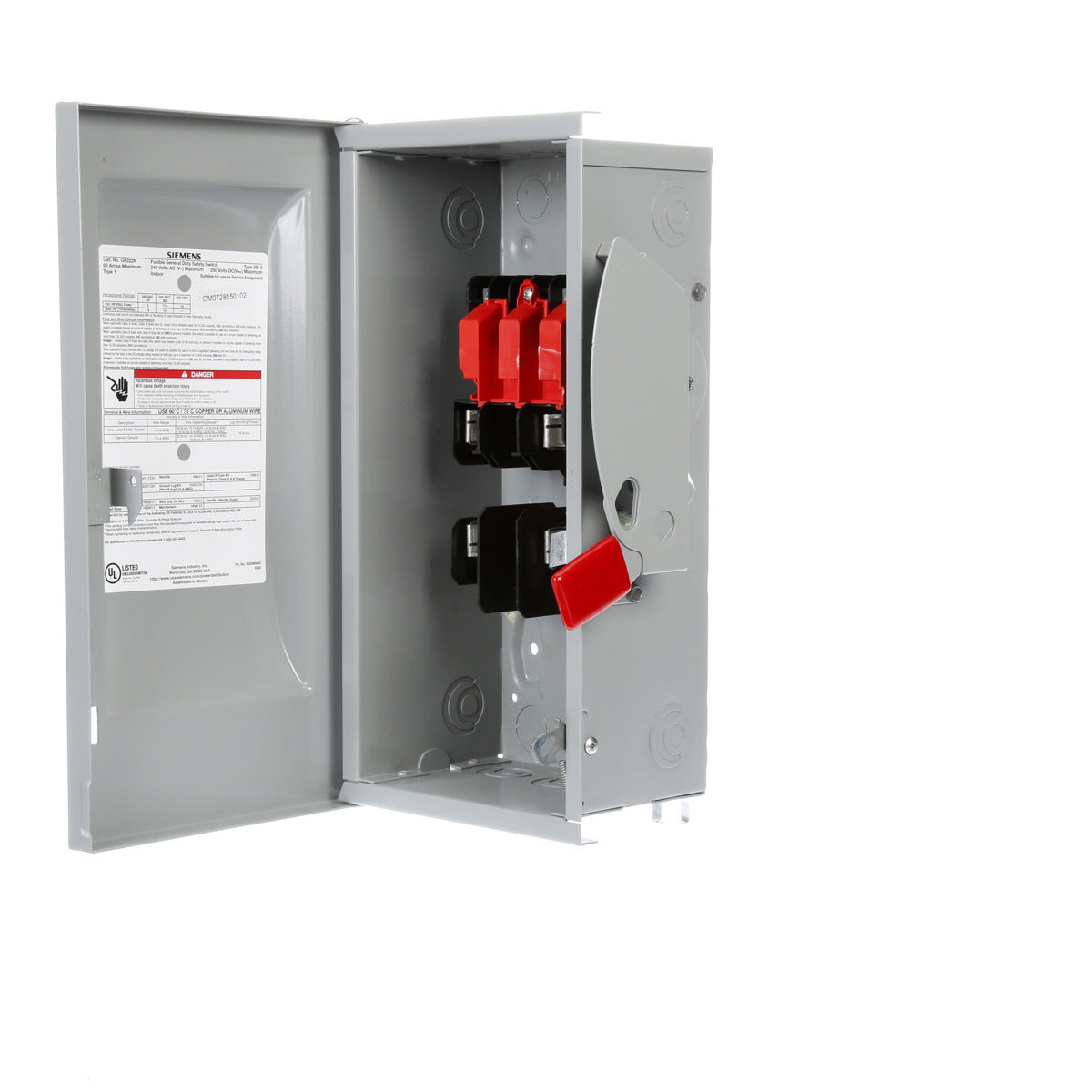

Siemens GF222N 240 VAC/250 VDC 60 Amp 2-Pole 3-Wire NEMA 1 General Duty Fusible Safety Switch

Product Description

The Siemens GF222N is a 240 VAC and 250 VDC, 60 Amp, 2-Pole, 3-Wire general duty fusible safety switch. This switch is designed for reliable and safe disconnection of electrical loads. It is suitable for both indoor and outdoor applications and meets UL standards for safety and performance.

• Rated for 60 Amps with 240 Volts AC and 250 Volts DC
• Constructed with a rugged steel material for durability
• NEMA 1 enclosure type for indoor installations

Product Highlights

This fusible safety switch features a single throw action, ensuring that service entrance and load disconnection is easy and efficient.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: GF222N
• Type: Fusible
• Voltage: 240 Volt
• Amperage: 60 Amp
• Material: Steel
• Enclosure: NEMA 1
• Number of Poles: 2
• Number of Wires: 3
• Country of Origin: Mexico
• Operating Temperature: -20 to 120 degrees F
• Ambient Temperature: -29 degrees C
• Operating Cycles: 10000
