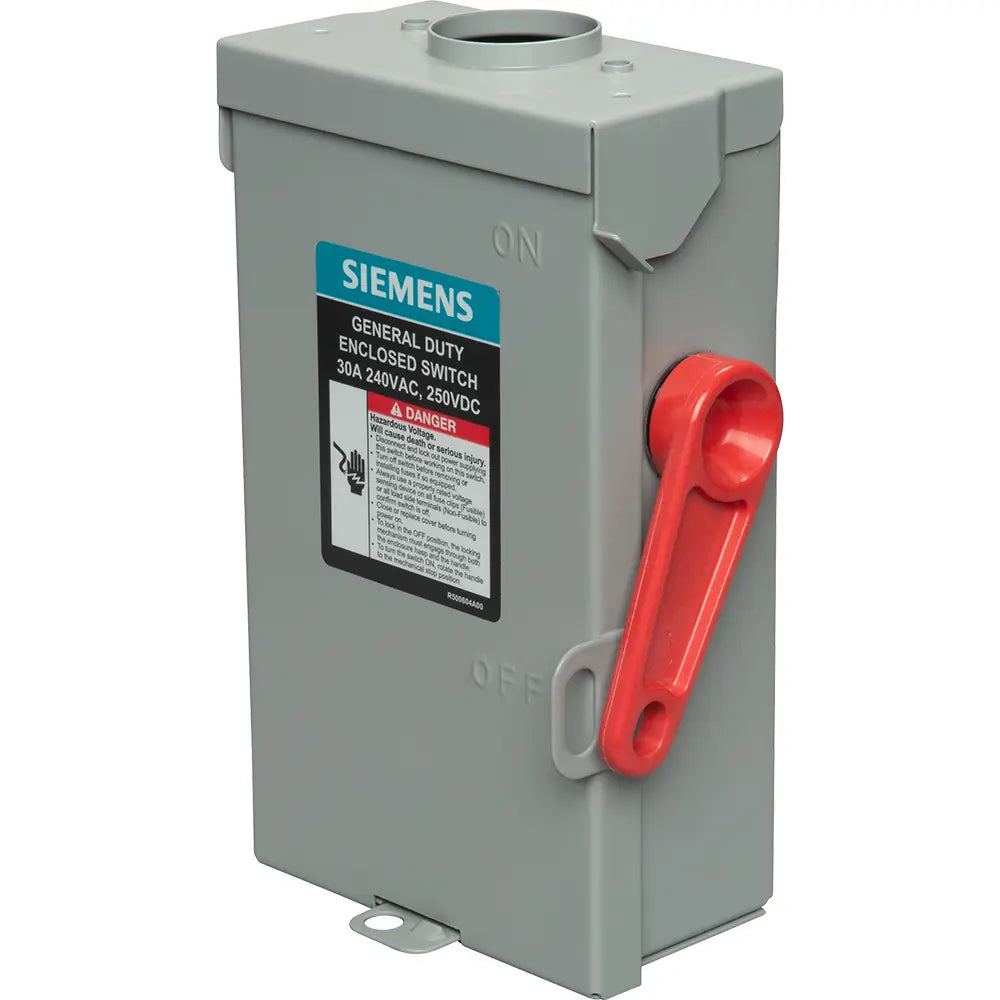

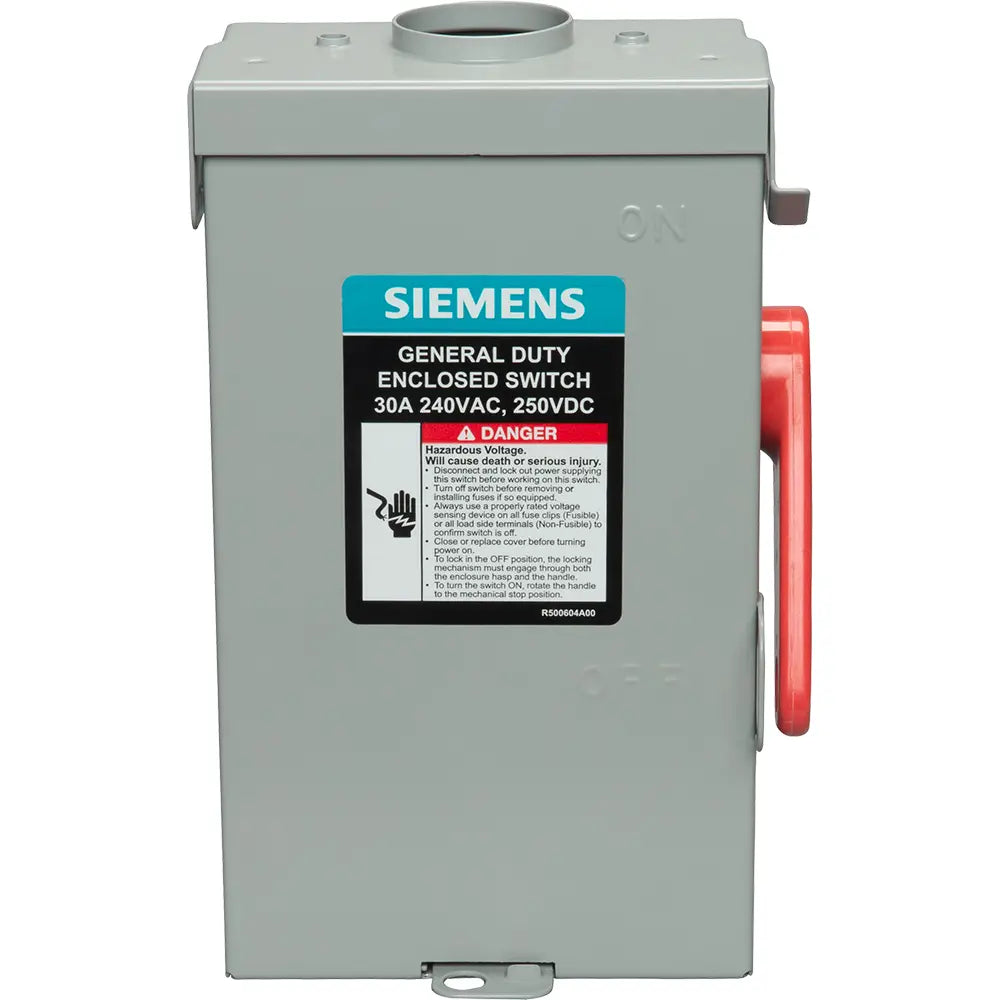

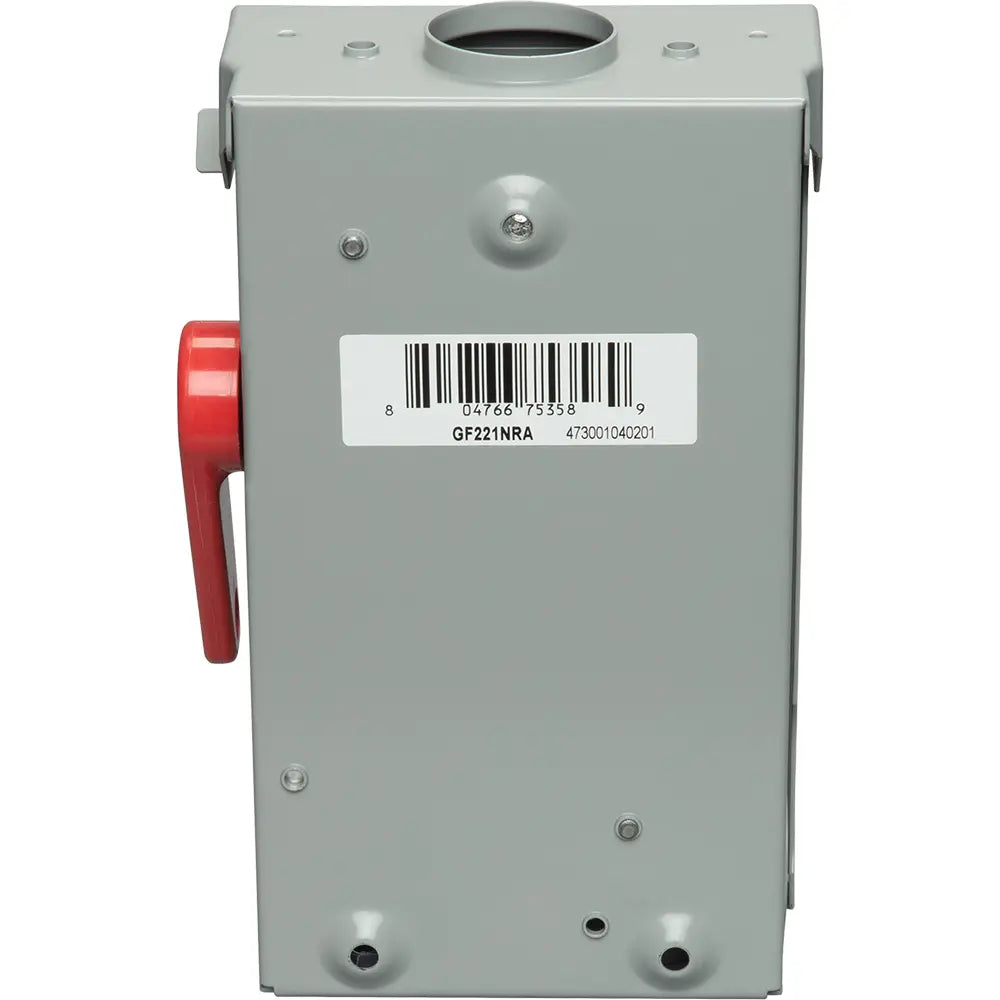

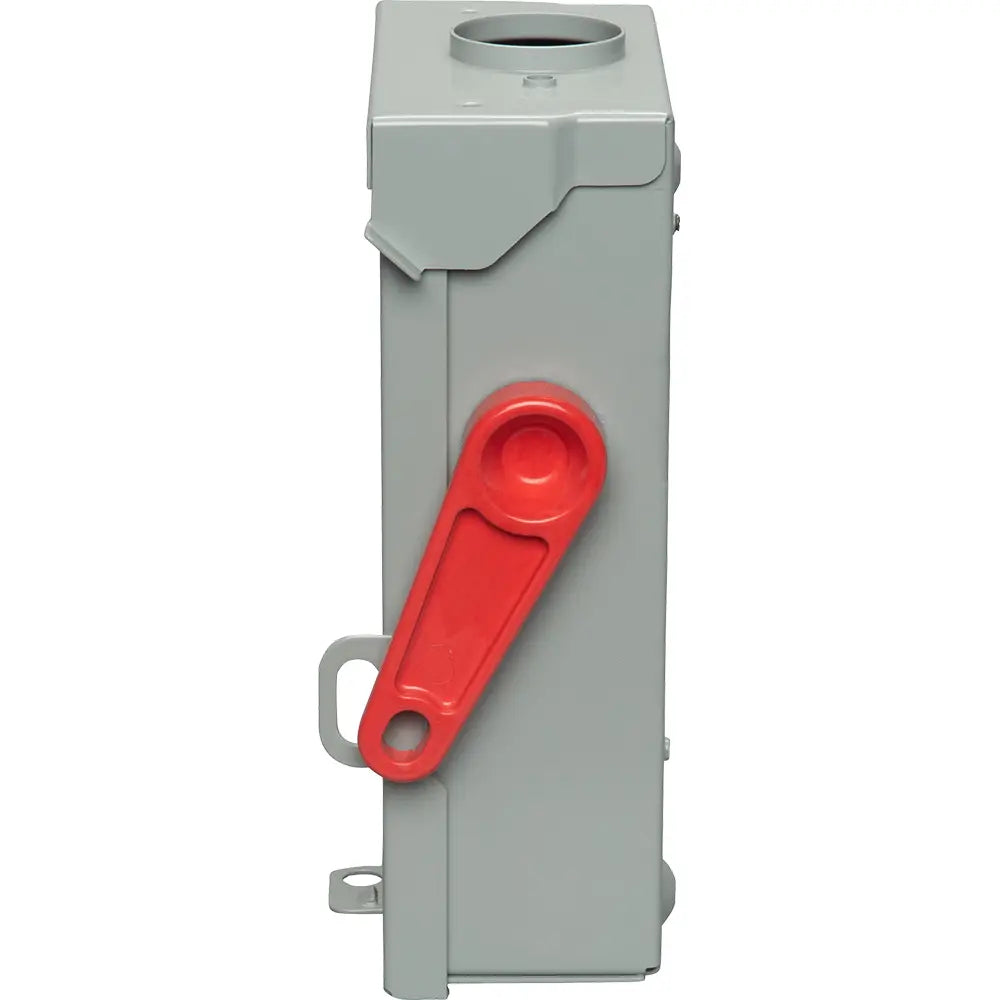

Siemens GF221NRA Safety Switch 30A 2-Pole NEMA 3R

Product Description

The Siemens GF221NRA is a thirty-amp safety switch designed for general duty applications. This double-break enclosed safety switch is rated for 10,000 AIC with Class K or Class H fuses and up to 100,000 AIC with Class R fuses. It is suitable for use in wet or dry locations, meeting NEMA 3R enclosure requirements.

• Heavy-duty steel construction

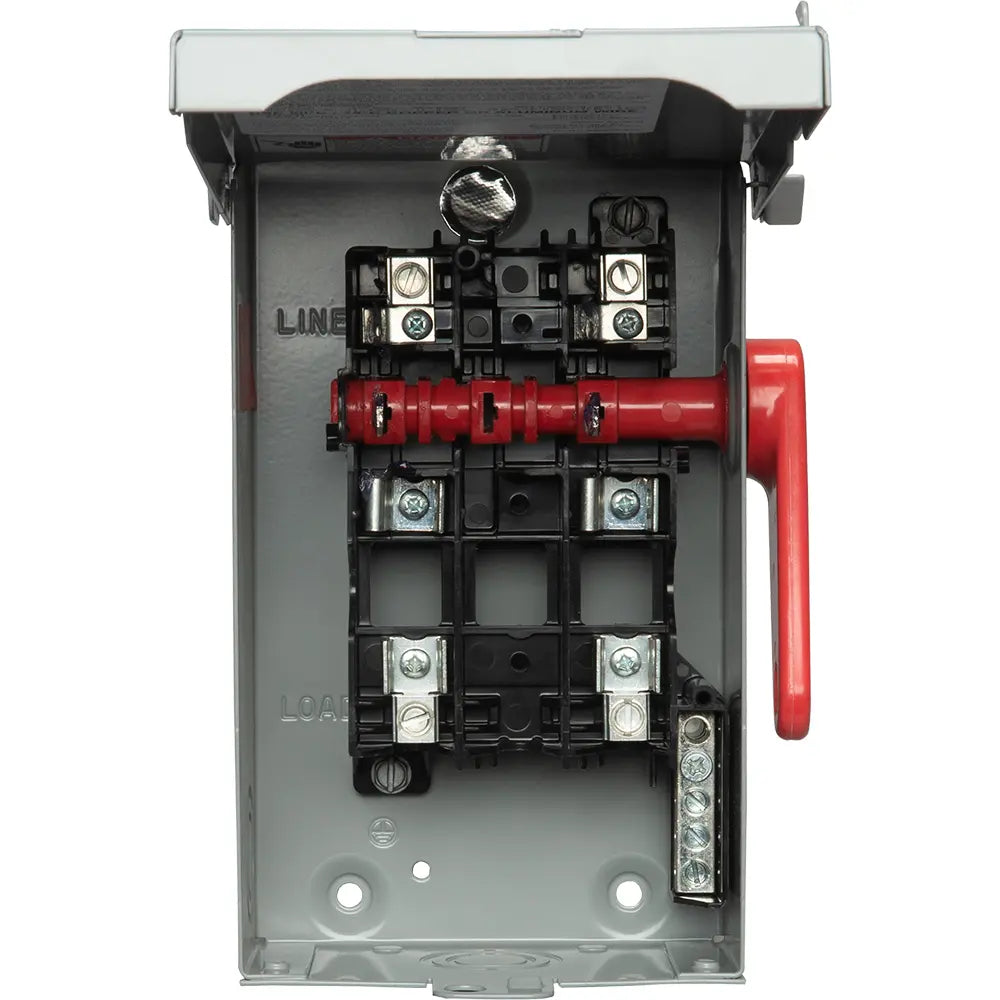

• Double break visible blade design
• Surface mounting for easy installation

Product Highlights

This switch is ideal for protecting branch circuits and is designed for mechanical connection, ensuring reliable operation in various environments.

Product Information

Standard Information

• Brand: Siemens Industry
• Part Number: 0538-3698

Technical Specifications

• Type: Fusible
• Depth: 2.75 Inches
• Width: 5.44 Inches
• Height: 8.56 Inches
• Weight: 3 Pounds
• Actuator: Lever
• Material: Steel
• NEMA Rating: NEMA 3R
• Voltage Rating: 240 VAC
• Amperage Rating: 30 Amperes
• Number Of Poles: 2-Pole
• Frequency Rating: 50/60 Hertz
• Country of Origin: MX
• Environmental Conditions: Wet/Dry Location
