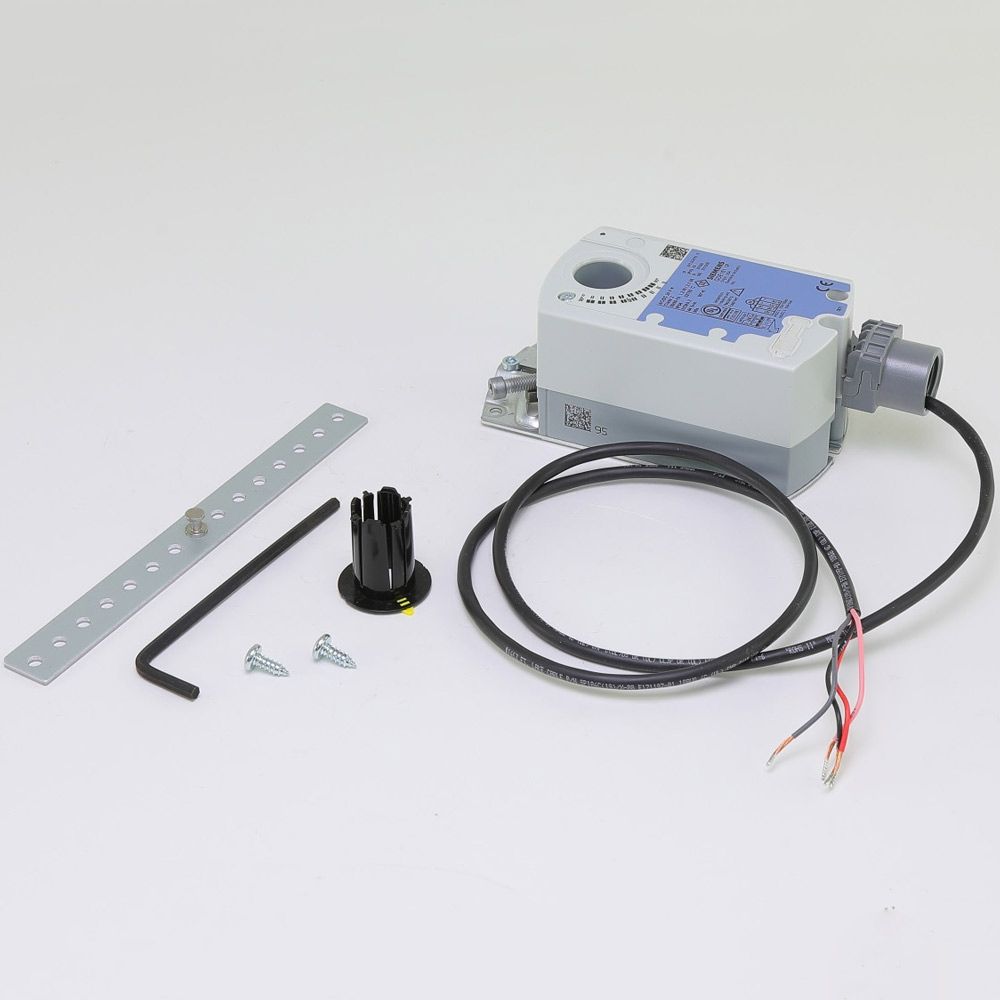

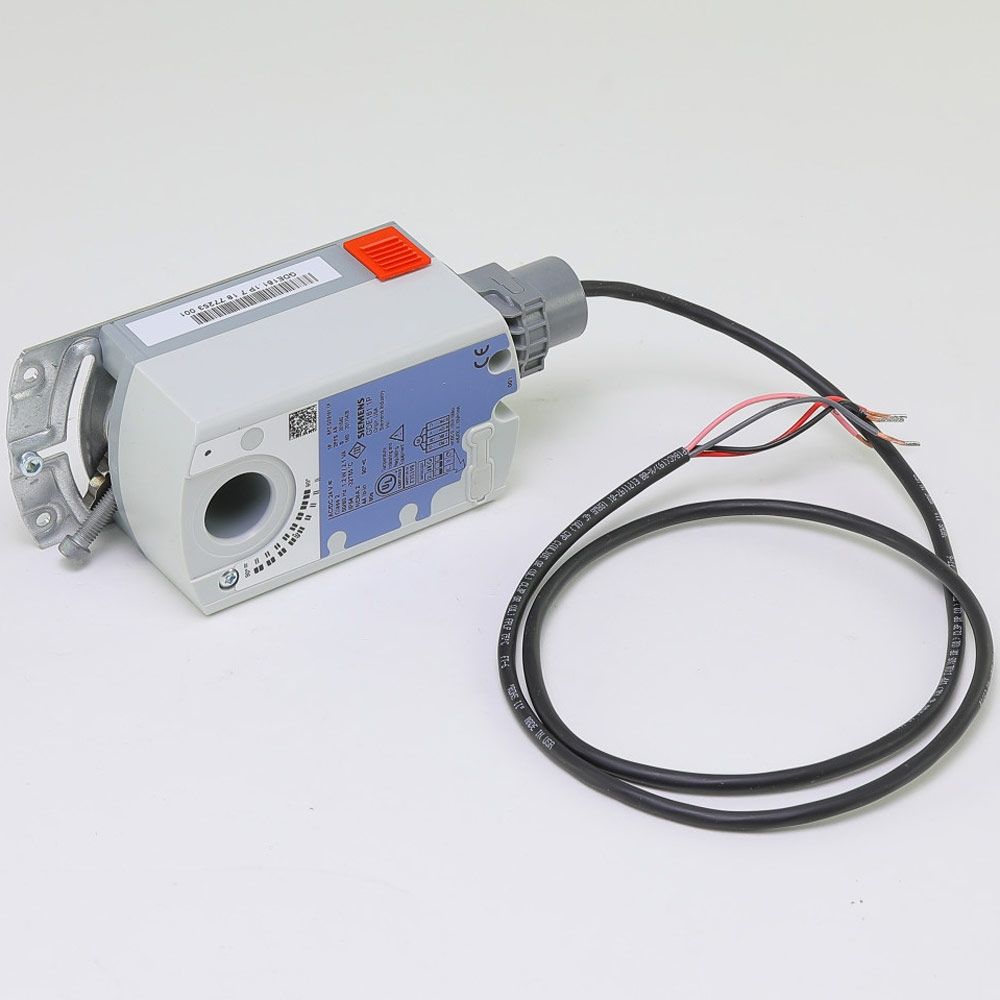

Siemens GDE161.1P Electric Damper Actuator 24V Non-Spring Return

Product Description

The Siemens GDE161.1P Electric Damper Actuator is tailor-made for robust industrial and HVAC applications. Featuring a 24V non-spring return mechanism, it offers precise control with a 0 to 10 VDC signal input.

• Designed for effective damper control
• 44 lb-in torque provides reliable performance
• Manual override for additional control and customization

Product Highlights

This unit is particularly suited for use in environments that require exact and efficient air volume control. Its compact design allows for easy installation in various settings, ensuring longevity and durability.

Product Information

Standard Information

• Brand: Siemens
• Model: GDE
• Part Number: GME161.1P

Technical Specifications

• Torque: 44 lb-in
• Voltage: 24V
• Control Signal: 0 to 10 VDC
• Dimensions: Weight: 1.67 lbs, Width: 2.75 inches, Height: 5.44 inches, Depth: 2.38 inches
• Power Consumption: 3.3 VA
• Operational Temperature Range: -25 to 130°F
