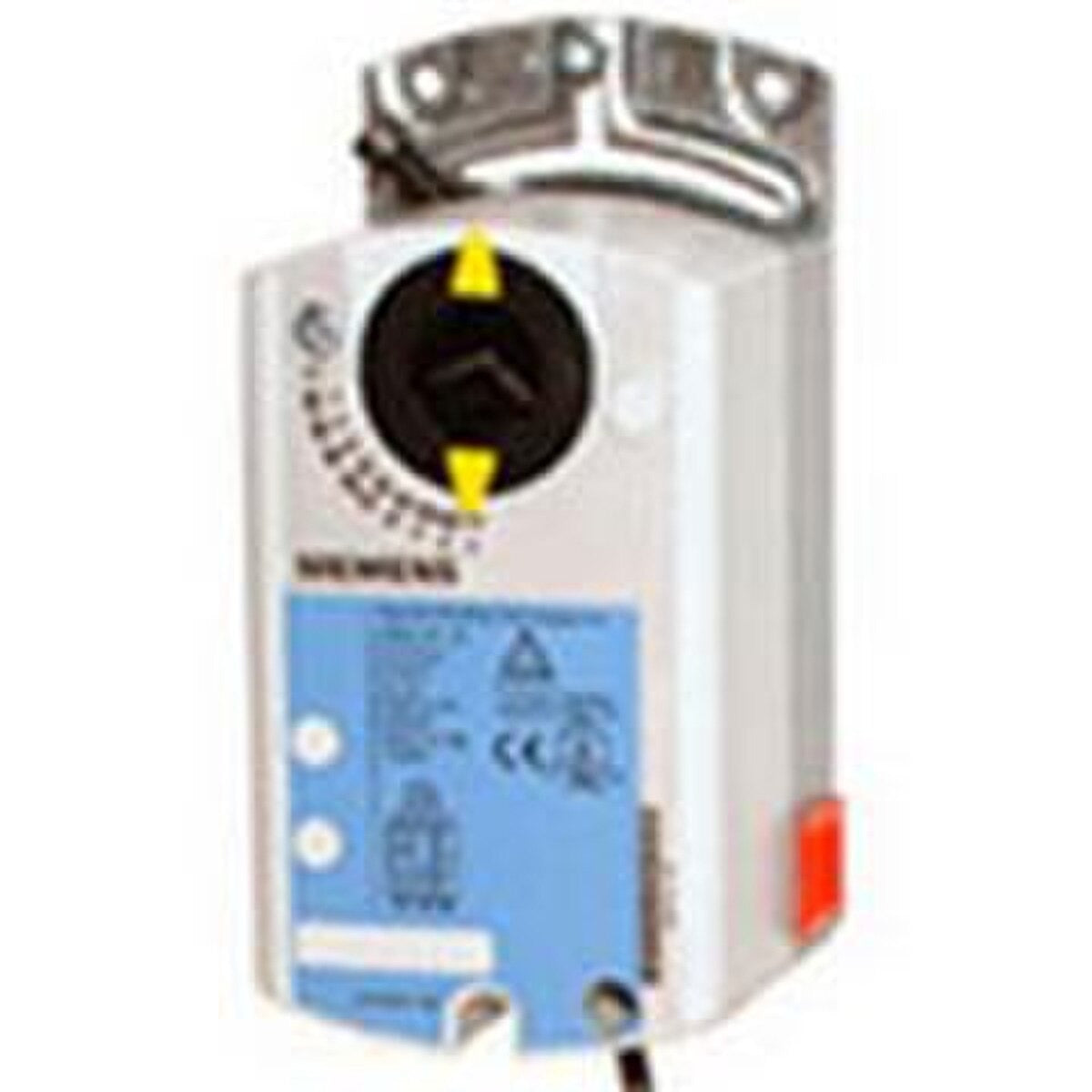

Siemens GDE161.1P/B Actuator NSR Plenum 24/90L 5 Nm Bulk

Product Description

Siemens GDE161.1P/B is an electronic non-spring return damper actuator intended for HVAC damper control. It delivers 5 Nm (44 lb-in) torque with 90 degrees rotation, is plenum rated, and operates from a 24 VAC supply. The actuator accepts 0-10 VDC modulating control, provides position feedback, and typically completes travel in about 90 seconds. It is supplied with a 3 ft plenum cable and a NEMA 2 (IP54) enclosure.

• Non-spring return rotary actuator, 5 Nm (44 lb-in) torque, 90 degrees rotation
• 24 VAC supply with 0-10 VDC modulating control and built-in position feedback
• Plenum-rated NEMA 2 (IP54) enclosure, 90 second run time, 3 ft 18 AWG plenum cable

Product Highlights

Plenum-rated non-spring return damper actuator; 5 Nm torque; 24 VAC with 0-10 VDC control and position feedback

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: GDE161.1P/B
• Country of Origin: United States
