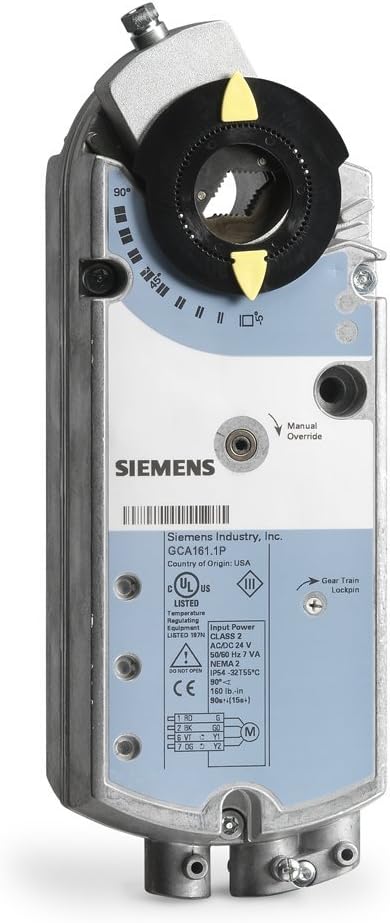

Siemens GCA161.1P Spring Return Electric Damper Actuator, 0 to 10 Vdc, Plenum Cabling

Product Description

The Siemens GCA161.1P is a spring return electric damper actuator designed for HVAC systems. It operates within a voltage range of twenty-four volts alternating current or direct current and provides a torque of 142 lb-in. This actuator is suitable for controlling dampers that handle return air, mixed air, exhaust, and face and bypass dampers. The actuator features plenum cabling which adds versatility in installation options.

• Voltage: 24 VAC/DC
• Torque: 142 lb-in (16 Nm)
• Bi-directional fail-safe spring return

Product Highlights

This actuator is ideal for both constant and variable air volume applications. It returns to a fail-safe position during power loss, ensuring reliable operation of the HVAC system. With a self-centering shaft coupling, the product allows for easier installation and enhanced durability.

Product Information

Standard Information

• Model Number: GCA161.1P
• Brand: Siemens

Technical Specifications

• Dimensions: 2.88 x 4.75 x 12 inches
• Weight: 5 pounds
• Input Signal: 0 to 10 VDC
• Operating Temperature: -25 to 130 degrees Fahrenheit
• Run Time: 90 seconds
• Mounting Type: Direct mount
• Connection Type: 3 ft. 18 AWG lead
