Siemens GCA131.1U SR,160LB-IN,24VAC/DC,FLOATING

Product Description

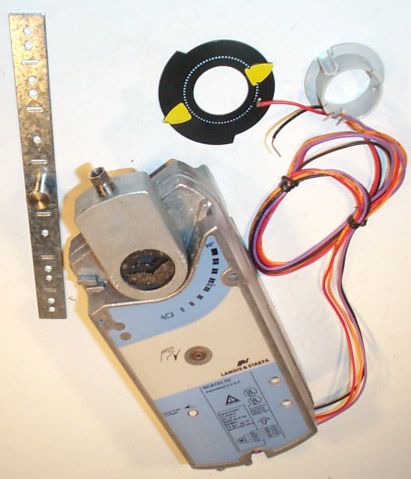

The Siemens GCA131.1U is a spring return rotary damper actuator designed for controlling HVAC dampers. It operates at twenty-four volts AC or DC and provides up to 160 lb-in of torque. This actuator is suitable for digital and analog control of ventilation systems.

• Brushless DC motor technology ensures efficient operation.
• Bi-directional fail-safe spring return mechanism enhances safety.
• Self-centering shaft coupling for reliable performance.

Product Highlights

The GCA131.1U actuator is ideal for use in both constant and variable air volume applications. It features a manual override for added control during power outages.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• MPN: GCA131.1U

Technical Specifications

• Torque: 160 lb-in (18 Nm)
• Voltage: 24 VAC/DC
• Dimensions: 11.81 inches x 3.94 inches x 2.69 inches
• Weight: 5.78 pounds
• Control Type: Floating control
• Run Time: 90 seconds
• Certification: CE/CUL
