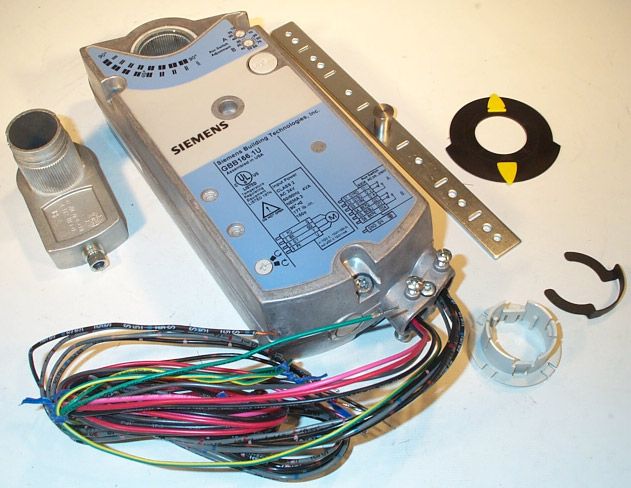

Siemens GBB166.1U Direct Coupled Actuator 24V - 221 in-lb

Product Description

The Siemens GBB166.1U is a direct coupled actuator designed for modulating control in HVAC systems. It functions with a power supply of twenty-four volts alternating current and features a torque capacity of two hundred twenty-one inch-pounds.

• Non-spring return design for consistent functionality
• Durable all-metal housing for long-term use
• Manual override for operational flexibility

Product Highlights

This actuator comes with a unique self-centering shaft coupling and built-in feedback, ensuring precise operation. It is suitable for a variety of HVAC applications, including controlling dampers in heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: GBB166.1U

Technical Specifications

• Power Consumption: 7 VA
• Auxiliary Switches: Dual
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Standard Cable
• NEMA Rating: NEMA 2, IP54
• Runtime: 150 Sec
• Fail Safe Mode: Non-Spring Return
