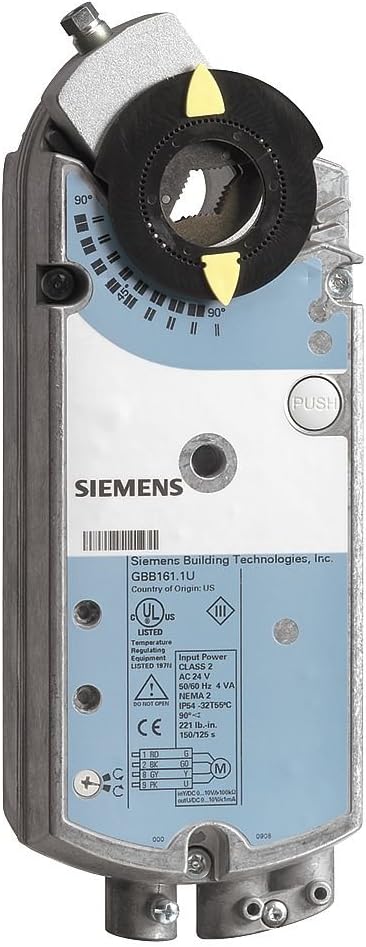

Siemens GBB161.1U Modulating Non-Spring Return Electric Damper Actuator 24V

Product Description

The Siemens GBB161.1U Modulating Non-Spring Return Electric Damper Actuator is engineered to provide precise control over your building's HVAC damper systems. This 24V actuator is ideal for modulating airflow in various installations, ensuring efficient operation.

• High-torque output up to 221 lb-in for robust performance
• Non-spring return mechanism ensures reliable operation and longevity
• Simple installation with a direct-coupled design

Product Highlights

The Siemens GBB161.1U features a unique self-centering shaft coupling, allowing for quick adjustments and maintenance. Its robust metal housing is designed to withstand the demanding environments of commercial HVAC systems.

Product Information

Standard Information

• Brand: Siemens
• Model: GBB161.1U

Technical Specifications

• Torque: 221 lb-in
• Voltage: 24V
• Dimensions: 11.81 x 3.94 x 2.69 inches
• Weight: 5.14 pounds
• Control Signal: 0 to 10 VDC
• Operating Temperature: -25 to 130 Degrees Fahrenheit
